Saab 9000 1990-1993 Engine

Group 2 Engine, section 2240

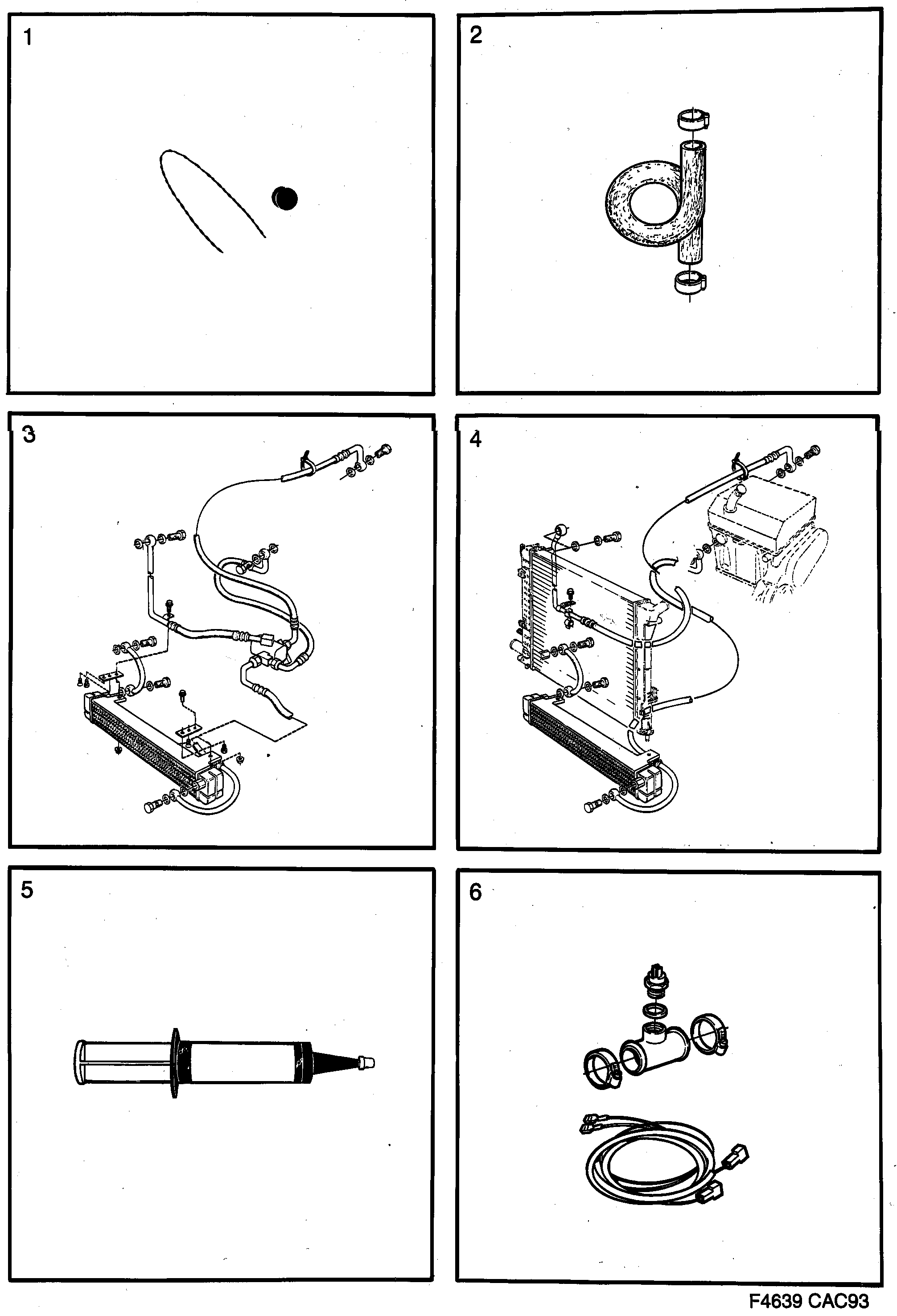

Saab 9000 Engine diagram

Pos	Article	Part No.
1	Sealing kit	9185489 (replaces 8818569)
	Seal	9168352
2	Hose	4020848
	Hose	4019998
	Hose clamp	7968308
3	Oil cooler kit	7554538
	Oil cooler	7598311
	Hydraulic hose	7559537
	Bracket	7570757
	Hydraulic hose	7573744
	O-ring	7977580
	Hydraulic hose	7573751
	Hydraulic hose	7573769
	Thermostat	7573777
	Hydraulic hose	7577356
	Tie strap	30507607 (replaces 7593221)
	Screw	7965544
	Nut	11900428 (replaces 7971658)
	Screw	7399603
	Screw	8056004
	Seal	4161162 (replaces 8981961)
	Banjo screw	12773569 (replaces 9301532)
	Banjo bolt	12773569 (replaces 8322927)
3	Oil cooler kit	7554546
	Hydraulic hose	7570823
	Hydraulic hose	7577364
4	Oil cooler kit	4028858
	Hydraulic hose	4028874
	Hydraulic hose	4284279 (replaces 4028890)
	Clamp	7398464
	Screw	7399611
	Nut	92153044 (replaces 7974298)
4	Oil cooler kit	4028866
	Hydraulic hose	4028882
5	Flange sealant	90297970
6	Temperature gauge	8547853
	Tube	7576960
	Hose clamp	7970114
	Seal	8330268
	Cable harness	4433306
	Thermo contact	4086716
	Diode	4432969
