Saab 9000 1994-1998 Pre-heating Throttle body

Group 2 Engine, section 2100

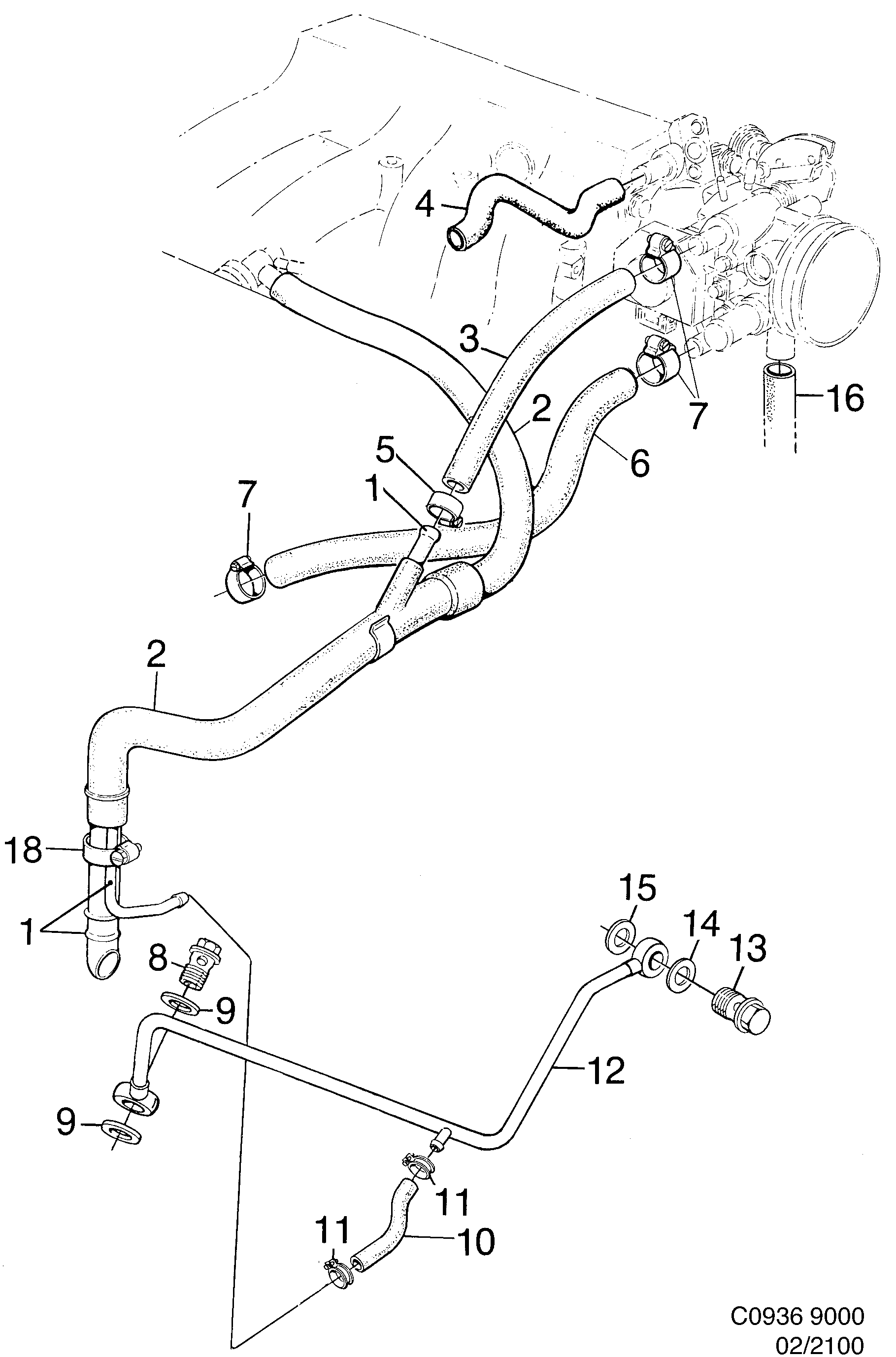

Saab 9000 Pre-heating Throttle body diagram

Pos	Article	Part No.
1	Tube	9134487
2	Hose	7519697
3	Hose	7519531
5	Hose clamp	90530642 (replaces 8359275)
6	Hose	9106998
7	Hose clamp	90572589 (replaces 7963515)
8	Screw	7583628
9	Gasket	8124158
10	Hose	30520450 (replaces 9116765)
11	Hose clamp	7968308
12	Tube	9137860
12	Tube	9137944
13	Banjo screw	90490325 (replaces 9143967)
14	Gasket	92150435 (replaces 8124141)
15	Seal	4161162 (replaces 8326712)
18	Hose clamp	7970064 (replaces 7963523)
