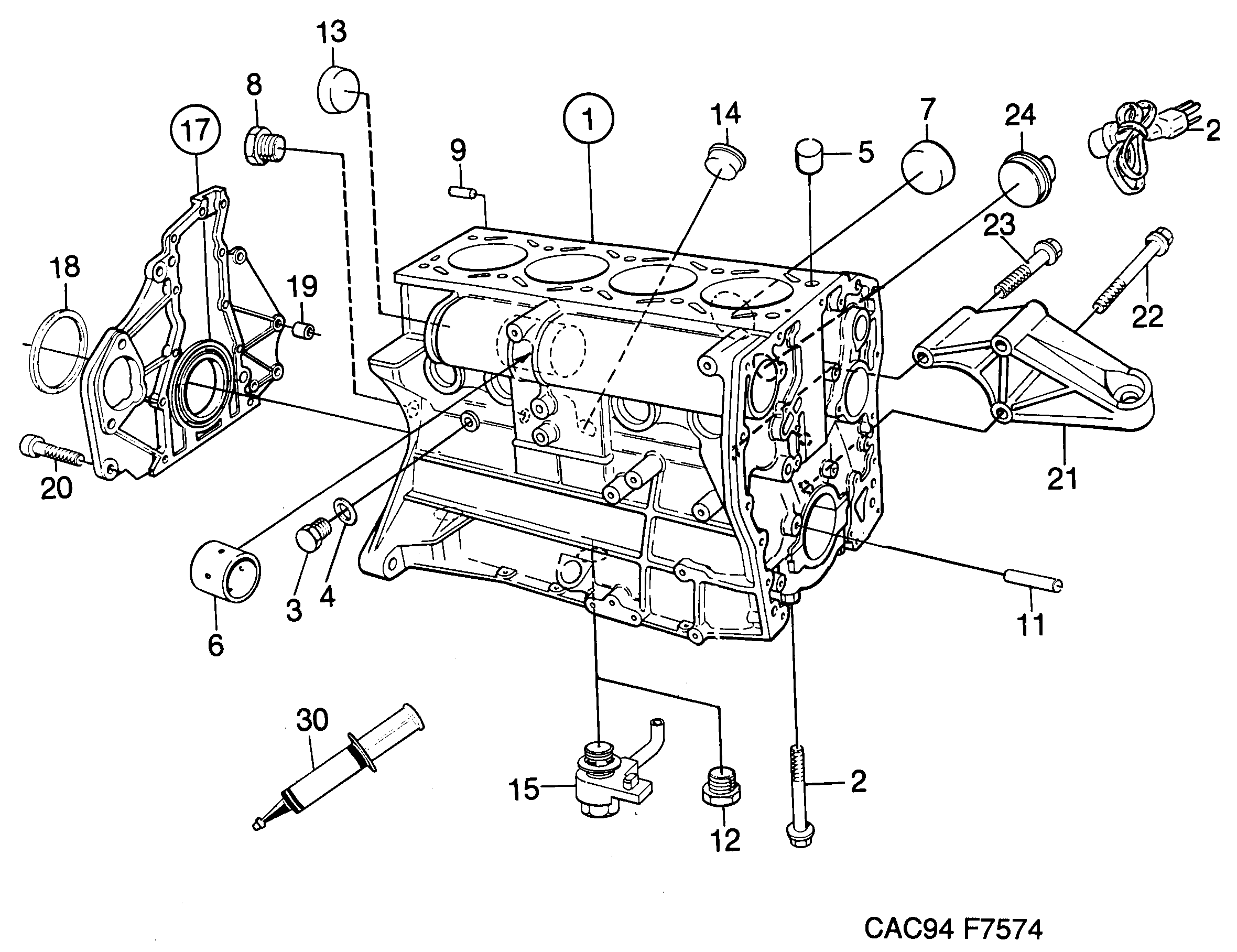

Group 2 Engine, section 210
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cylinder block | 9139320 |
| 1 | Cylinder block | 9186636 |
| 1 | Cylinder block | 9139338 |
| 1 | Cylinder block | 9186628 |
| 2 | Screw | 9128687 |
| 3 | Plug | 7563042 |
| 4 | Gasket | 92150435 (replaces 8124141) |
| 5 | Guide | 8346470 |
| 6 | Bushing | 7588684 |
| 6 | Bushing | 9172230 |
| 7 | Sealing washer | 7985120 |
| 8 | Plug | 8348047 |
| 9 | Guide | 7585052 |
| 11 | Pin | 7950066 |
| 12 | Plug | 30520417 (replaces 9115049) |
| 13 | Sealing washer | 92151501 (replaces 8123259) |
| 14 | Sealing washer | 8123218 |
| 15 | Piston cooling jet | 9167677 |
| 17 | Plate | 55557715 (replaces 9138470) |
| 17 | Plate | 55557715 (replaces 9174194) |
| 18 | Seal | 55557240 (replaces 8787764) |
| 18 | Seal | 55557240 (replaces 9175902) |
| 18 | Seal | 55557240 (replaces 9174202) |
| 19 | Guide sleeve | 9129800 |
| 20 | Screw | 55560366 (replaces 4087235) |
| 20 | Screw | 11900354 (replaces 7978109) |
| 21 | Bracket | 9117557 |
| 22 | Screw | 92151523 (replaces 7982564) |
| 23 | Hexagon screw | 7982598 |
| 24 | Engine heater | 4725883 |
| 25 | Extension cable | 4397311 |
| 30 | Flange sealant | 90297970 |
