Saab 9000 1990-1993 Accelerator control

Group 2 Engine, section 2090

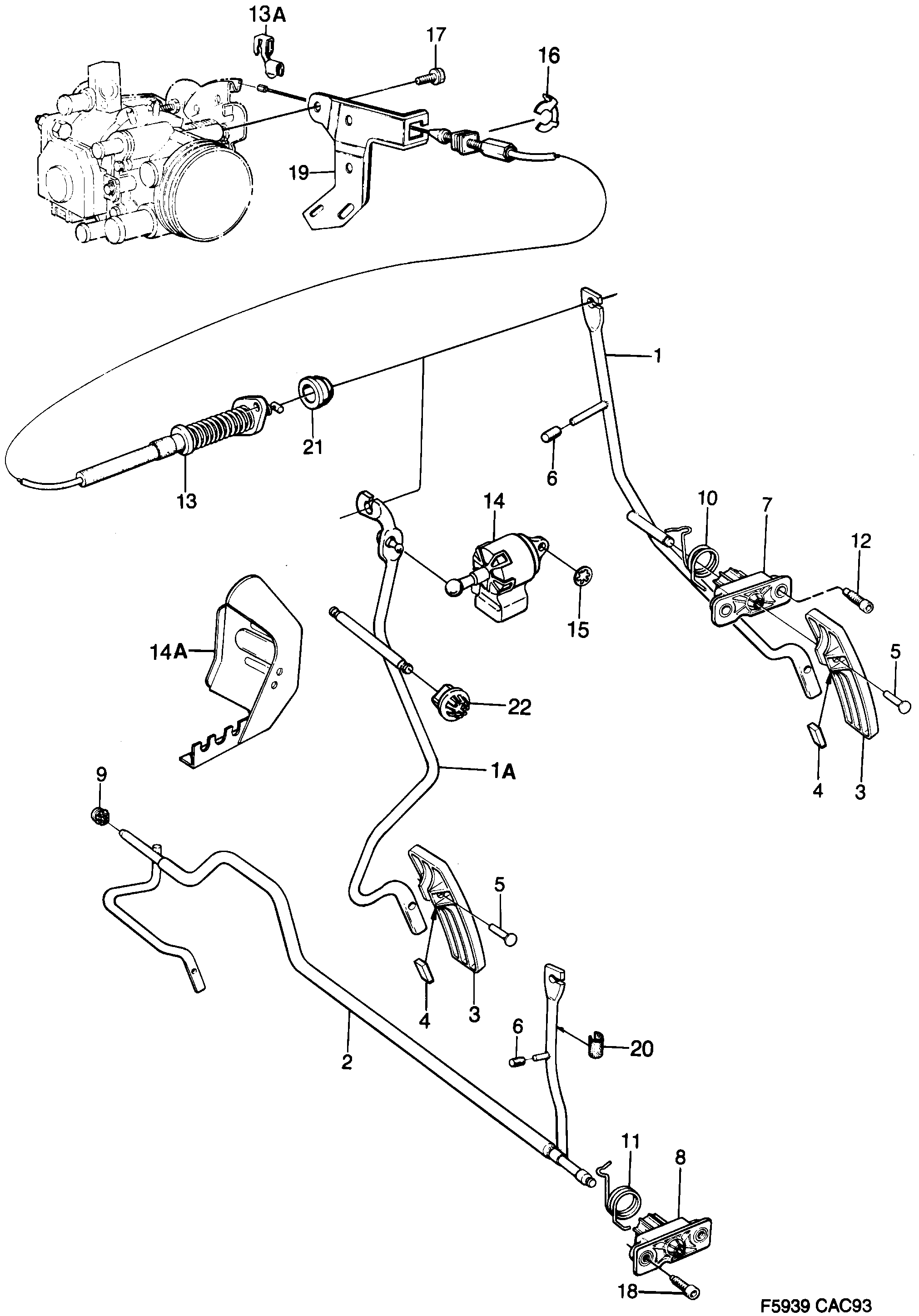

Saab 9000 Accelerator control diagram

Pos	Article	Part No.
1	Pedal	8967903
1A	Accelerator arm	4000386
2	Pedal	8972176
2	Accelerator arm	4105276
3	Pedal plate	7183965
4	Spacer	7183973
5	Rivet	7958770
6	Absorber	8950396
7	Bearing center	8960924
9	Plastic bushing	8957565
10	Spring	8960080
10	Spring	8965949
12	Screw	8961195
13	Cable	7536444
13	Throttle control cable	4018289
13	Throttle control cable	8980922
13A	Clamp	4018172
13	Cable	4160248
13	Throttle control cable	4018263
13	Throttle control cable	4161907
13	Throttle control cable	4022737
13	Throttle control cable	4018313
13	Cable	7536451
13	Throttle control cable	4018297
13	Throttle control cable	4018271
13	Throttle control cable	4161915
14	Pedal sensor	4015194
14	Pedal sensor	4161238
14A	Protection	4426532
15	Lock ring	4015574
16	Lock ring	7533136
17	Screw	7971294
17	Screw	92153146 (replaces 7972607)
19	Bracket	7566292
19	Bracket	4391553
19	Bracket	7482300
19	Bracket	9126939
19	Bracket	4391561
20	Absorber	4190021
21	Bushing	7536501
22	Plastic bushing	8933392
