Saab 9000 1990-1993 Thermostat, etc

Group 2 Engine, section 2060

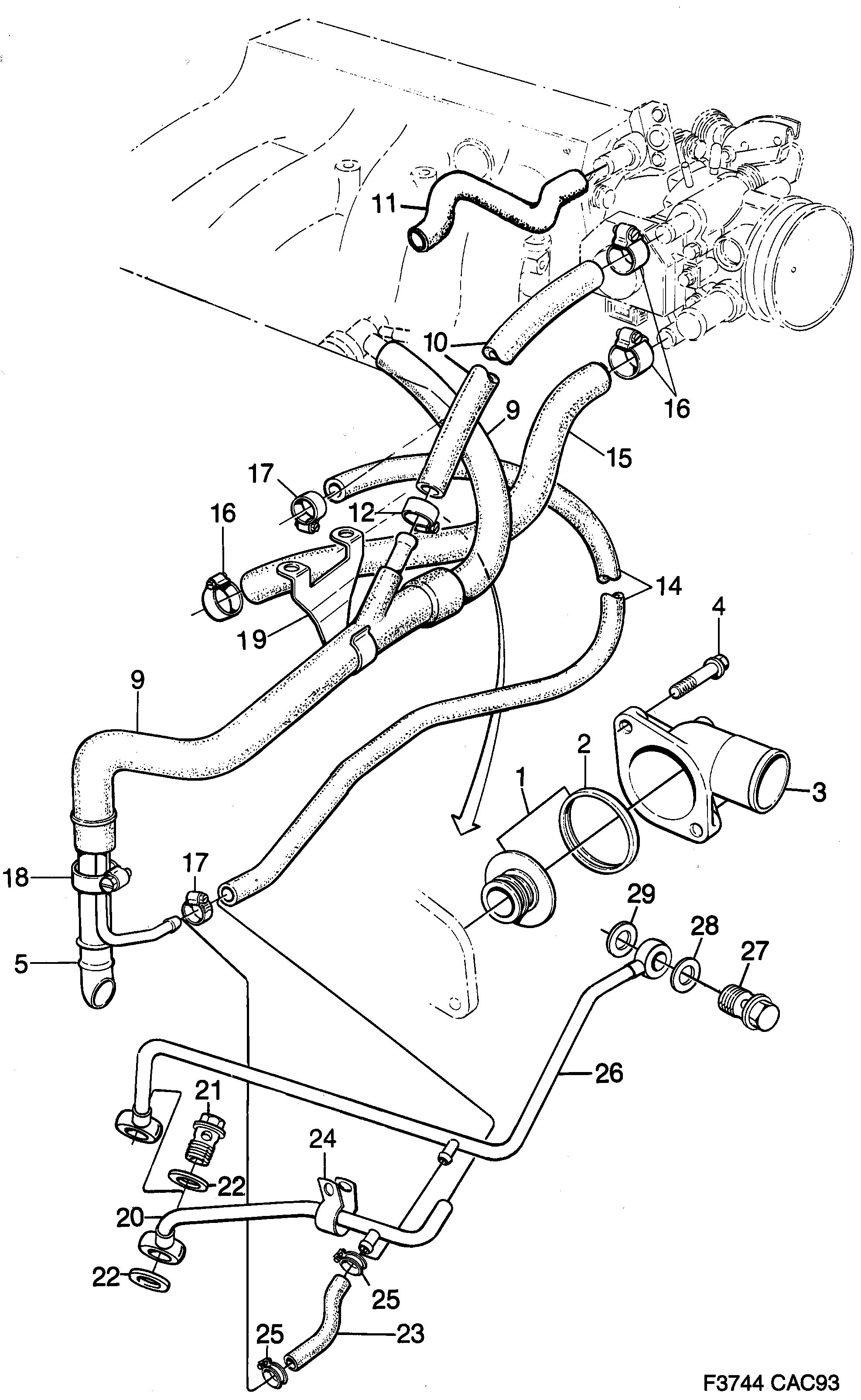

Saab 9000 Thermostat, etc diagram

Pos	Article	Part No.
1	Thermostat kit	30577561 (replaces 8817298)
1	Thermostat kit	8817538
2	Gasket	9176165 (replaces 8352692)
3	Cover	9117508
4	Screw	8125189
5	Tube	7588551
5	Tube	9134487
9	Hose	7561756
9	Hose	7519697
10	Hose	7520018
10	Hose	7519531
10	Hose	7520034
10	Hose	7873045
11	Hose	8786568
11	Hose	9107640
12	Hose clamp	90572589 (replaces 7963515)
12	Hose clamp	90530642 (replaces 8359275)
14	Hose	7520026
14	Hose	7567514
15	Hose	9117607
15	Hose	9107632
15	Hose	9106998
16	Hose clamp	4087649
18	Hose clamp	7970064 (replaces 7963523)
19	Bracket	30539192 (replaces 7519788)
19	Bracket	30539192 (replaces 9125832)
20	Tube	9116369
20	Tube	9114489
21	Screw	7583628
22	Gasket	8124158
23	Hose	30520450 (replaces 9116765)
24	Clamp	7583461
25	Hose clamp	7968308
26	Tube	9114109
26	Tube	9138744
26	Tube	9138785
27	Banjo screw	92150977 (replaces 8123903)
28	Gasket	92150435 (replaces 8124141)
29	Seal	4161162 (replaces 8326712)
