Saab 9000 1990-1993 Coolant pump

Group 2 Engine, section 2030

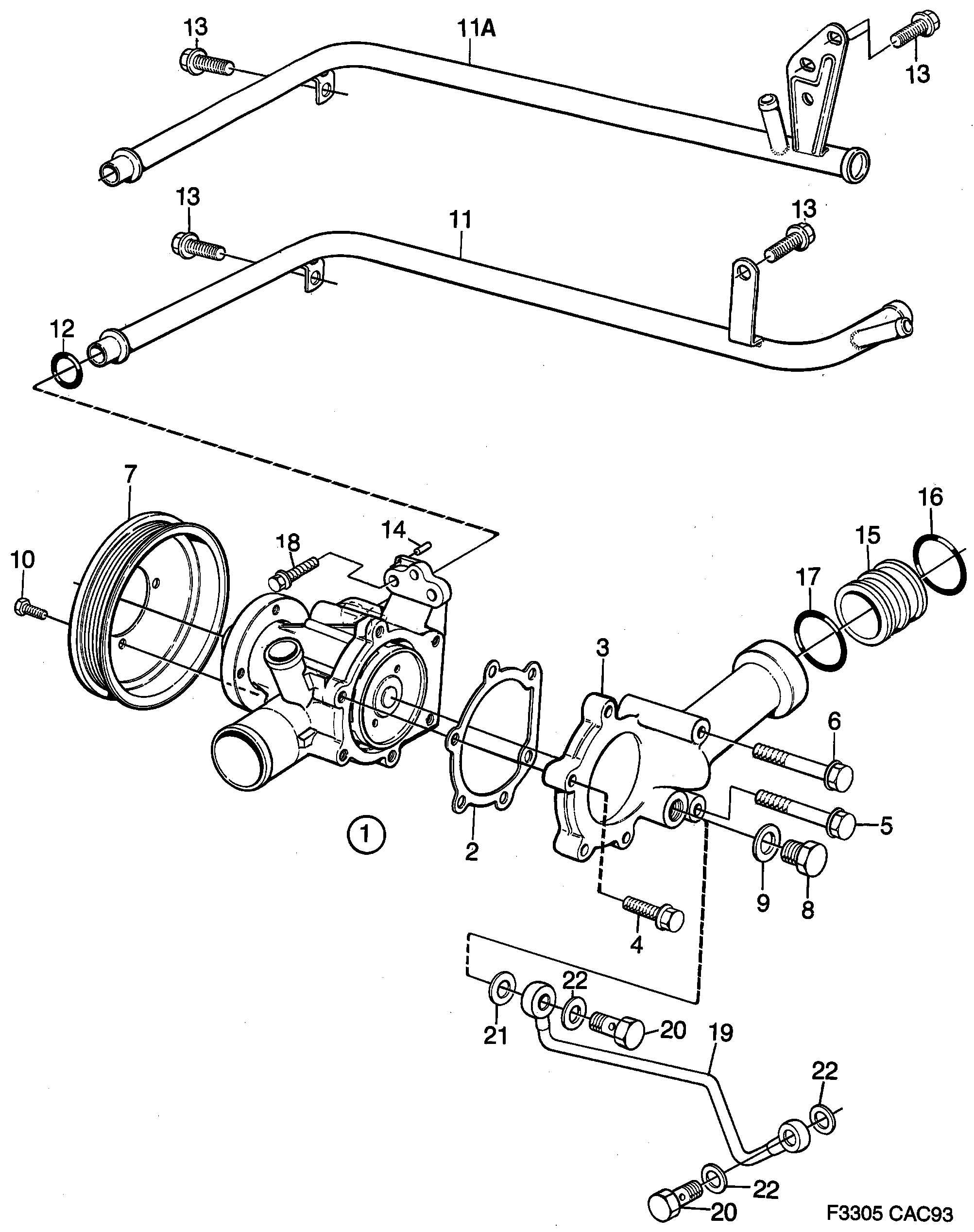

Saab 9000 Coolant pump diagram

Pos	Article	Part No.
1	Coolant pump	9321688 (replaces 8819948)
1	Coolant pump	9321688
2	Gasket	9113325
3	Bracket	9114265
4	Screw	8125189
5	Screw	8125247
6	Screw	7985062 (replaces 8125270)
7	Pulley	7565104
8	Plug	7563042 (replaces 8123721)
9	Gasket	7522709
10	Screw	7985930 (replaces 8019903)
11	Tube	9113358
11A	Tube	30551951 (replaces 7858921)
12	O-ring	9146598 (replaces 7972698)
13	Screw	8125007
13	Screw	8129892
14	Tube	7918337 (replaces 8049405)
14	Tube	7918337
15	Tube	9113341
16	O-ring	55562943 (replaces 8046674)
17	O-ring	30551915 (replaces 8046682)
18	Screw	8125197
19	Tube	30539180 (replaces 9114083)
19	Tube	9137928
20	Banjo screw	92150977 (replaces 8123903)
20	Banjo screw	90490324 (replaces 9136524)
21	Seal	4161162 (replaces 8326712)
22	Gasket	92150435 (replaces 8124141)
22	Gasket	11066422 (replaces 8124133)
