Saab 9000 1990-1993 Coolant pump

Group 2 Engine, section 2000

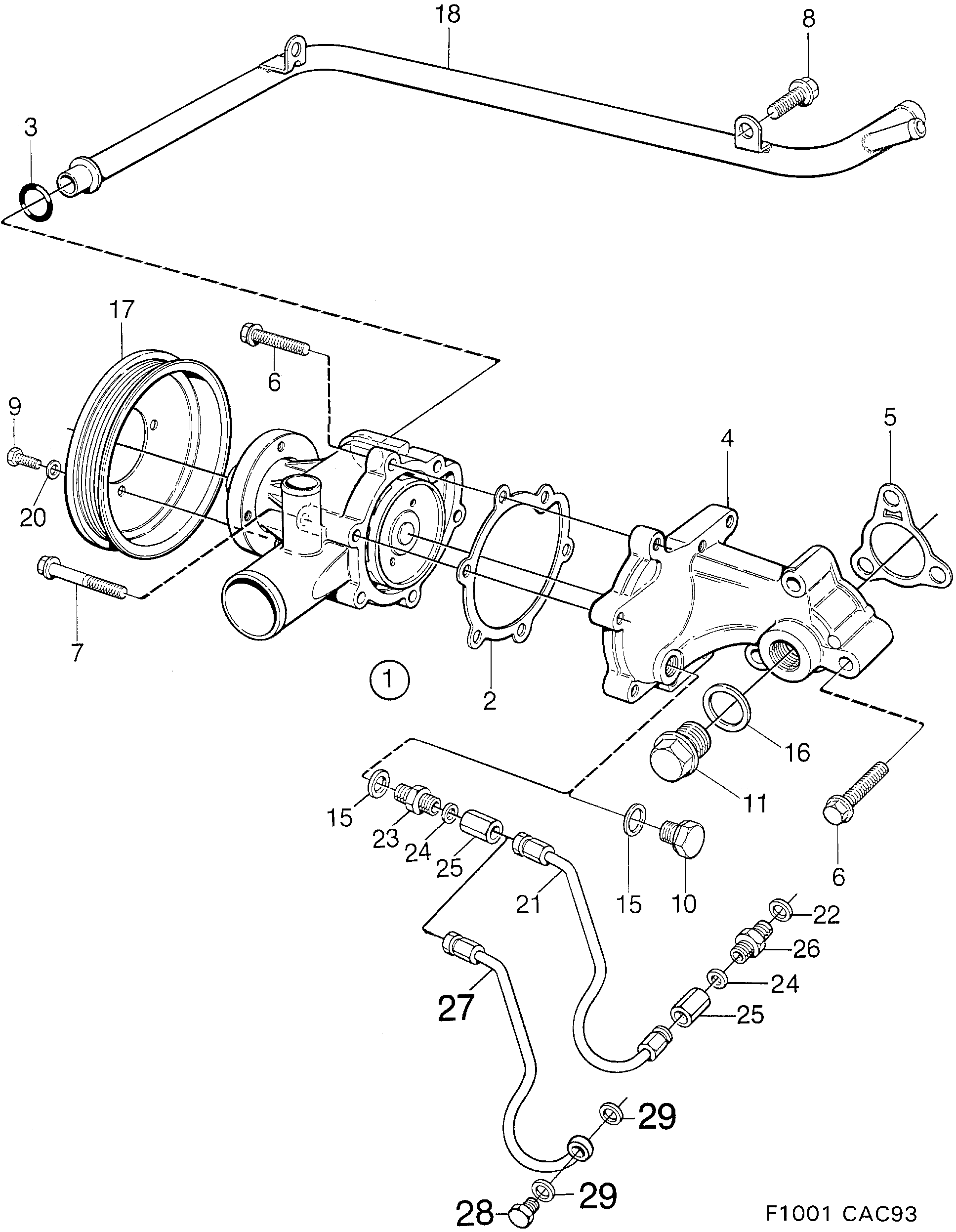

Saab 9000 Coolant pump diagram

Pos	Article	Part No.
1	Coolant pump	9321670 (replaces 8817918)
1	Coolant pump	9321670
2	Gasket	7566581
3	O-ring	9146598 (replaces 7972698)
4	Bracket	7507247
5	Gasket	7523897
6	Screw	8125197
7	Screw	8125239
8	Screw	8125148
9	Screw	7985930 (replaces 8019903)
10	Plug	7563042 (replaces 8123721)
11	Plug	8123788
15	Gasket	92150435 (replaces 8124141)
16	Gasket	9116856 (replaces 8124208)
17	Pulley	9359985
18	Tube	7585565
20	Washer	8073223
20	Washer	9166380
21	Tube	7582299
22	Gasket	8124158
23	Nipple	7587785
24	Ferrule	8132227
25	Nut	8145542
26	Nipple	7584790
27	Tube	9128018 (replaces 9114463)
27	Tube	9128018
28	Banjo screw	92150977 (replaces 8123903)
