Saab 9000 1990-1993 Cylinder block

Group 2 Engine, section 200

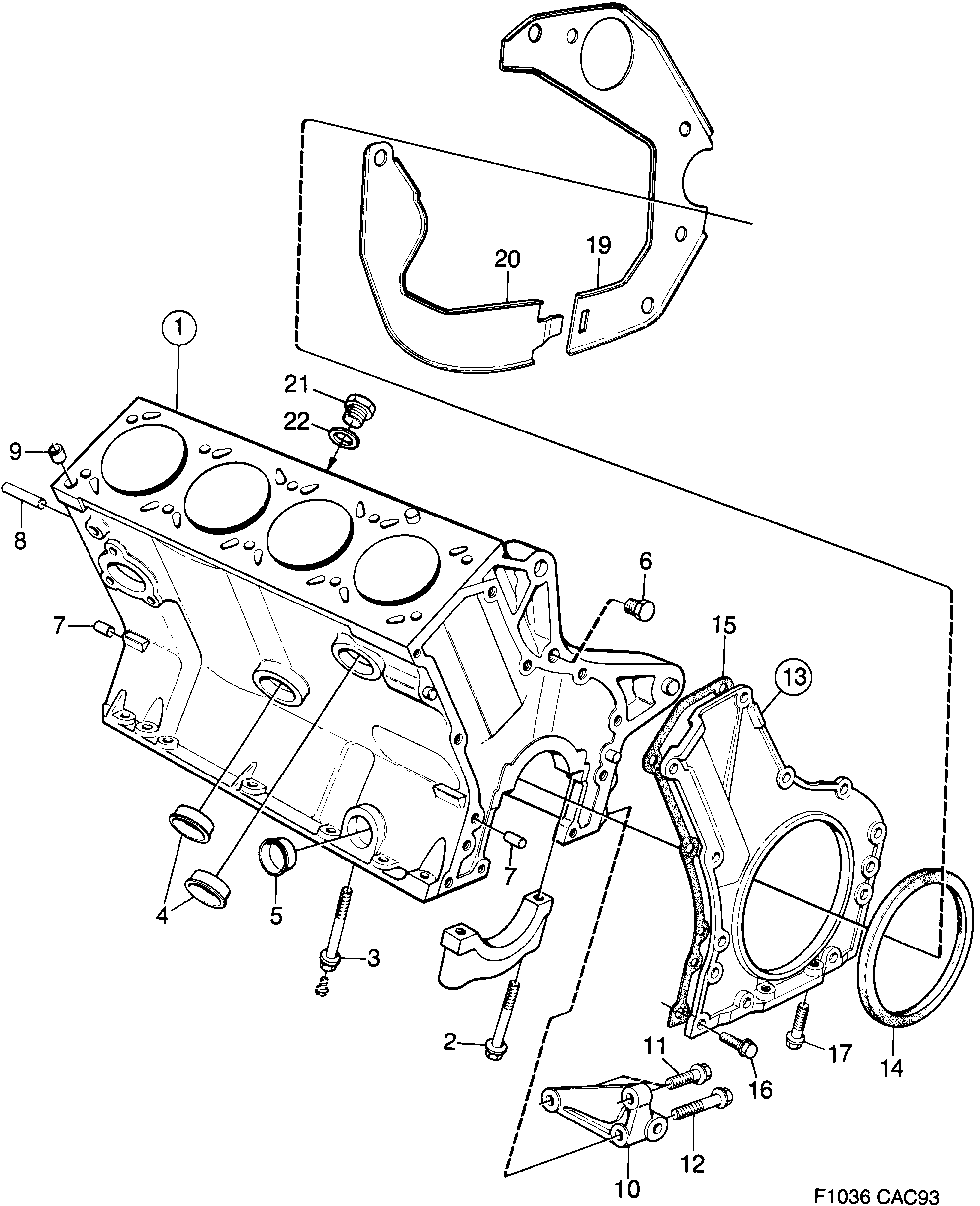

Saab 9000 Cylinder block diagram

Pos	Article	Part No.
1	Cylinder block	7516859
2	Screw	9128687 (replaces 8352502)
3	Screw	9308537
4	Sealing washer	32000339 (replaces 9116757)
5	Sealing washer	7588320
6	Plug	8348047
7	Guide	8366007
8	Pin	8034761
9	Guide	8346470
10	Bracket	9357203
11	Screw	8125205
12	Screw	8125262
13	Plate	7516248
14	Seal	55557240 (replaces 9350158)
14	Seal	55557240 (replaces 8787764)
15	Gasket	7563679
15	Flange sealant	90297970
16	Screw	8125163
17	Screw	8125189
19	Baffle	9388653
19	Baffle	9389990
20	Baffle	9388661
21	Plug	7563042 (replaces 8123721)
22	Gasket	92150435 (replaces 8124141)
