Saab 9000 1994-1998 Coolant pump 4-cylinder

Group 2 Engine, section 1980

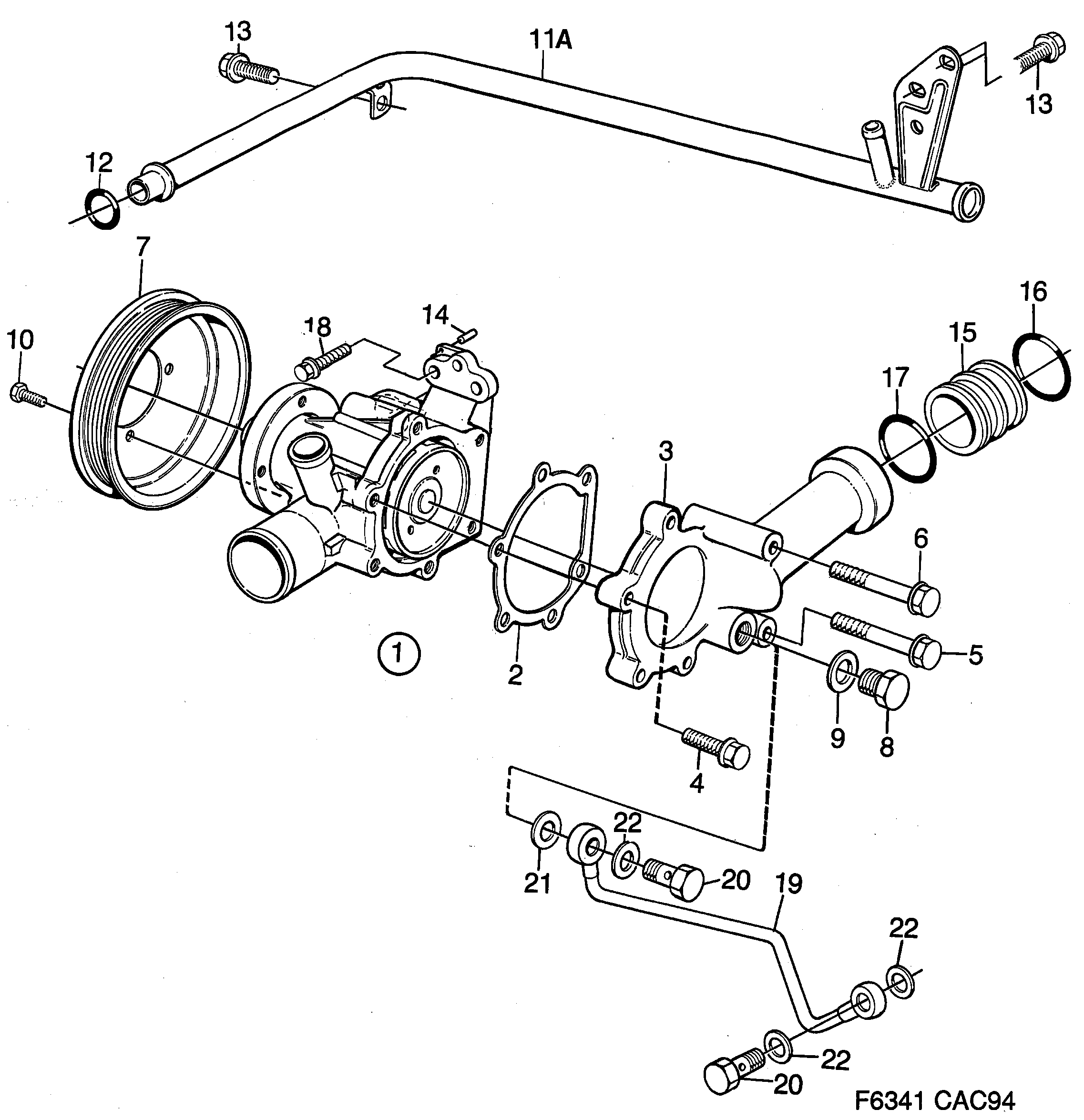

Saab 9000 Coolant pump 4-cylinder diagram

Pos	Article	Part No.
1	Coolant pump	9321688
2	Gasket	9113325
3	Bracket	9114265
4	Screw	8125189
4	Screw	7970288
5	Screw	8125247
5	Screw	30509216 (replaces 7975238)
6	Screw	7985062 (replaces 8125270)
6	Screw	7985062
7	Pulley	7565104
8	Plug	7563042 (replaces 8123721)
9	Gasket	7522709
10	Screw	7985930 (replaces 9166281)
10	Screw	7985930 (replaces 8125015)
11A	Tube	30551951 (replaces 9149766)
12	O-ring	30551913
13	Screw	7971294
14	Tube	7918337
15	Tube	9137514
16	O-ring	55562943 (replaces 9146606)
17	O-ring	30551915 (replaces 9146614)
18	Screw	11900367 (replaces 8059800)
18	Hexagon screw	11900367 (replaces 7978216)
19	Tube	9146184
19	Tube	9145897
20	Banjo screw	90490324 (replaces 9136524)
21	Seal	4161162 (replaces 8326712)
22	Gasket	11066422 (replaces 8124133)
