Saab 9000 1990-1993 Air oil cooler Aut. transmission

Group 2 Engine, section 1970

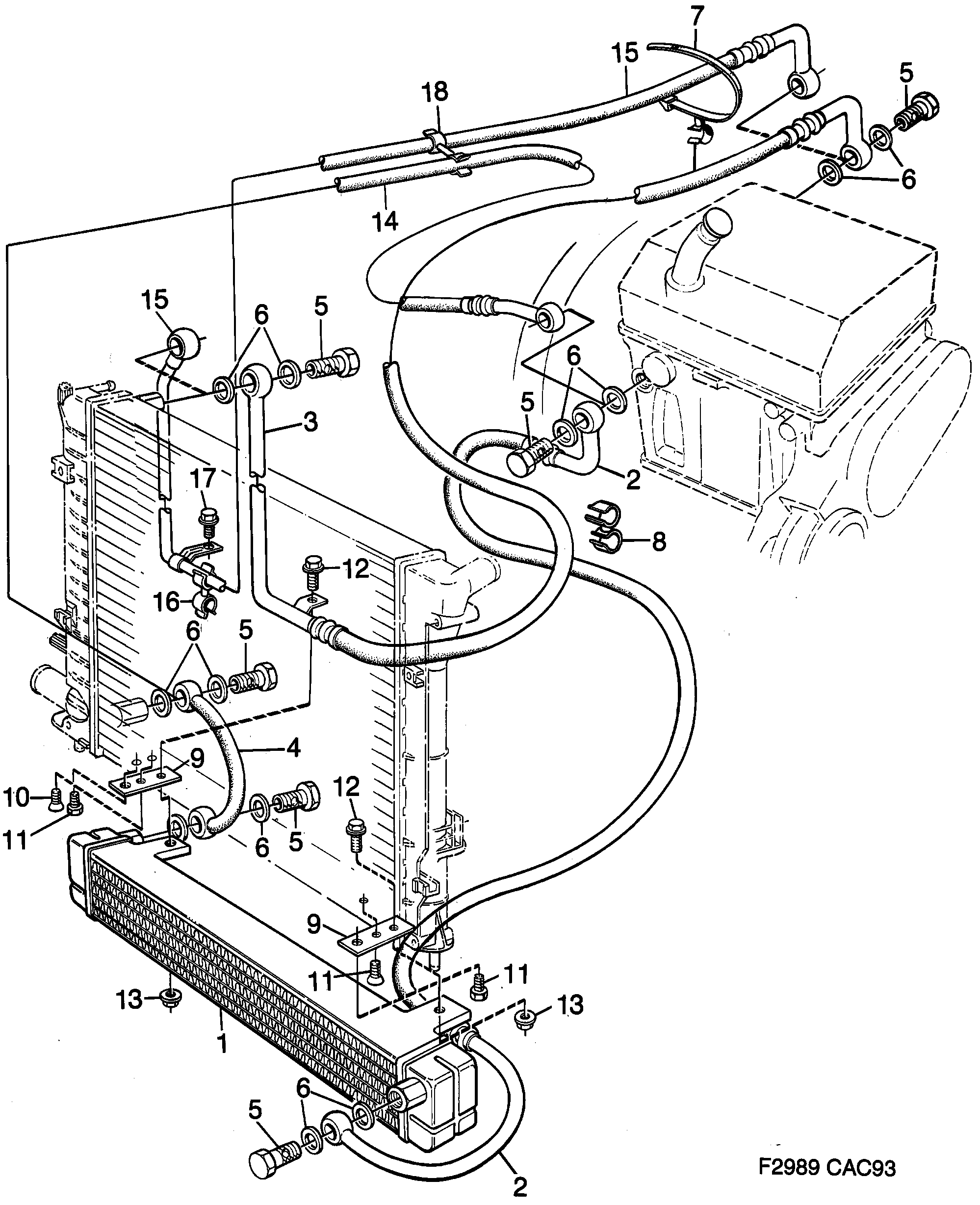

Saab 9000 Air oil cooler Aut. transmission diagram

Pos	Article	Part No.
1	Oil cooler	7598311
2	Hydraulic hose	4284279 (replaces 4028890)
2	Hydraulic hose	4284279
2	Hydraulic hose	4357604
3	Hydraulic hose	4028882
3	Hydraulic hose	4028874
4	Hydraulic hose	7570823
4	Hydraulic hose	7559537
5	Banjo screw	12773569 (replaces 9301532)
5	Banjo bolt	12773569 (replaces 8322927)
6	Seal	4161162 (replaces 8981961)
6	Seal	4161162
7	Tie strap	30507607 (replaces 7593221)
8	Clamp	7398464
9	Bracket	7570757
10	Screw	7399611
11	Screw	7399603
12	Screw	7965544
13	Nut	92153044 (replaces 7974298)
14	Hydraulic hose	4029344
14	Hydraulic hose	4029336
15	Hydraulic hose	4029310
15	Hydraulic hose	4029328
16	Clip	92152223 (replaces 7559768)
17	Screw	7969223
	Oil cooler kit	4028858
	Oil cooler kit	4028866
