Saab 9000 1994-1998 Air oil cooler Automatic transmission

Group 2 Engine, section 1950

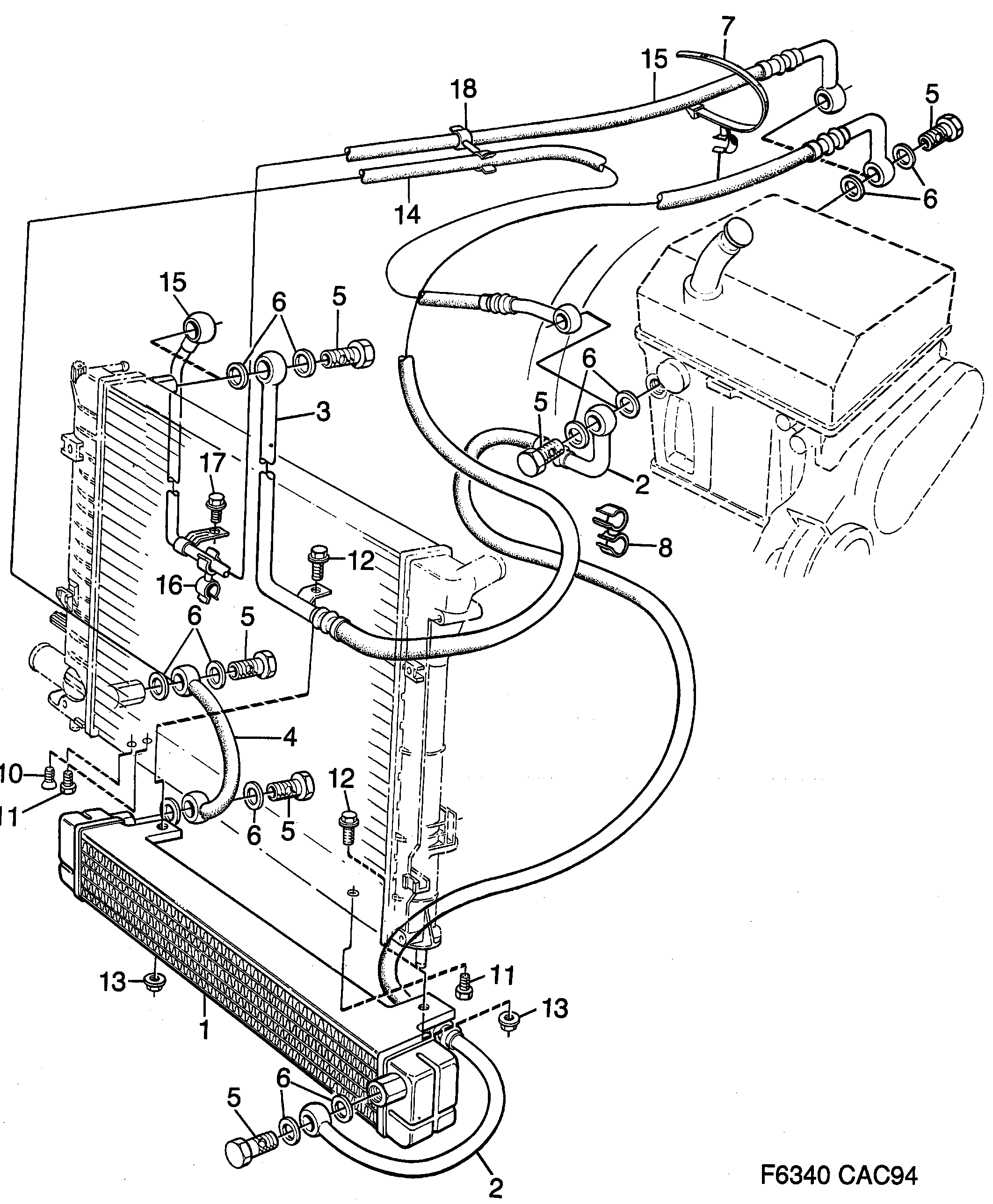

Saab 9000 Air oil cooler Automatic transmission diagram
PosArticlePart No.
1Oil cooler7598311
2Hydraulic hose4357604
3Hydraulic hose4028882
3Hydraulic hose4356267
4Hydraulic hose7570823
5Banjo bolt12773569 (replaces 8322927)
5Banjo bolt12773569 (replaces 4374211)
6Seal4161162
7Tie strap30507607 (replaces 7593221)
8Clamp7398464
8Tube clamp4249108
12Screw7965544
13Nut92153044 (replaces 7974298)
14Hydraulic hose4029344
16Clip92152223 (replaces 7559768)
Oil cooler kit4028866
