Saab 9000 1990-1990 Air oil cooler Aut. transmission

Group 2 Engine, section 1940

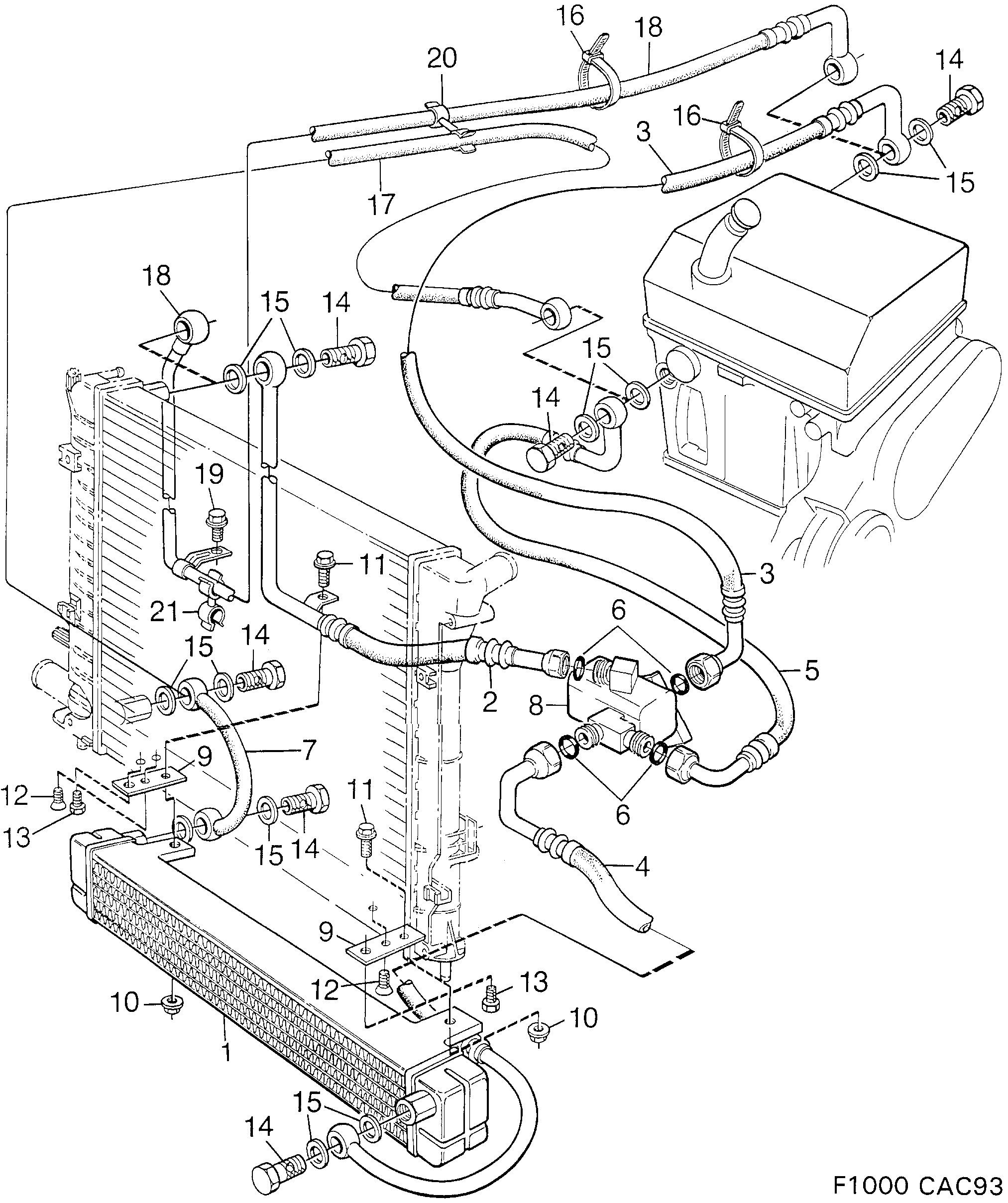

Saab 9000 Air oil cooler Aut. transmission diagram

Pos	Article	Part No.
1	Oil cooler	7598311
2	Hydraulic hose	7577356
2	Hydraulic hose	7577364
3	Hydraulic hose	4029294
4	Hydraulic hose	4029302
5	Hydraulic hose	4029286
6	O-ring	7977580
7	Hydraulic hose	7559537
7	Hydraulic hose	7570823
8	Thermostat	7573777
9	Bracket	7570757
10	Nut	92153044 (replaces 7974298)
11	Screw	7965544
12	Screw	7399611
13	Screw	7399603
14	Banjo screw	12773569 (replaces 9301532)
15	Seal	4161162 (replaces 8981961)
16	Tie strap	30507607 (replaces 7593221)
17	Hydraulic hose	4029344
17	Hydraulic hose	4029336
18	Hydraulic hose	4029310
18	Hydraulic hose	4029328
19	Screw	7969223
20	Clamp	7398464
21	Clip	92152223 (replaces 7559768)
	Oil cooler kit	7554538
	Oil cooler kit	7554546
