Saab 9000 1994-1998 Air oil cooler Engine

Group 2 Engine, section 1920

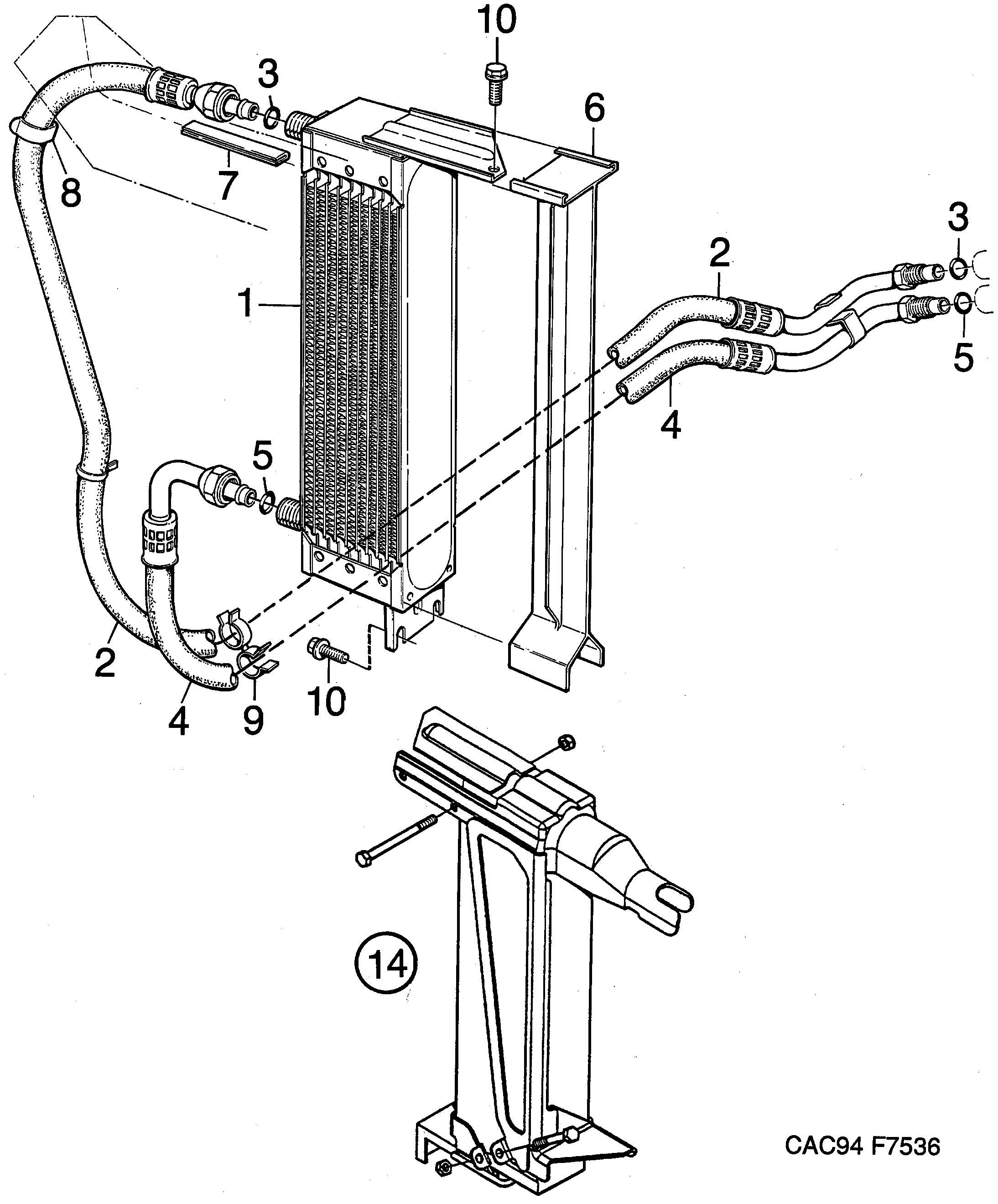

Saab 9000 Air oil cooler Engine diagram
PosArticlePart No.
1Oil cooler4029625
1Oil cooler4725867 (replaces 7596018)
1Oil cooler4725867
2Hose4395877
3O-ring30509305 (replaces 7977598)
4Hose4358453
6Cover plate7596604
7Protecting moulding8278558
7Edge protection moulding4867016
8Clamp7398894
9Clamp4028569
10Screw7971823
14Protecting casing4396347
