Saab 9000 1985-1989 Cylinder block

Group 2 Engine, section 190

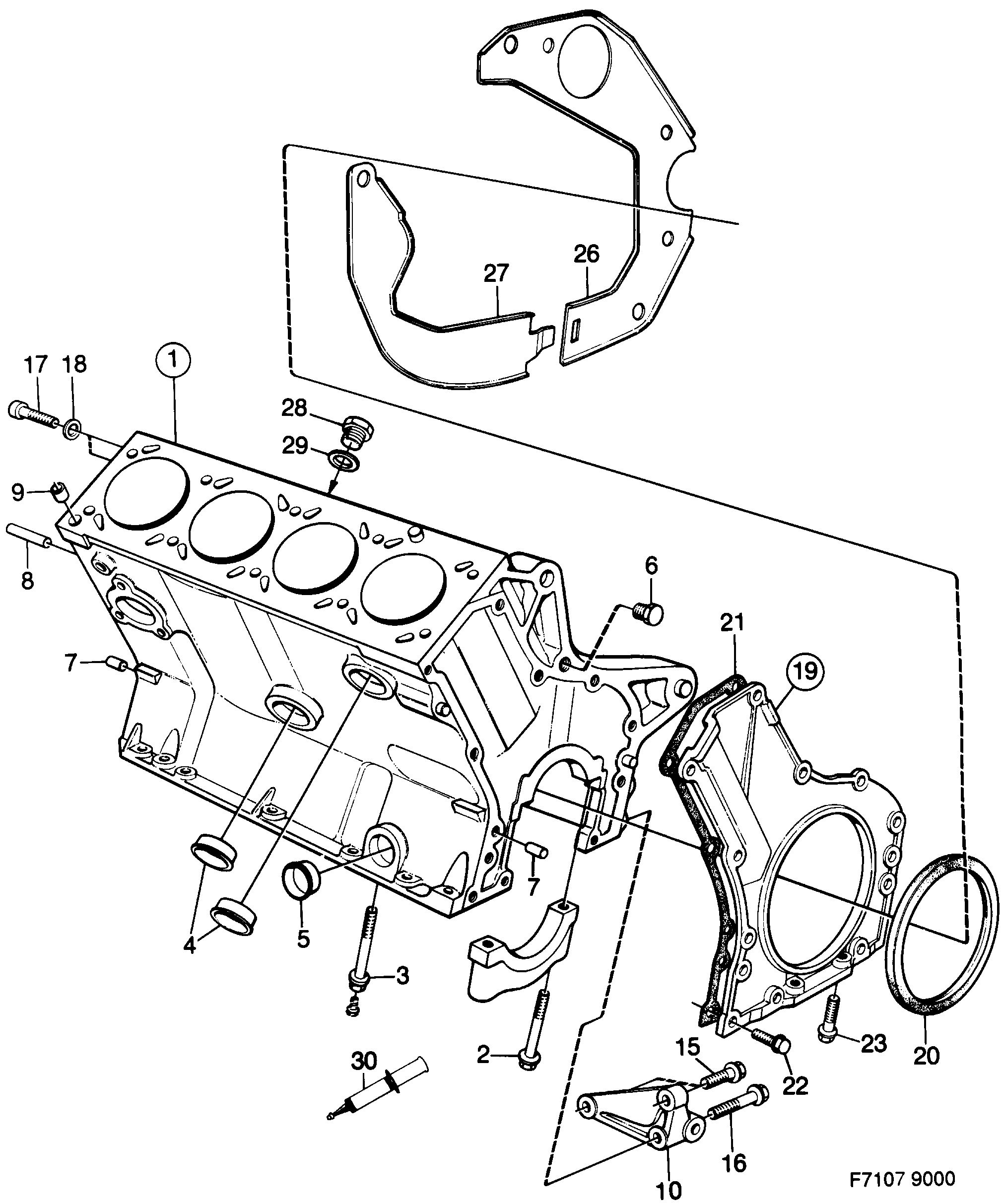

Saab 9000 Cylinder block diagram

Pos	Article	Part No.
1	Cylinder block	7516859
2	Screw	9128687 (replaces 8352502)
3	Screw	9308537
4	Sealing washer	32000339 (replaces 9116757)
4	Sealing washer	32000339 (replaces 7588338)
5	Sealing washer	8123218
5	Sealing washer	7588320
6	Plug	8348047
7	Guide	8366007
8	Pin	8034761
9	Guide	8346470
10	Bracket	9357203
15	Screw	8125205
16	Screw	8125262
17	Screw	8097867
17	Screw	8019895
18	Washer	8073223
19	Plate	7516248
20	Seal	55557240 (replaces 9350158)
21	Gasket	7563679
22	Screw	8125163
23	Screw	8125189
26	Baffle	9388653
26	Baffle	9389990
27	Baffle	9388661
28	Plug	7563042 (replaces 7564222)
28	Plug	7563042 (replaces 8123721)
29	Gasket	92150435 (replaces 8124141)
30	Flange sealant	90297970
