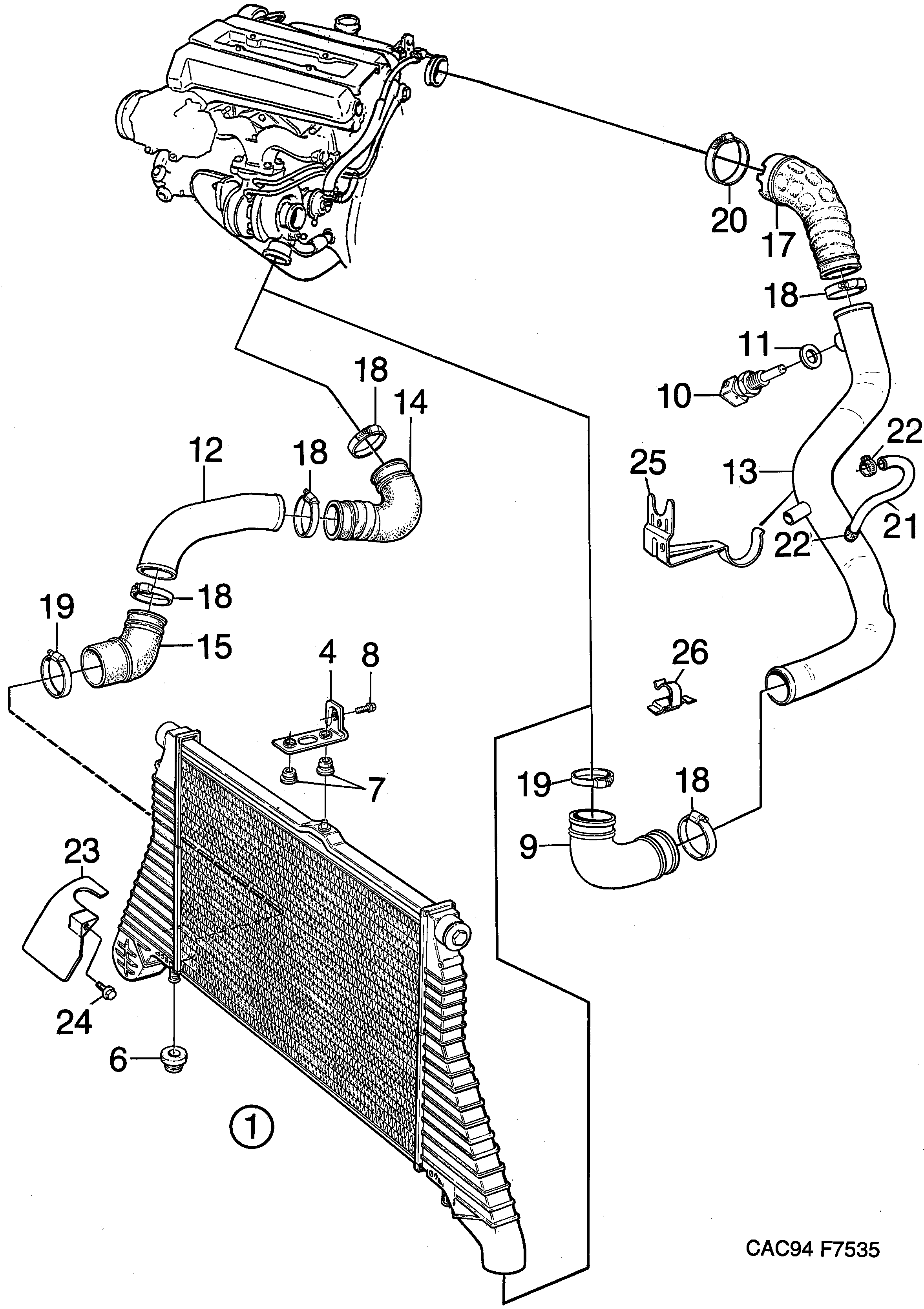

Group 2 Engine, section 1860
| Pos | Article | Part No. |
|---|---|---|
| 1 | Charge air cooler | 7596257 |
| 1 | Charge air cooler | 4396818 |
| 4 | Bracket | 7550346 |
| 6 | Rubber bushing | 4027488 |
| 7 | Rubber bushing | 7550353 |
| 8 | Screw | 7972441 |
| 9 | Hose | 8976912 |
| 9 | Hose | 4164745 |
| 10 | Intake air temperature sensor | 8859886 |
| 10 | Intake air temperature sensor | 9174442 |
| 11 | Washer | 4161261 |
| 12 | Tube | 4157038 |
| 13 | Pipe | 4390159 |
| 13 | Pipe | 4390167 |
| 13 | Pipe | 4156642 |
| 13 | Pipe | 4156451 |
| 14 | Hose | 4157020 |
| 15 | Hose | 4157046 |
| 17 | Hose | 4156444 |
| 17 | Hose | 4392577 |
| 18 | Hose clamp | 92153077 (replaces 7970130) |
| 19 | Hose clamp | 92153079 (replaces 7970148) |
| 20 | Hose clamp | 92153080 (replaces 7970155) |
| 21 | Hose | 4156345 |
| 21 | Hose | 8978652 |
| 22 | Hose clamp | 7973522 |
| 23 | Cover plate | 4028767 |
| 24 | Screw | 92153146 (replaces 7972607) |
| 25 | Holder | 4390589 |
| 26 | Clip | 9228156 |
