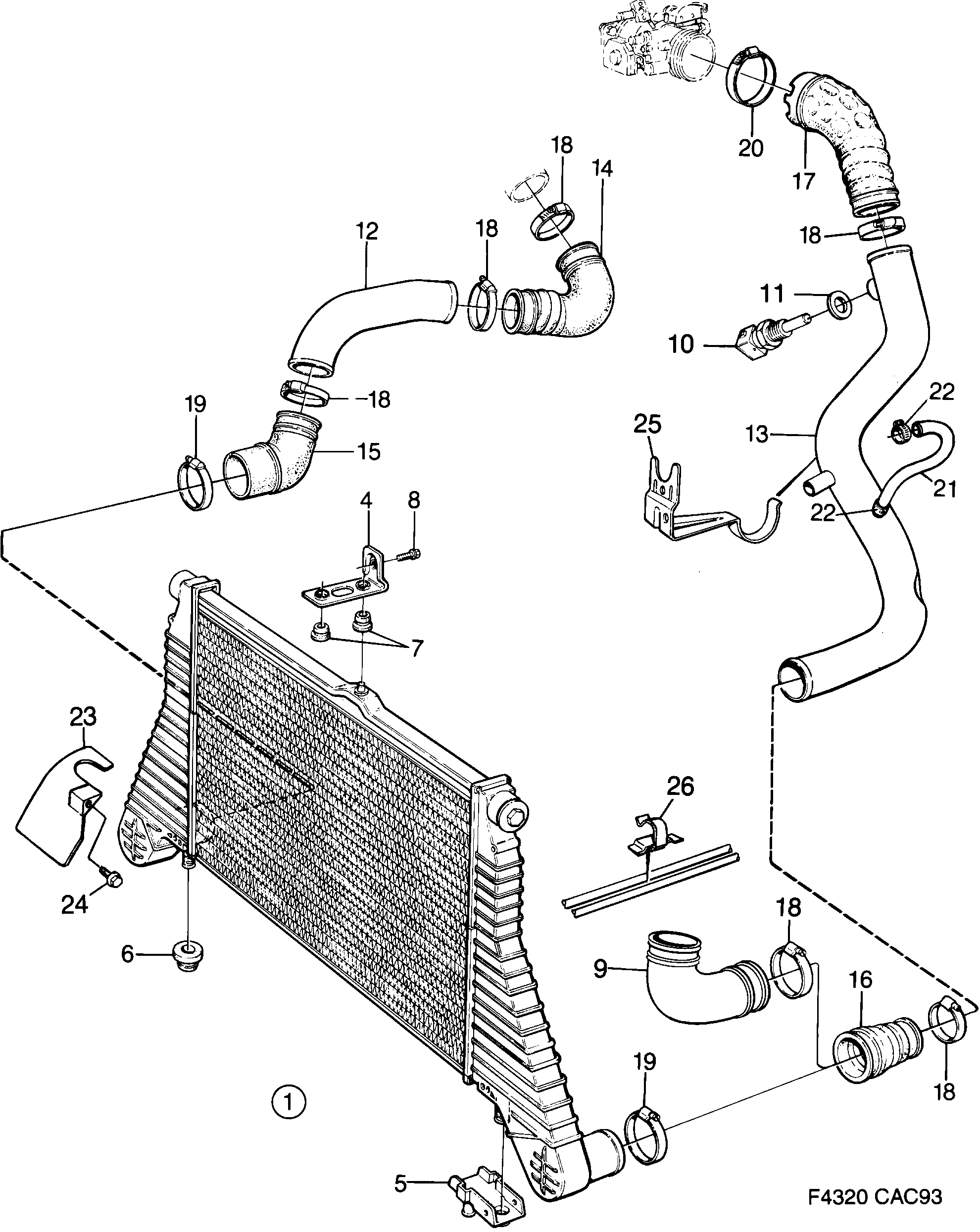

Group 2 Engine, section 1850
| Pos | Article | Part No. |
|---|---|---|
| 1 | Charge air cooler | 7559776 |
| 1 | Charge air cooler | 7596257 |
| 4 | Bracket | 7550346 |
| 5 | Bracket | 9381120 |
| 6 | Rubber bushing | 4027488 |
| 7 | Rubber bushing | 7550353 |
| 8 | Screw | 7972441 |
| 9 | Hose | 8976912 |
| 9 | Hose | 4164745 |
| 10 | Intake air temperature sensor | 8859886 |
| 11 | Washer | 4161261 |
| 12 | Tube | 9381724 |
| 12 | Tube | 4015871 |
| 12 | Tube | 4157038 |
| 13 | Pipe | 7590805 |
| 13 | Pipe | 4022398 |
| 13 | Pipe | 9390923 |
| 13 | Pipe | 4022406 |
| 13 | Pipe | 4164687 |
| 13 | Pipe | 4164695 |
| 13 | Pipe | 4156642 |
| 13 | Pipe | 4156451 |
| 14 | Hose | 9387671 |
| 14 | Hose | 4015863 |
| 14 | Hose | 4157020 |
| 15 | Hose | 9387689 |
| 15 | Hose | 4157046 |
| 16 | Hose | 9390956 |
| 17 | Hose | 9391509 |
| 17 | Hose | 4024600 |
| 17 | Hose | 4156444 |
| 18 | Hose clamp | 92153077 (replaces 7970130) |
| 19 | Hose clamp | 92153079 (replaces 7970148) |
| 20 | Hose clamp | 92153080 (replaces 7970155) |
| 21 | Hose | 9342627 |
| 21 | Hose | 4156345 |
| 21 | Hose | 8978652 |
| 22 | Hose clamp | 7973522 |
| 23 | Cover plate | 4028767 |
| 24 | Screw | 92153146 (replaces 7972607) |
| 25 | Holder | 4390589 |
| 26 | Clip | 9228156 |
