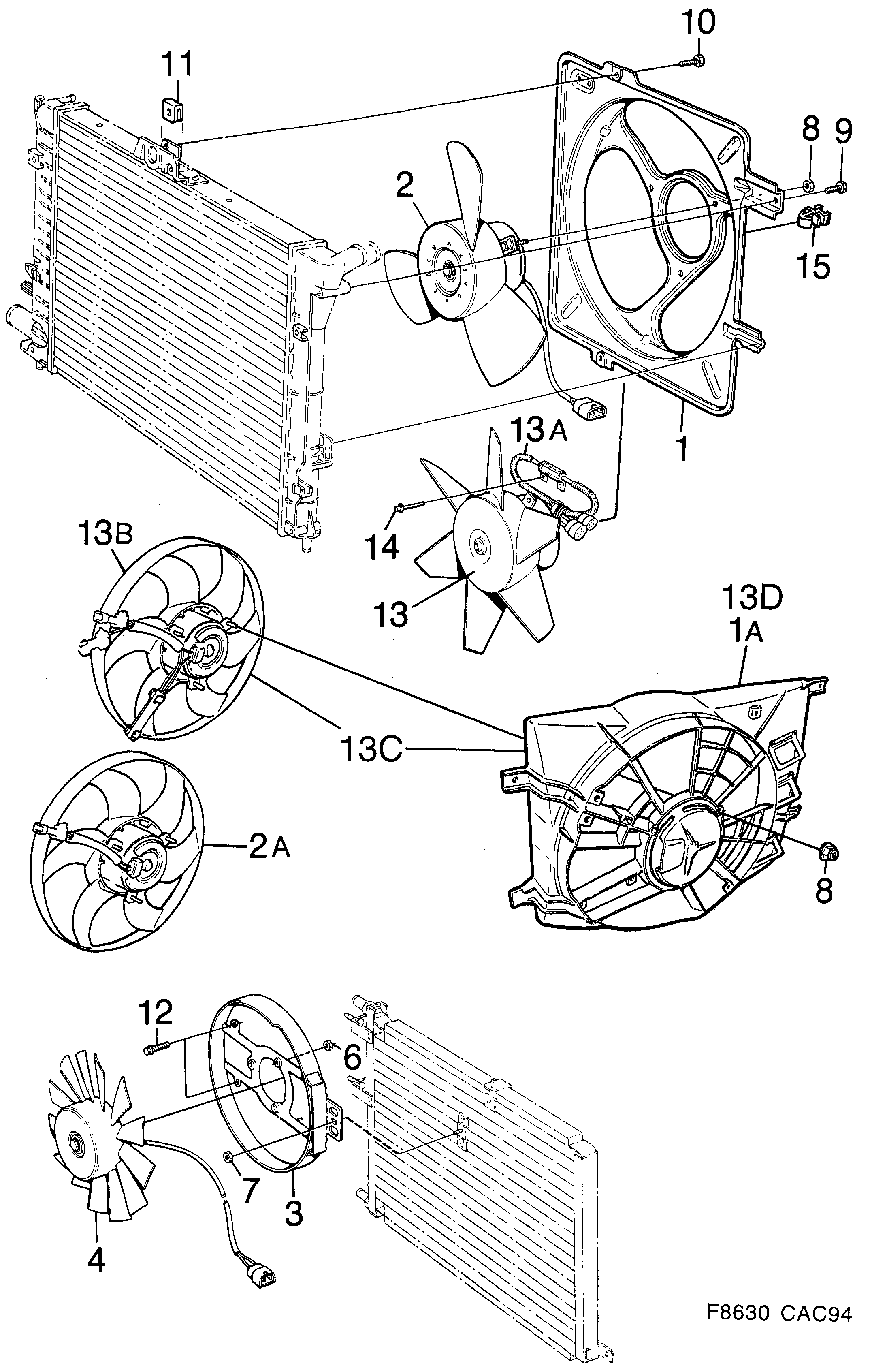

Group 2 Engine, section 1830
| Pos | Article | Part No. |
|---|---|---|
| 1 | Fan shroud | 7592918 |
| 1 | Fan shroud | 4358115 |
| 1A | Fan shroud | 4359899 |
| 2 | Fan unit | 9382144 |
| 2 | Fan unit | 4360954 |
| 2A | Fan unit | 4396248 (replaces 4357133) |
| 2A | Fan unit | 4396248 |
| 3 | Fan shroud | 7577885 |
| 4 | Fan unit | 7598980 |
| 6 | Nut | 92153043 (replaces 7975576) |
| 7 | Nut | 11900428 (replaces 7971658) |
| 7 | Nut | 92153044 (replaces 7974298) |
| 9 | Screw | 7971823 |
| 10 | Screw | 7922800 |
| 11 | Clip nut | 9427014 |
| 11 | Clip nut | 92151849 (replaces 7975071) |
| 12 | Screw | 92153146 (replaces 7972607) |
| 13 | Fan unit | 4356994 |
| 13 | Fan unit | 4360962 |
| 13A | Cable harness | 4395034 |
| 13B | Fan unit | 4357141 |
| 13C | Fan kit | 8822777 |
| 13B | Fan unit | 4877015 |
| 14 | Rivet | 9849514 |
| 14 | Screw | 7965684 (replaces 7972896) |
| 15 | Clip | 4176095 |
