Saab 9000 1994-1998 Cooling system

Group 2 Engine, section 1770

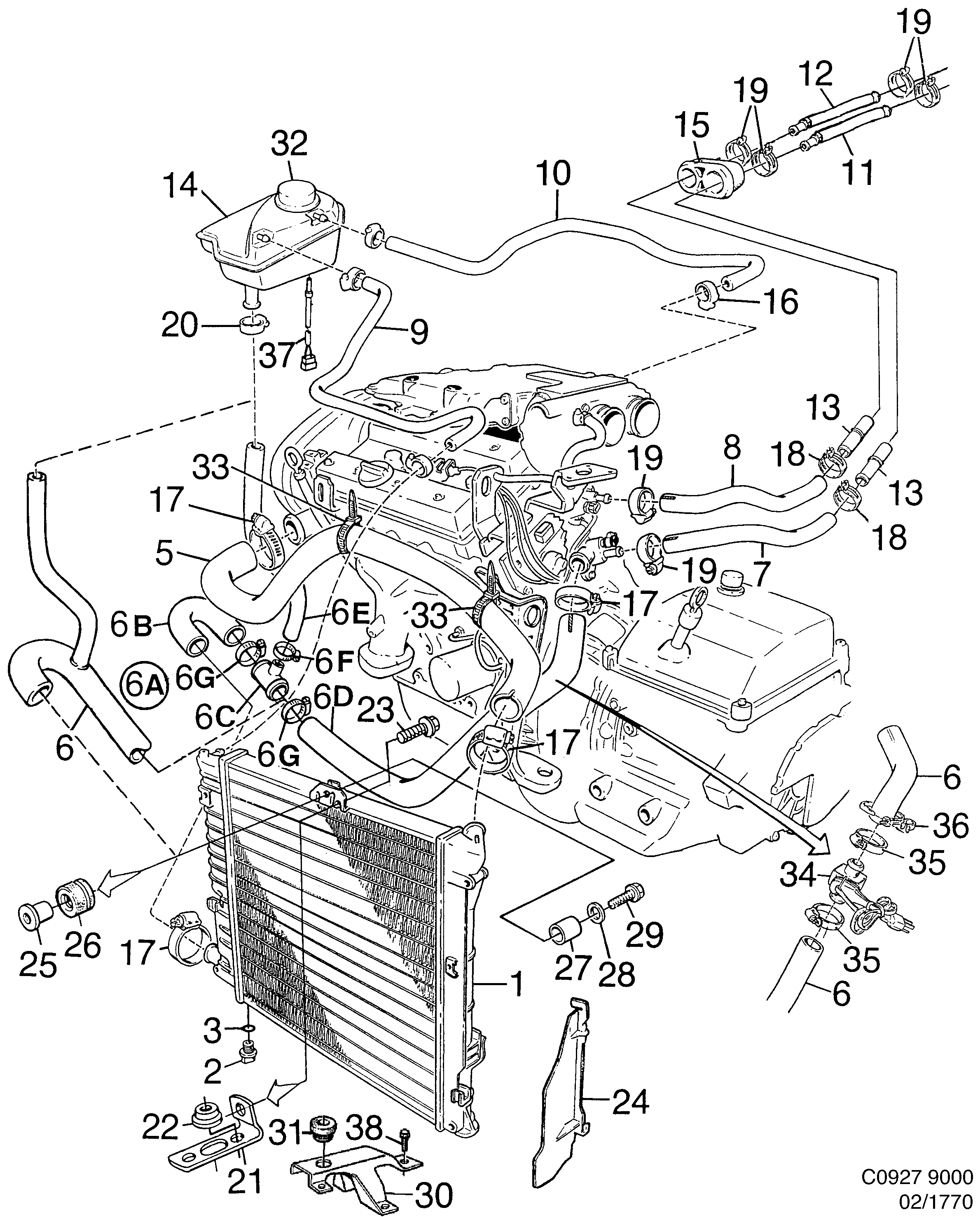

Saab 9000 Cooling system diagram

Pos	Article	Part No.
1	Radiator	4360327
2	Draining plug	9385824
3	O-ring	7975725
5	Hose	4876389 (replaces 4284824)
5	Hose	4876389
6	Hose	5170915 (replaces 4284832)
6A	Hose	5170915
6B	Hose	5170923
6C	Junction pipe	5170931
6D	Hose	5170949
6E	Hose	5170956
6F	Hose clamp	90499504
6G	Hose clamp	13136147 (replaces 4897732)
7	Hose	4876405 (replaces 4356549)
7	Hose	4876405
8	Hose	4876397 (replaces 4356531)
8	Hose	4876397
9	Hose	4876660 (replaces 4284873)
9	Hose	4876660
10	Hose	4165676
10	Hose	4876678
11	Hose	4028619
12	Hose	4028635
13	Junction pipe	4028650
14	Expansion tank	4357299
15	Grommet	4395554
16	Hose clamp	7970049
17	Hose clamp	7970114
18	Hose clamp	7984727
18	Hose clamp	4685947
19	Hose clamp	7970072
20	Hose clamp	7970098
21	Bracket	7550346
22	Rubber bushing	7550353
23	Screw	7972441
24	Air shield	4358479
25	Rivet nut	9130829 (replaces 7399454)
26	Rubber bushing	9377334
27	Rubber bushing	7553415
28	Washer	7987506 (replaces 7975469)
29	Screw	7978133
30	Bracket	7576390
31	Rubber bushing	4027488
32	Cover	4395570
33	Tie strap	8552663
34	Engine heater	4397295
35	Hose clamp	7970106
36	Holder	4087086
37	Engine coolant level sensor	7554348
38	Screw	8019895
