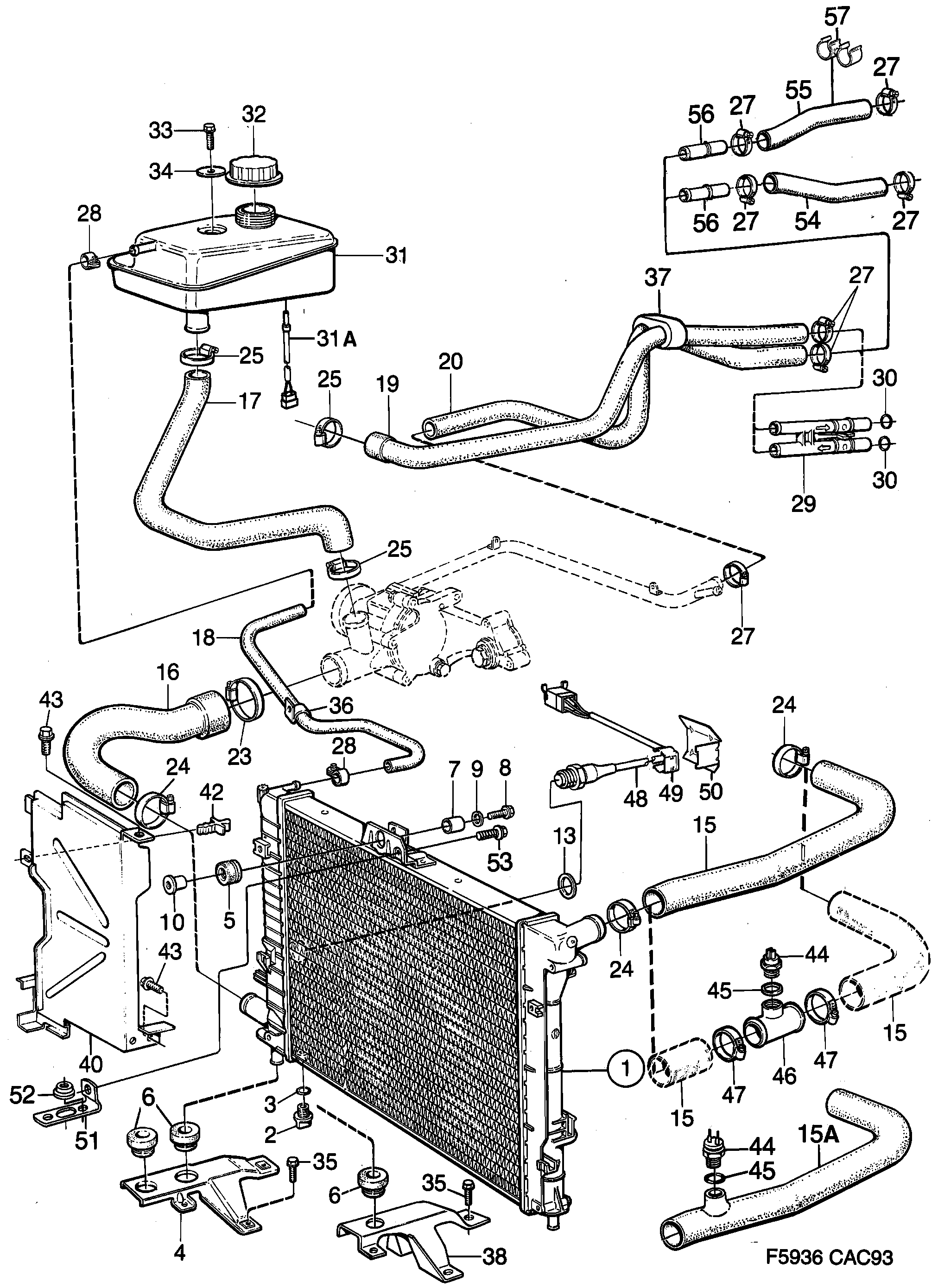

Group 2 Engine, section 1760
| Pos | Article | Part No. |
|---|---|---|
| 1 | Radiator | 7599194 (replaces 9382649) |
| 1 | Radiator | 7599194 (replaces 7550080) |
| 1 | Radiator | 9382656 |
| 1 | Radiator | 7550098 |
| 1 | Radiator | 7599194 (replaces 7599285) |
| 1 | Radiator | 7599194 |
| 1 | Radiator | 9382631 |
| 2 | Draining plug | 9385824 |
| 3 | O-ring | 7975725 |
| 4 | Bracket | 7576382 |
| 5 | Rubber bushing | 9377334 |
| 6 | Rubber bushing | 4027488 |
| 7 | Rubber bushing | 7553415 |
| 8 | Screw | 7978133 |
| 9 | Washer | 7987506 (replaces 7975469) |
| 10 | Nut | 7576200 |
| 13 | Seal | 9386285 |
| 15 | Hose | 4876363 (replaces 7551187) |
| 15 | Hose | 4876363 (replaces 4356598) |
| 15A | Hose | 4359709 (replaces 4118188) |
| 15A | Hose | 4359709 (replaces 4359006) |
| 16 | Hose | 9383670 |
| 16 | Hose | 9383688 |
| 16 | Hose | 9383662 |
| 16 | Hose | 4876645 (replaces 7576663) |
| 17 | Hose | 7554009 |
| 17 | Hose | 7554017 |
| 17 | Hose | 4283164 |
| 17 | Hose | 4876611 (replaces 7576671) |
| 18 | Hose | 4118048 |
| 18 | Hose | 4118030 |
| 18 | Hose | 7550122 |
| 18 | Hose | 4118956 |
| 18 | Hose | 4284196 |
| 18 | Hose | 4876637 (replaces 4284188) |
| 19 | Hose | 7554025 |
| 19 | Hose | 4356606 |
| 19 | Hose | 4876371 (replaces 4028593) |
| 19 | Hose | 4876371 (replaces 4359022) |
| 20 | Hose | 7554033 |
| 20 | Hose | 4028643 |
| 20 | Hose | 4027785 |
| 20 | Hose | 4120366 |
| 20 | Hose | 4876652 (replaces 4120465) |
| 23 | Hose clamp | 7970122 |
| 24 | Hose clamp | 7970114 |
| 25 | Hose clamp | 7970098 |
| 27 | Hose clamp | 7970072 |
| 28 | Hose clamp | 7970031 |
| 28 | Hose clamp | 7970049 |
| 29 | Snap-on coupling | 9385709 |
| 30 | O-ring | 7974975 |
| 31 | Expansion tank | 8786055 |
| 31 | Expansion tank | 4121067 |
| 31A | Engine coolant level sensor | 7554348 |
| 32 | Cover | 4395570 (replaces 7577323) |
| 33 | Screw | 8084063 |
| 34 | Washer | 8371650 |
| 35 | Screw | 8019895 |
| 36 | Clip | 11900515 (replaces 8536419) |
| 36 | Tie strap | 11900513 (replaces 7971880) |
| 37 | Grommet | 7598212 |
| 37 | Grommet | 4395554 (replaces 4121828) |
| 38 | Bracket | 7576390 |
| 40 | Cover plate | 4118360 (replaces 7550015) |
| 40 | Cover plate | 7550007 |
| 40 | Cover plate | 4118360 |
| 40 | Cover plate | 4118378 |
| 42 | Rubber strap | 9385832 |
| 43 | Screw | 7971823 |
| 44 | Thermo contact | 4086724 (replaces 9526526) |
| 44 | Thermo contact | 4086724 |
| 45 | Seal | 8330268 |
| 46 | Tube | 7576960 |
| 48 | Thermo contact | 4086690 (replaces 4110508) |
| 48 | Thermo contact | 4086690 |
| 48 | Thermo contact | 4086682 (replaces 9567967) |
| 48 | Thermo contact | 4086682 |
| 49 | Clip | 4060083 |
| 50 | Protection | 4063459 |
| 51 | Bracket | 7550346 |
| 52 | Rubber bushing | 7550353 |
| 53 | Screw | 7972441 |
| 54 | Hose | 4028619 |
| 55 | Hose | 4028635 |
| 56 | Junction pipe | 4028650 |
| 57 | Clamp | 9627266 |
