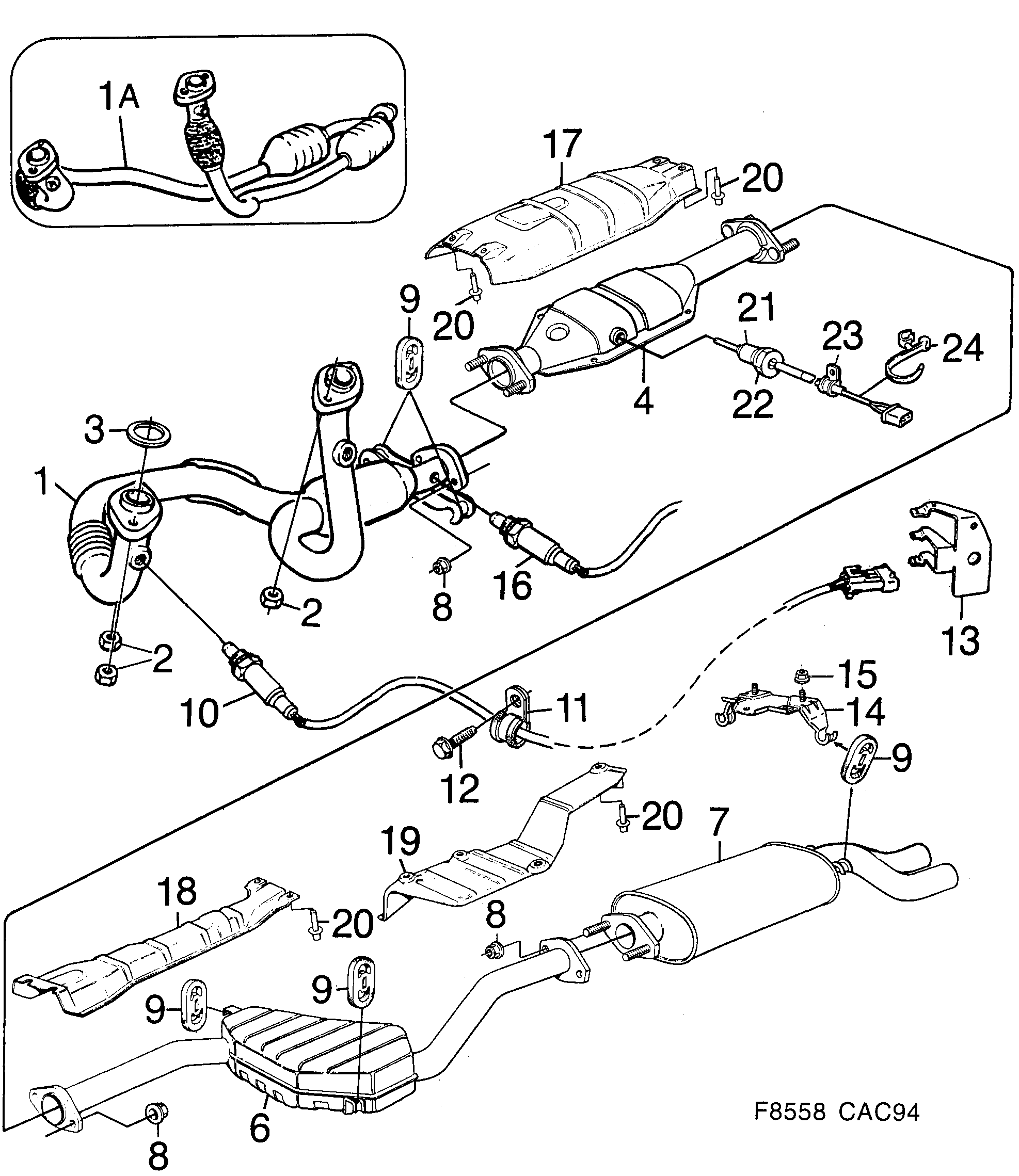

Group 2 Engine, section 1710
| Pos | Article | Part No. |
|---|---|---|
| 1 | Exhaust pipe | 4374914 |
| 1A | Three way catalytic converter | 4526877 |
| 2 | Lock nut | 4685830 (replaces 4087896) |
| 2 | Nut | 4685830 (replaces 4347902) |
| 2 | Nut | 4685830 |
| 3 | Exhaust gasket | 4443958 |
| 4 | Three way catalytic converter | 4750055 (replaces 4442505) |
| 4 | Three way catalytic converter | 4750055 |
| 4 | Three way catalytic converter | 4750063 (replaces 4526364) |
| 4 | Three way catalytic converter | 4750063 |
| 6 | Muffler | 5466867 (replaces 4391421) |
| 7 | Muffler | 5467170 (replaces 4440145) |
| 7 | Muffler | 5467162 (replaces 4164315) |
| 8 | Nut | 11900429 (replaces 7967953) |
| 9 | Rubber mounting | 9392465 |
| 10 | Front heated oxygen sensor | 4239042 |
| 10 | Front heated oxygen sensor | 30561510 (replaces 4301545) |
| 10 | Front heated oxygen sensor | 4239596 |
| 11 | Clamp | 4087714 |
| 12 | Hexagon screw | 7978265 |
| 13 | Bracket | 4354668 |
| 14 | Hook | 8977936 |
| 16 | Rear heated oxygen sensor | 4660163 |
| 16 | Rear heated oxygen sensor | 4660171 |
| 17 | Heat shield | 4022588 |
| 17 | Shield | 4527958 |
| 18 | Heat shield | 4022596 |
| 19 | Heat shield | 4022505 |
| 20 | Rivet | 9393968 |
| 20 | Rivet | 4685251 |
| 21 | Sensor | 4160065 |
| 21 | Sensor | 4433488 |
| 21 | Sensor | 4812889 |
| 22 | Nut | 4062329 |
| 23 | Clamp | 7969348 |
| 24 | Clamp | 7399652 |
