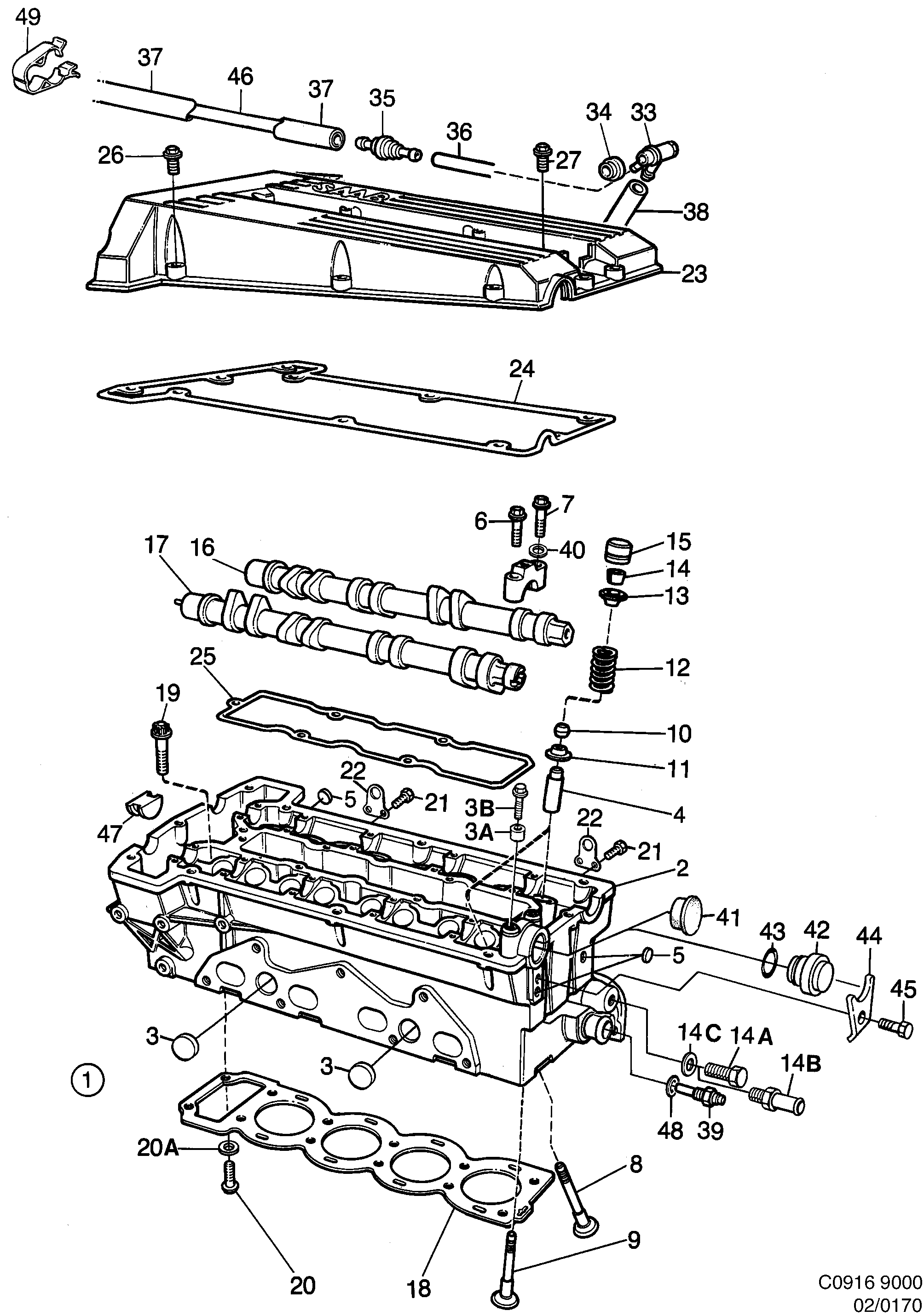

Group 2 Engine, section 170
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cylinder head | 9115346 |
| 1 | Cylinder head | 8857765 |
| 1 | Cylinder head | 7872070 |
| 1 | Cylinder head | 9129669 |
| 2 | Cylinder head | 9115353 |
| 3 | Sealing washer | 7588320 |
| 3A | Guide sleeve | 7504566 |
| 3B | Screw | 92151833 (replaces 7504178) |
| 4 | Valve guide | 7480577 |
| 4 | Valve guide | 7480569 |
| 4 | Valve guide | 9119942 |
| 5 | Plug | 4940466 (replaces 8123143) |
| 6 | Screw | 8125213 |
| 7 | Screw | 55559477 (replaces 7585847) |
| 8 | Inlet valve | 7484801 |
| 9 | Exhaust valve | 9165598 (replaces 7500085) |
| 9 | Exhaust valve | 9165598 (replaces 9136250) |
| 10 | Seal | 7500713 |
| 11 | Washer | 7505134 |
| 12 | Spring | 9129651 (replaces 9358391) |
| 12 | Spring | 9129636 |
| 12 | Spring | 9129651 |
| 13 | Washer | 7501349 |
| 14 | Valve cone | 7515547 |
| 14A | Plug | 7563042 (replaces 8123721) |
| 14B | Nipple | 7486806 |
| 14C | Seal | 4161162 (replaces 8981961) |
| 14C | Seal | 4161162 (replaces 8326712) |
| 15 | Tappet | 55557388 (replaces 9357716) |
| 15 | Tappet | 55557388 (replaces 9134420) |
| 16 | Camshaft | 9116690 |
| 16 | Camshaft | 30551899 (replaces 9148305) |
| 17 | Camshaft | 30551900 (replaces 9116708) |
| 17 | Camshaft | 30551900 (replaces 9148313) |
| 18 | Gasket | 9181348 (replaces 7484405) |
| 18 | Gasket | 9181348 (replaces 9169079) |
| 19 | Screw | 5955794 (replaces 7518335) |
| 19 | Screw | 5955794 (replaces 9129909) |
| 20 | Screw | 8098097 |
| 20A | Washer | 92153033 (replaces 8029985) |
| 20A | Washer | 32000432 (replaces 9166372) |
| 21 | Screw | 7504749 |
| 22 | Lifting eye | 7481757 |
| 23 | Valve cover | 5959416 (replaces 8788135) |
| 24 | Gasket | 55555635 (replaces 7588056) |
| 24 | Gasket | 55555635 (replaces 7569304) |
| 25 | Gasket | 55555634 (replaces 7523962) |
| 26 | Screw | 9119967 |
| 26 | Screw | 7560931 |
| 33 | Nipple | 7517048 |
| 34 | Bushing | 9549593 (replaces 7515190) |
| 35 | Positive crankcase ventilation valve | 9189564 (replaces 7521313) |
| 36 | Vaccum hose | 9136243 |
| 37 | Hose | 8786444 |
| 38 | Hose | 8788499 |
| 38 | Hose | 7519697 |
| 39 | Sensor | 30539720 (replaces 8800914) |
| 39 | Sensor | 30539720 (replaces 8859233) |
| 39 | Engine coolant temperature sensor | 30539720 (replaces 9108291) |
| 40 | Sealing washer | 9114885 |
| 41 | Plug | 7563075 |
| 42 | Plug | 30539721 (replaces 9131004) |
| 43 | O-ring | 9176470 (replaces 7519143) |
| 44 | Bracket | 8362287 |
| 45 | Screw | 9166323 (replaces 8082950) |
| 45 | Screw | 9166323 |
| 47 | Plug | 7500069 |
| 48 | Seal | 4443883 (replaces 8981979) |
| 49 | Tie strap | 30520459 (replaces 9117417) |
| Gasket kit | 8822041 (replaces 8818254) | |
| Gasket kit | 8822041 (replaces 9321464) | |
| Gasket kit | 9321605 |
