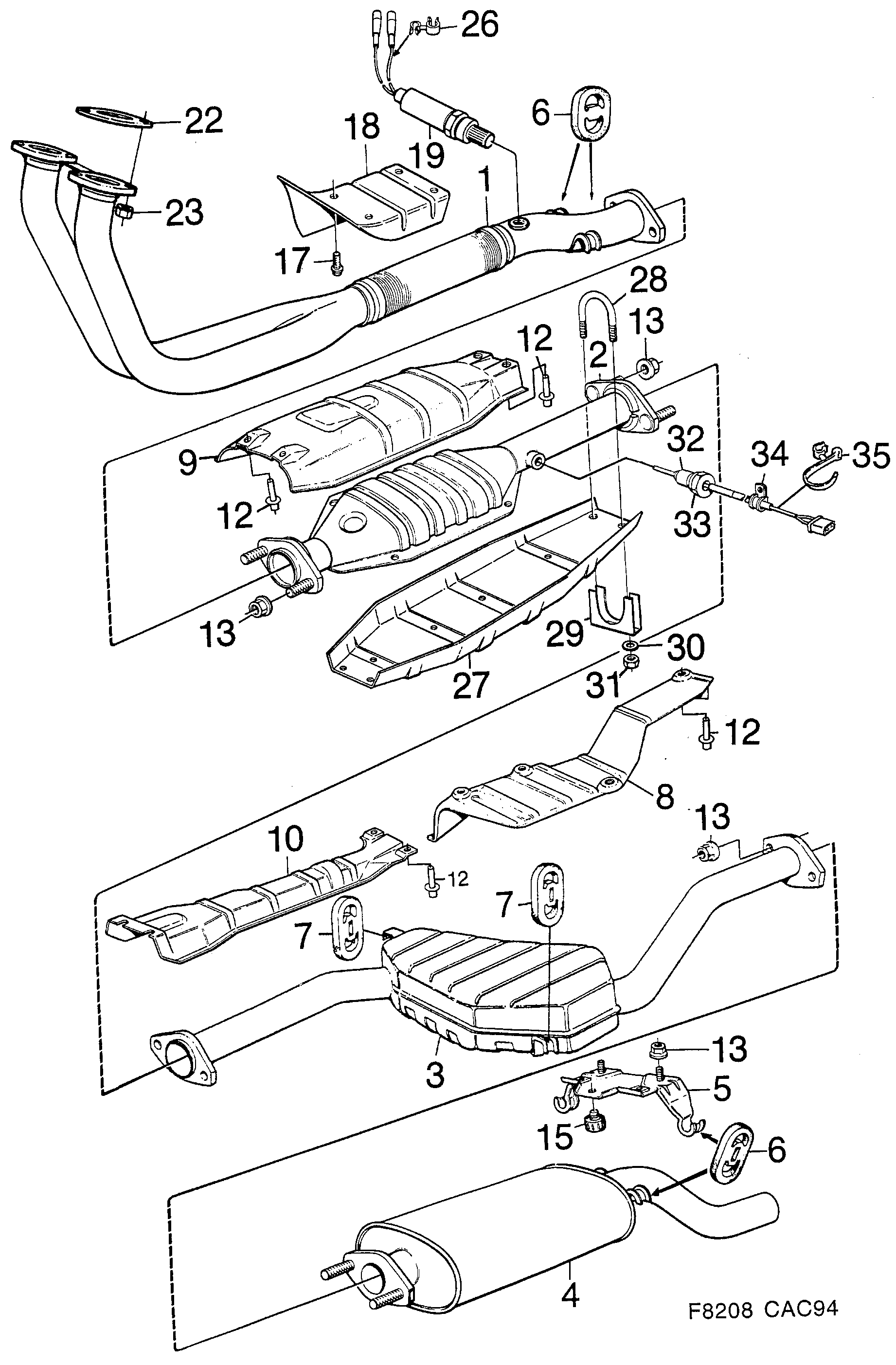

Group 2 Engine, section 1650
| Pos | Article | Part No. |
|---|---|---|
| 1 | Exhaust pipe | 4442166 |
| 1 | Exhaust pipe | 4527669 |
| 2 | Three way catalytic converter | 4750030 (replaces 9392457) |
| 2 | Three way catalytic converter | 4750030 |
| 2 | Three way catalytic converter | 4750048 (replaces 4024253) |
| 3 | Muffler | 5466867 (replaces 4018875) |
| 3 | Muffler | 5466867 (replaces 4391421) |
| 3 | Muffler | 5466867 (replaces 4393898) |
| 4 | Muffler | 5467048 (replaces 8979155) |
| 4 | Muffler | 5467113 (replaces 4525382) |
| 4 | Muffler | 5466818 (replaces 4162061) |
| 5 | Hook | 8977936 |
| 6 | Rubber mounting | 9392465 |
| 8 | Heat shield | 4022505 |
| 9 | Heat shield | 4022588 |
| 10 | Heat shield | 4022596 |
| 12 | Rivet | 9393968 |
| 12 | Rivet | 7591480 |
| 13 | Nut | 11900429 (replaces 7967953) |
| 15 | Plug | 9388588 |
| 17 | Screw | 8125130 |
| 18 | Heat shield | 7564321 |
| 18 | Heat shield | 30520365 (replaces 9112780) |
| 19 | Oxygen sensor | 30551926 (replaces 9146945) |
| 19 | Oxygen sensor | 4301305 |
| 19 | Oxygen sensor | 4239661 |
| 22 | Gasket | 8980328 |
| 22 | Gasket | 4624383 |
| 23 | Nut | 7979503 (replaces 7967870) |
| 26 | Clamp | 7399272 |
| 27 | Heat shield | 4024279 |
| 28 | Brace | 4024295 |
| 29 | Yoke bracket | 4024303 |
| 30 | Washer | 32000432 (replaces 9166372) |
| 31 | Lock nut | 55557005 (replaces 7965767) |
| 32 | Sensor | 4160065 |
| 32 | Sensor | 4433488 |
| 33 | Nut | 4062329 |
| 34 | Clamp | 7969348 |
| 35 | Clamp | 7399652 |
| 35 | Tie strap | 7398977 |
