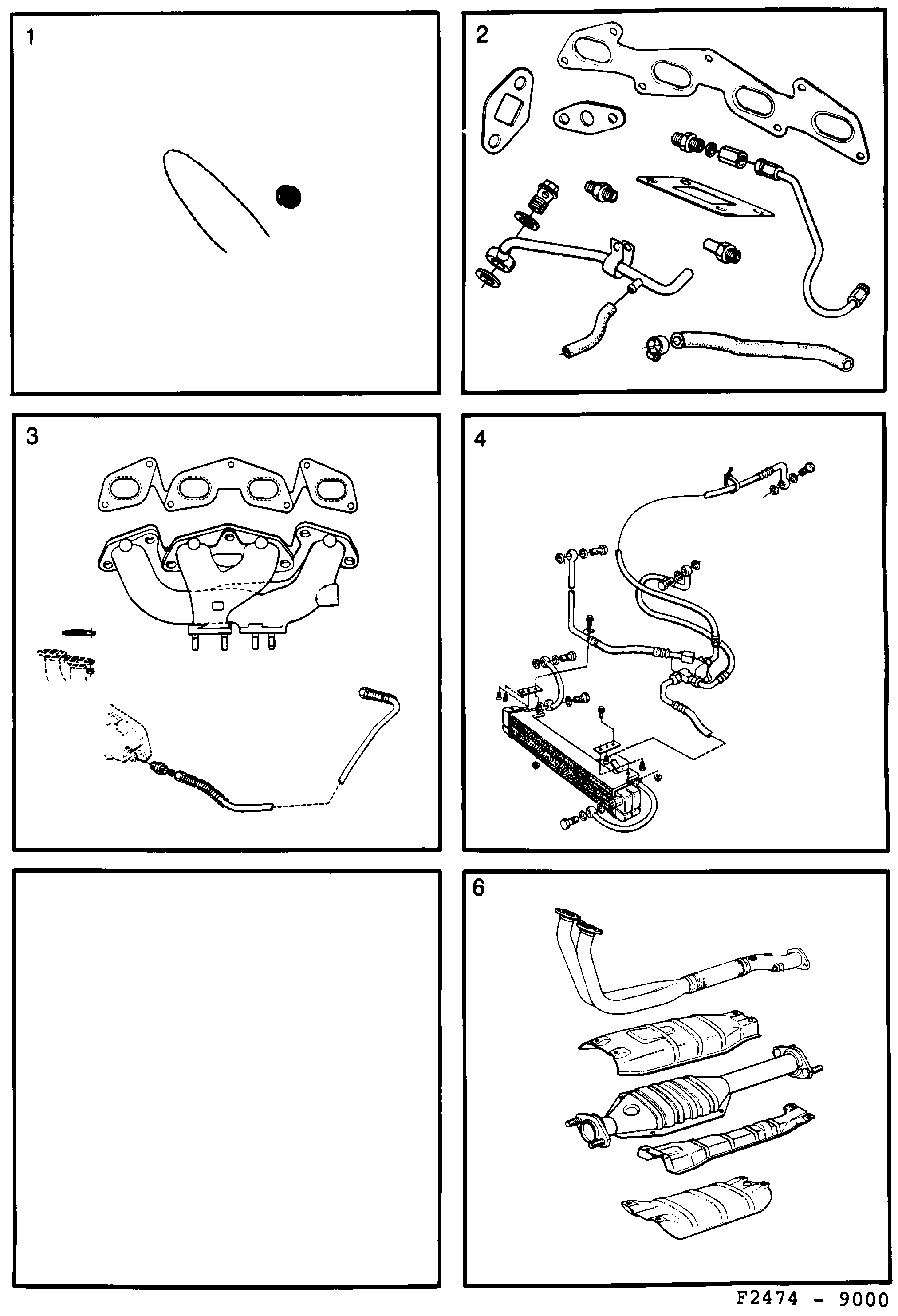

Group 2 Engine, section 1630
| Pos | Article | Part No. |
|---|---|---|
| 1 | Sealing | 9301706 |
| Wire | 9168352 (replaces 9301722) | |
| Seal | 9301714 | |
| Retaining ring | 55558372 (replaces 9350505) | |
| 1 | Sealing kit | 9185489 (replaces 8818569) |
| Sealing wire | 9168352 (replaces 8117020) | |
| Seal | 9168352 (replaces 8117038) | |
| 2 | Mounting kit | 8818973 |
| Gasket | 7518970 | |
| Gasket | 7518996 | |
| Gasket | 7507700 | |
| Hose | 7567514 | |
| Nipple | 7588098 | |
| Tube | 7582299 | |
| Tube | 9116369 | |
| Hose | 30520450 (replaces 9116765) | |
| Clamp | 7583461 | |
| Screw | 7583628 | |
| Nipple | 7584790 | |
| Nipple | 7587785 | |
| Hose clamp | 90572589 (replaces 7963515) | |
| Gasket | 92150435 (replaces 8124141) | |
| Gasket | 8124158 | |
| Ferrule | 8132227 | |
| Nut | 8145542 | |
| Hose clamp | 90530642 (replaces 8359275) | |
| Gasket | 8366262 | |
| Nut | 92152032 (replaces 7519432) | |
| Stud | 7520224 | |
| Nut | 4685830 (replaces 7521321) | |
| Nut | 11516076 (replaces 9306820) | |
| 3 | Exhaust manifold | 7478027 |
| Protection | 7520042 | |
| Exhaust manifold | 7583792 | |
| Exhaust manifold | 7562531 | |
| EGR-pipe | 7569916 | |
| Nut | 7979503 (replaces 7967870) | |
| Nipple | 8131989 | |
| Ferrule | 8132235 | |
| Nut | 8145559 | |
| Gasket | 8980328 (replaces 9368572) | |
| Tube | 7524069 | |
| Stud screw | 8000622 (replaces 8360943) | |
| Ferrule | 8357451 | |
| 4 | Oil cooler kit | 7554538 |
| Oil cooler | 7598311 | |
| Hydraulic hose | 7559537 | |
| Bracket | 7570757 | |
| Hydraulic hose | 7573744 | |
| O-ring | 7977580 | |
| Hydraulic hose | 7573751 | |
| Hydraulic hose | 7573769 | |
| Thermostat | 7573777 | |
| Hydraulic hose | 7577356 | |
| Tie strap | 30507607 (replaces 7593221) | |
| Screw | 7965544 | |
| Nut | 11900428 (replaces 7971658) | |
| Screw | 7399603 | |
| Screw | 8056004 | |
| Seal | 4161162 (replaces 8981961) | |
| Banjo screw | 12773569 (replaces 9301532) | |
| 4 | Oil cooler kit | 7554546 |
| Hydraulic hose | 7570823 | |
| Hydraulic hose | 7577364 | |
| 6 | Catalytic converter kit | 8819260 |
| Screw | 7528953 | |
| Label | 5463351 (replaces 4023636) | |
| Cage nut | 7970437 | |
| Cage nut | 7977374 | |
| Screw | 8262958 | |
| Filler pipe | 8982191 | |
| Filler cap | 4391058 (replaces 8982209) | |
| Three way catalytic converter | 4750030 (replaces 9392457) | |
| Rivet | 9393968 | |
| Heat shield | 4022588 | |
| Heat shield | 4022596 | |
| Shield | 4022612 | |
| Text plate | 9677048 | |
| Text plate | 9659764 | |
| Exhaust pipe | 5466156 | |
| Plug | 9310004 | |
| 6 | Catalytic converter kit | 8819963 |
| Exhaust pipe | 4019535 (replaces 9393455) | |
| Ball | 8341257 | |
| Nut | 8357444 | |
| Plug | 9300625 |
