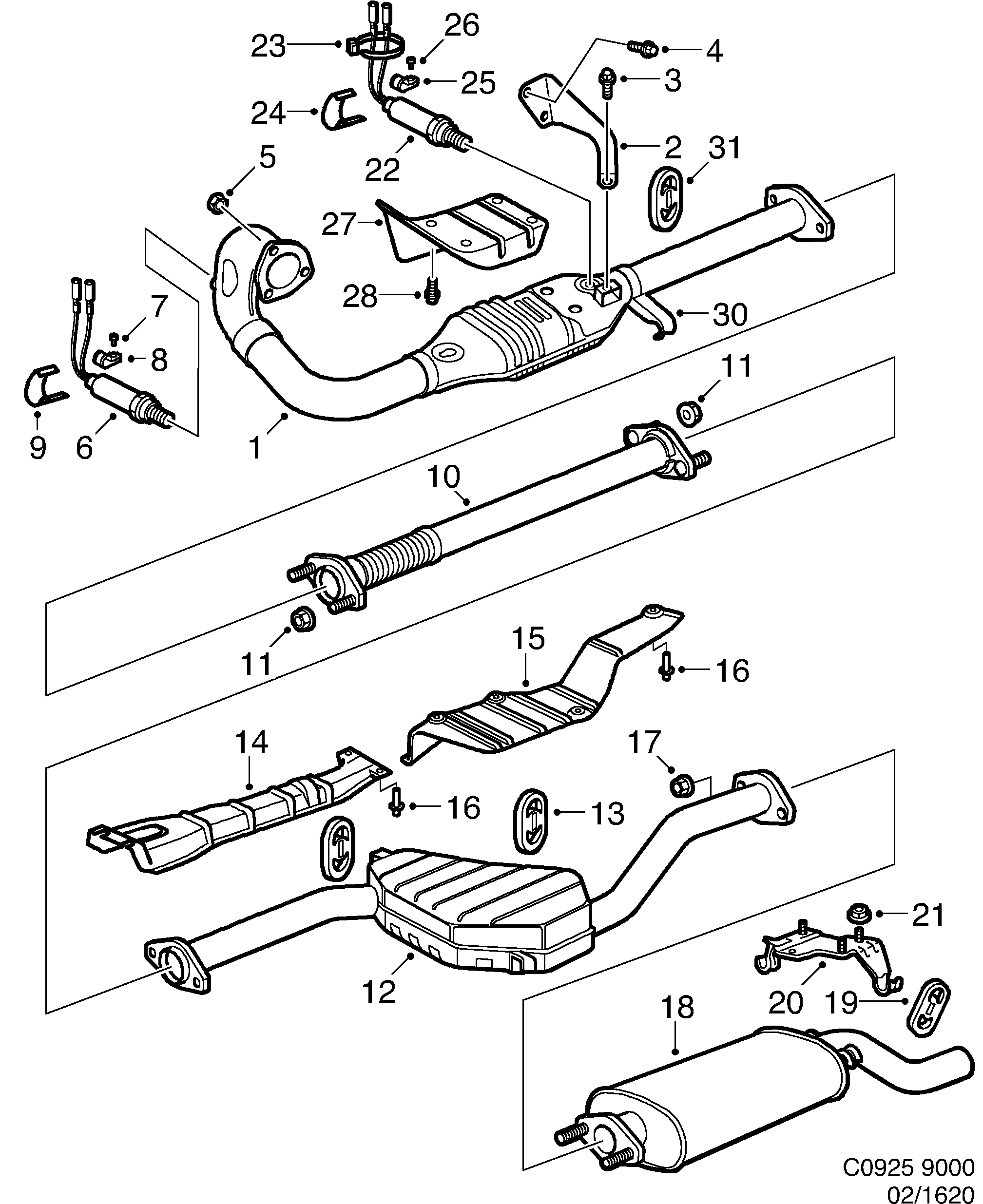

Group 2 Engine, section 1620
| Pos | Article | Part No. |
|---|---|---|
| 1 | Three way catalytic converter | 4526372 |
| 1 | Three way catalytic converter | 4528238 |
| 1 | Three way catalytic converter | 4526869 |
| 2 | Brace | 4393450 |
| 3 | Hexagon screw | 7978265 |
| 4 | Screw | 92150012 (replaces 7978182) |
| 5 | Nut | 92152032 (replaces 7519432) |
| 6 | Front heated oxygen sensor | 30551925 (replaces 9146937) |
| 6 | Front heated oxygen sensor | 4660494 |
| 6 | Heated oxygen sensor | 4660445 |
| 6 | Front heated oxygen sensor | 4239588 |
| 7 | Screw | 7975451 |
| 8 | Clamp | 7398803 (replaces 4087078) |
| 9 | Clip | 4158762 |
| 10 | Intermediate pipe | 4393583 |
| 11 | Nut | 11900429 (replaces 7967953) |
| 12 | Muffler | 4018867 |
| 13 | Rubber mounting | 9392465 |
| 14 | Heat shield | 4022596 |
| 15 | Heat shield | 4022505 |
| 16 | Rivet | 9393968 |
| 16 | Rivet | 7591480 |
| 18 | Muffler | 8979163 |
| 18 | Muffler | 5466883 (replaces 4525366) |
| 18 | Muffler | 5466883 (replaces 4528600) |
| 18 | Muffler | 5325006 |
| 18 | Muffler | 5467121 (replaces 4528618) |
| 18 | Muffler | 5467154 (replaces 4015814) |
| 18 | Muffler | 5467154 (replaces 4528626) |
| 20 | Hook | 8977936 |
| 22 | Rear heated oxygen sensor | 32000423 (replaces 9147224) |
| 23 | Tie strap | 11900513 (replaces 7971880) |
| 25 | Clamp | 7398803 |
| 27 | Heat shield | 30520365 (replaces 9112780) |
| 28 | Screw | 8125130 |
| 30 | Brace | 5331327 |
