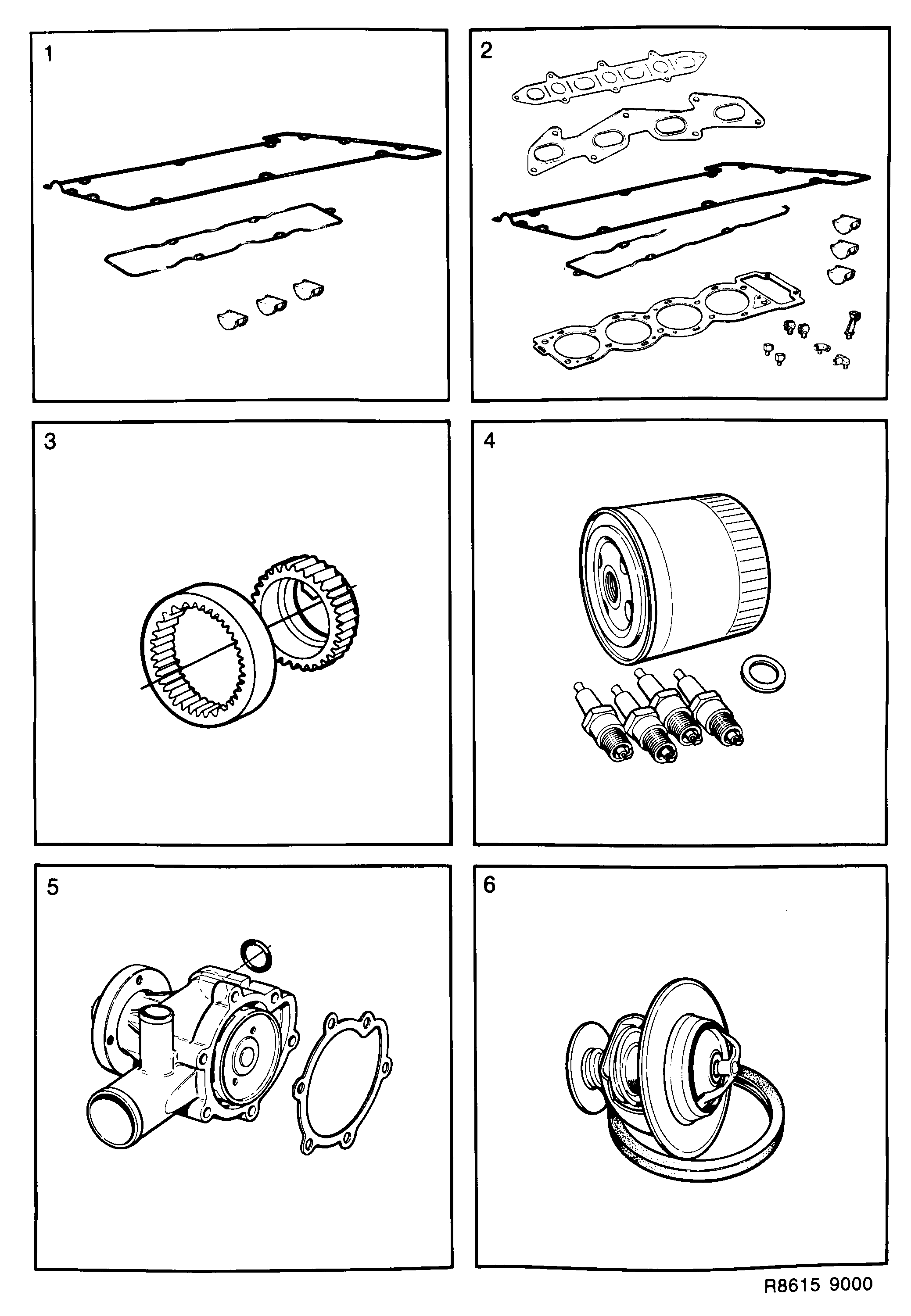

Group 2 Engine, section 1600
| Pos | Article | Part No. |
|---|---|---|
| 1 | Gasket kit | 8817512 |
| Gasket | 7520380 | |
| Gasket | 9359647 | |
| Plug | 7500069 | |
| 1 | Gasket kit | 8822041 (replaces 8818254) |
| Gasket | 55555635 (replaces 7588056) | |
| Gasket | 55555634 (replaces 7523962) | |
| 2 | Gasket kit | 8818007 |
| Gasket | 7518996 | |
| Gasket | 9181348 (replaces 7585045) | |
| Bushing | 9549593 (replaces 7515190) | |
| Nipple | 7480429 | |
| Nipple | 7480437 | |
| Nipple | 7480445 | |
| Nipple | 7480452 | |
| Nipple | 7480460 | |
| Gasket | 7584436 | |
| 2 | Gasket kit | 8819823 |
| Gasket | 9181348 (replaces 7484405) | |
| 2 | Gasket kit | 8819831 |
| 3 | Pump kit | 8817561 |
| Pump rotor | 32000440 (replaces 7515588) | |
| Pump rotor | 7515596 | |
| 4 | Service kit | 8817686 |
| Oil filter | 93186554 (replaces 9320383) | |
| Gasket | 8718439 | |
| Gasket | 7522709 | |
| Spark plug kit | 5962485 (replaces 7568900) | |
| 4 | Service kit | 8819138 |
| Spark plug | 32000330 (replaces 9112541) | |
| 4 | Service kit | 8818544 |
| Spark plug | 8819294 | |
| 4 | Service kit | 8819864 |
| Spark plug | 9116385 | |
| 5 | Coolant pump | 9321670 (replaces 8817918) |
| Coolant pump | 9321670 (replaces 7567951) | |
| Gasket | 7566581 | |
| O-ring | 9146598 (replaces 7972698) | |
| 6 | Thermostat kit | 30577561 (replaces 8817298) |
| Thermostat | 5958749 (replaces 7505241) | |
| Gasket | 9176165 (replaces 8352692) | |
| 6 | Thermostat kit | 8817538 |
| Thermostat | 5958756 (replaces 7517345) |
