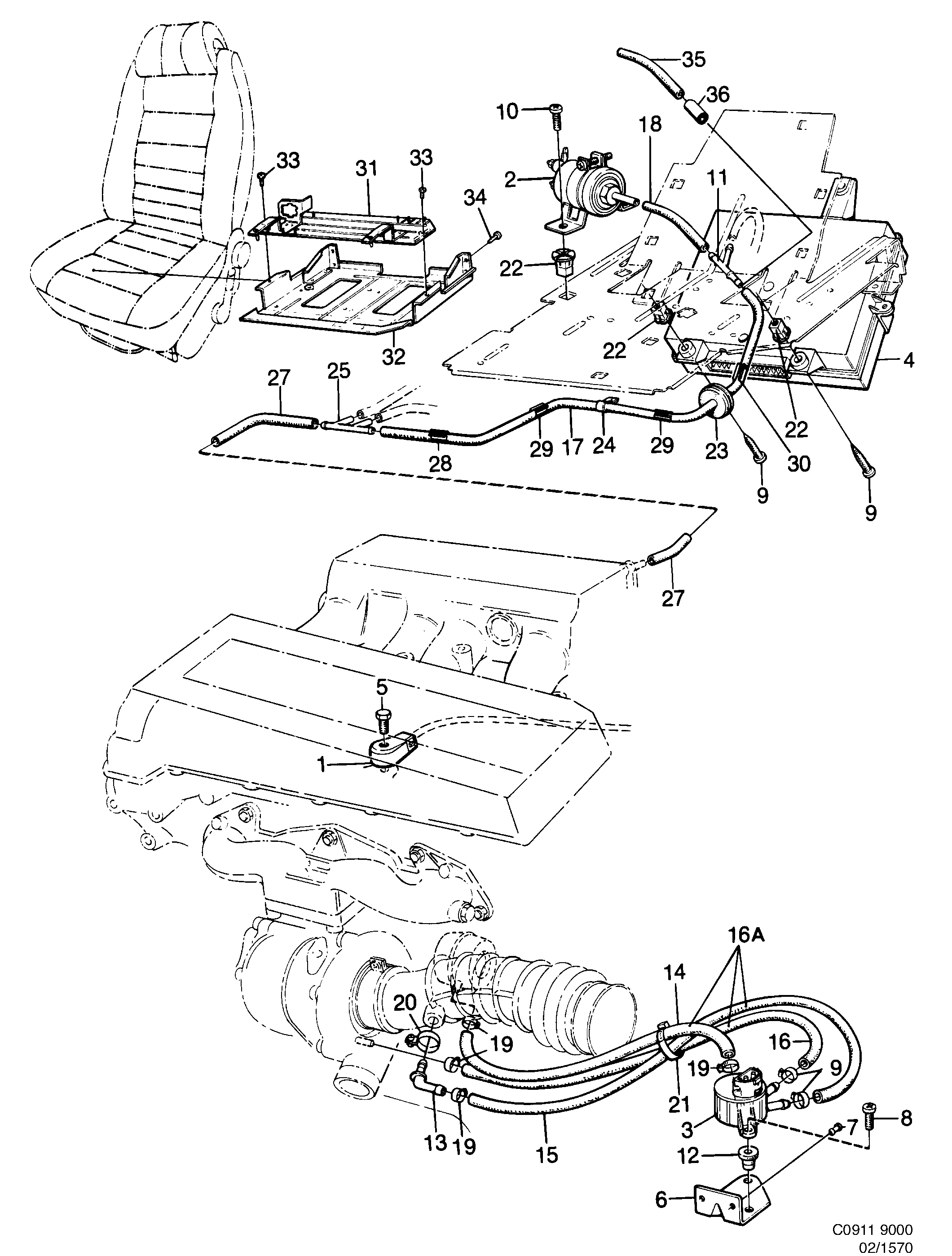

Group 2 Engine, section 1570
| Pos | Article | Part No. |
|---|---|---|
| 1 | Knock sensor | 7568801 (replaces 9358037) |
| 1 | Knock sensor | 7568801 |
| 1 | Knock sensor | 7585755 |
| 2 | Charge Air Absolute Pressure Sensor | 9342064 |
| 3 | Solenoid valve | 7517477 |
| 3 | Boost pressure control valve | 7485576 |
| 4 | Engine control module | 7521818 |
| 4 | Control device | 7523970 |
| 4 | Control device | 7524143 |
| 4 | Control device | 7524150 |
| 4 | Electronic unit | 7585771 |
| 4 | Electronic unit | 7483522 |
| 5 | Screw | 7562168 |
| 5 | Screw | 8125197 |
| 6 | Bracket | 9388620 |
| 6 | Bracket | 8978678 |
| 7 | Rivet | 7972045 |
| 8 | Screw | 8059412 |
| 8 | Screw | 8059420 |
| 9 | Screw | 7922362 |
| 10 | Screw | 7922826 |
| 10 | Screw | 7977861 |
| 11 | Tube | 8509002 |
| 12 | Expanding nut | 7973456 |
| 13 | Nipple | 9388539 |
| 13 | Nipple | 9342270 |
| 14 | Hose | 9388752 |
| 15 | Hose | 9388604 |
| 16 | Hose | 9388612 |
| 16A | Hose | 9392283 |
| 16A | Hose | 8981698 |
| 16A | Hose | 8978637 |
| 17 | Vaccum hose | 9136243 |
| 19 | Hose clamp | 7973522 |
| 20 | Hose clamp | 7975618 |
| 20 | Hose clamp | 7974009 |
| 21 | Tie strap | 7971864 |
| 22 | Nut | 7975261 |
| 23 | Grommet | 7398712 |
| 24 | Clip | 7977176 |
| 25 | Manifold | 8510091 |
| 28 | Clamp | 7155500 |
| 29 | Clip | 7933443 |
| 29 | Clamp | 8980401 |
| 30 | Clamp | 7121239 |
| 31 | Bracket | 9394347 |
| 31 | Bracket | 8978769 |
| 32 | Plate | 9394339 |
| 32 | Plate | 8977142 |
| 33 | Screw | 7922347 |
| 34 | Screw | 92151994 (replaces 7972953) |
| 34 | Nut | 92153043 (replaces 7975576) |
| 36 | Junction pipe | 8508848 |
