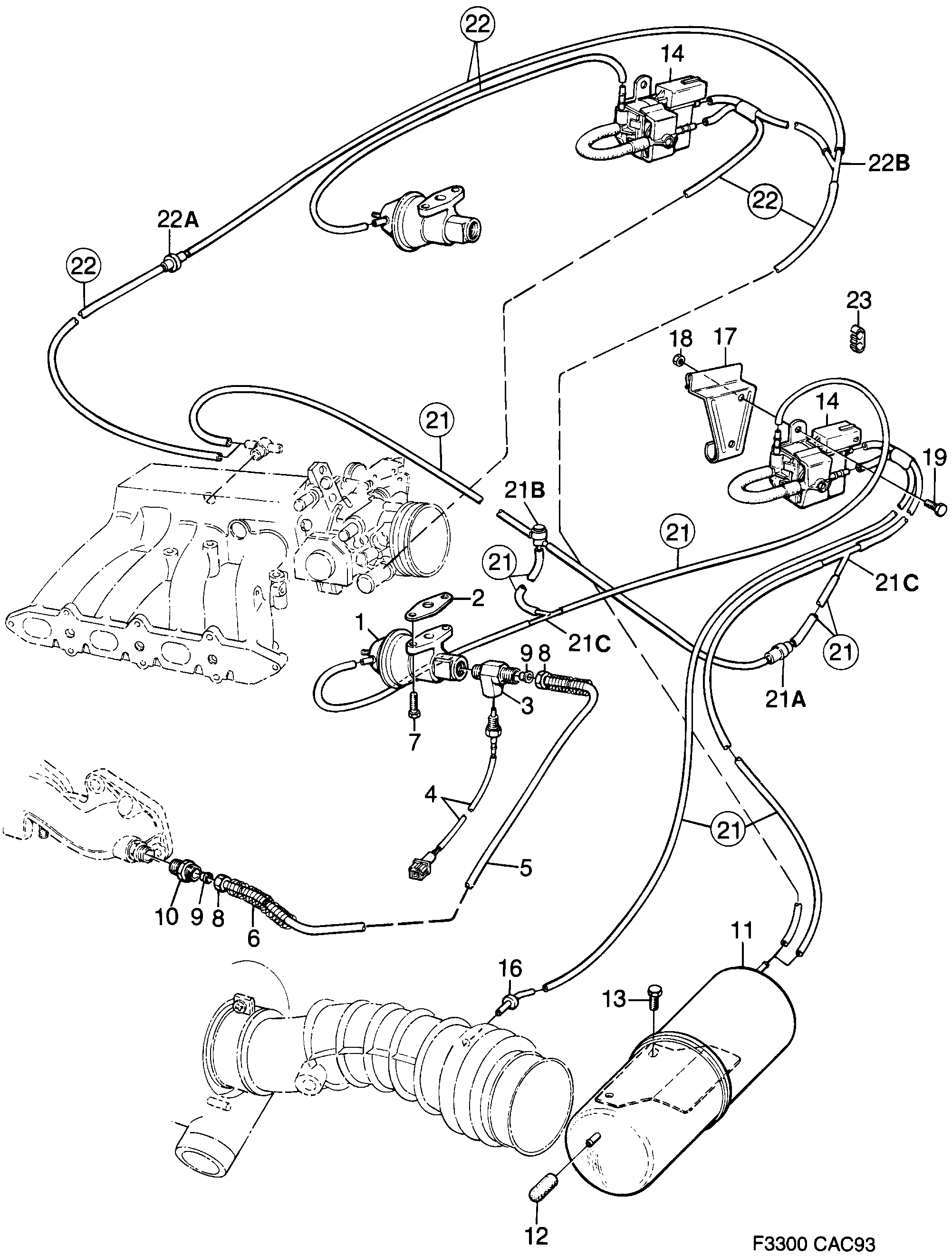

Group 2 Engine, section 1550
| Pos | Article | Part No. |
|---|---|---|
| 1 | Valve | 8788721 |
| 2 | Gasket | 7507973 |
| 3 | Nipple | 9119728 |
| 4 | Sensor | 9119512 |
| 5 | EGR-pipe | 7522519 |
| 5 | EGR-pipe | 7569916 |
| 6 | Protection | 7520042 |
| 7 | Screw | 8019929 |
| 7 | Screw | 9166299 |
| 8 | Nut | 8145559 |
| 9 | Ferrule | 8132235 |
| 10 | Nipple | 8131989 |
| 11 | Vacuum tank | 4016101 |
| 11 | Vacuum tank | 4159489 |
| 12 | Plug | 8335614 |
| 13 | Screw | 7972888 |
| 14 | Timing valve | 9119504 |
| 16 | Nipple | 4016036 |
| 17 | Bracket | 4016028 |
| 18 | Expanding nut | 7973456 |
| 19 | Screw | 8059396 |
| 21 | Vaccum hose | 9136243 |
| 21A | Check valve | 12793343 (replaces 4023297) |
| 21B | Delivery valve | 4023701 |
| 21C | Tube | 8509002 |
| 23 | Clamp | 7398621 |
