Saab 9000 1985-1989 Turbocharger

Group 2 Engine, section 1540

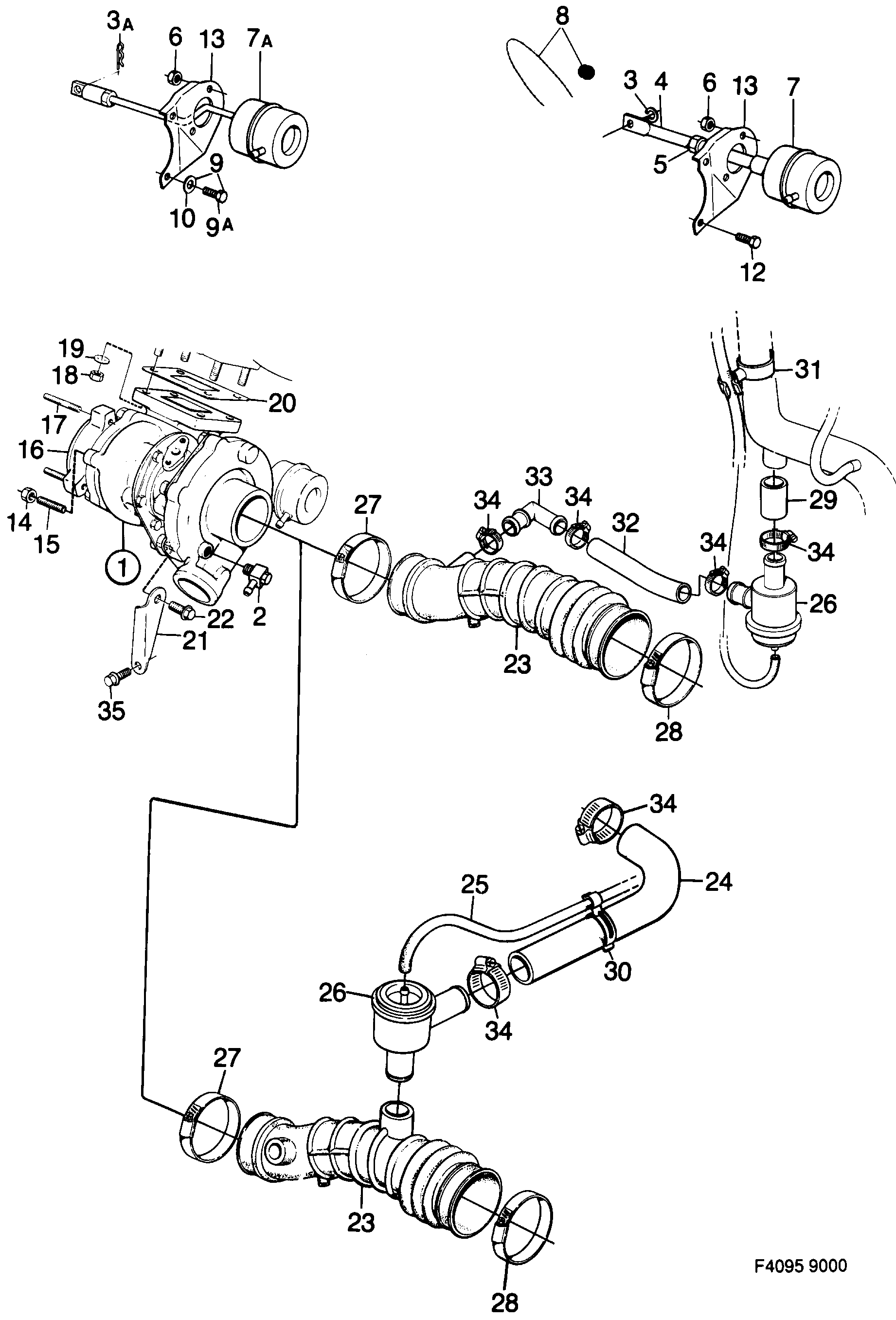

Saab 9000 Turbocharger diagram

Pos	Article	Part No.
1	Turbocharger	7517758
1	Turbocharger	7517766
1	Turbocharger	7568082
1	Turbocharger	7486061
1	Turbocharger	7562176
1	Turbocharger	7568108
1	Turbocharger	7486079
1	Turbocharger	7483035
1	Turbocharger	7486095
2	Nipple	7565591
2	Nipple	8787301
2	Nipple	8787319
3	Retaining ring	55558372 (replaces 9350505)
3A	Lock needle	8925067
4	End piece	7565609
5	Press ring	9350570
6	Nut	9350513
7	Regulator	7565617
7A	Pressure regulator	8787269
8	Sealing kit	9185489 (replaces 8818569)
9	Screw	8788754
9A	Screw	8787277
10	Washer	8787285
12	Screw	9350471
13	Bracket	7565583
14	Nut	92152032 (replaces 7519432)
15	Stud	7565658
15	Stud	7565716
16	Throttle body	7565666
16	Cover	8787335
17	Stud	7520224
18	Nut	4685830 (replaces 7521321)
19	Washer	8073108
20	Gasket	8366262
21	Bracket	7502537
21	Brace	7484850
22	Screw	8125148
23	Hose	9389321
23	Hose	9390873
23	Hose	7591928
24	Hose	9389446
24	Hose	7591944
25	Vaccum hose	9136243
26	Valve	4441895 (replaces 9390022)
26	Valve	8981904
27	Hose clamp	92153079 (replaces 7970148)
28	Hose clamp	92153080 (replaces 7970155)
29	Hose clamp	7970098
30	Clamp	7398407
31	Clamp	7398415
32	Hose	7591936
33	Nipple	7591951
34	Hose clamp	7970098 (replaces 7977234)
35	Screw	8125262
	Sealing	9301706
	Mounting kit	8818973
