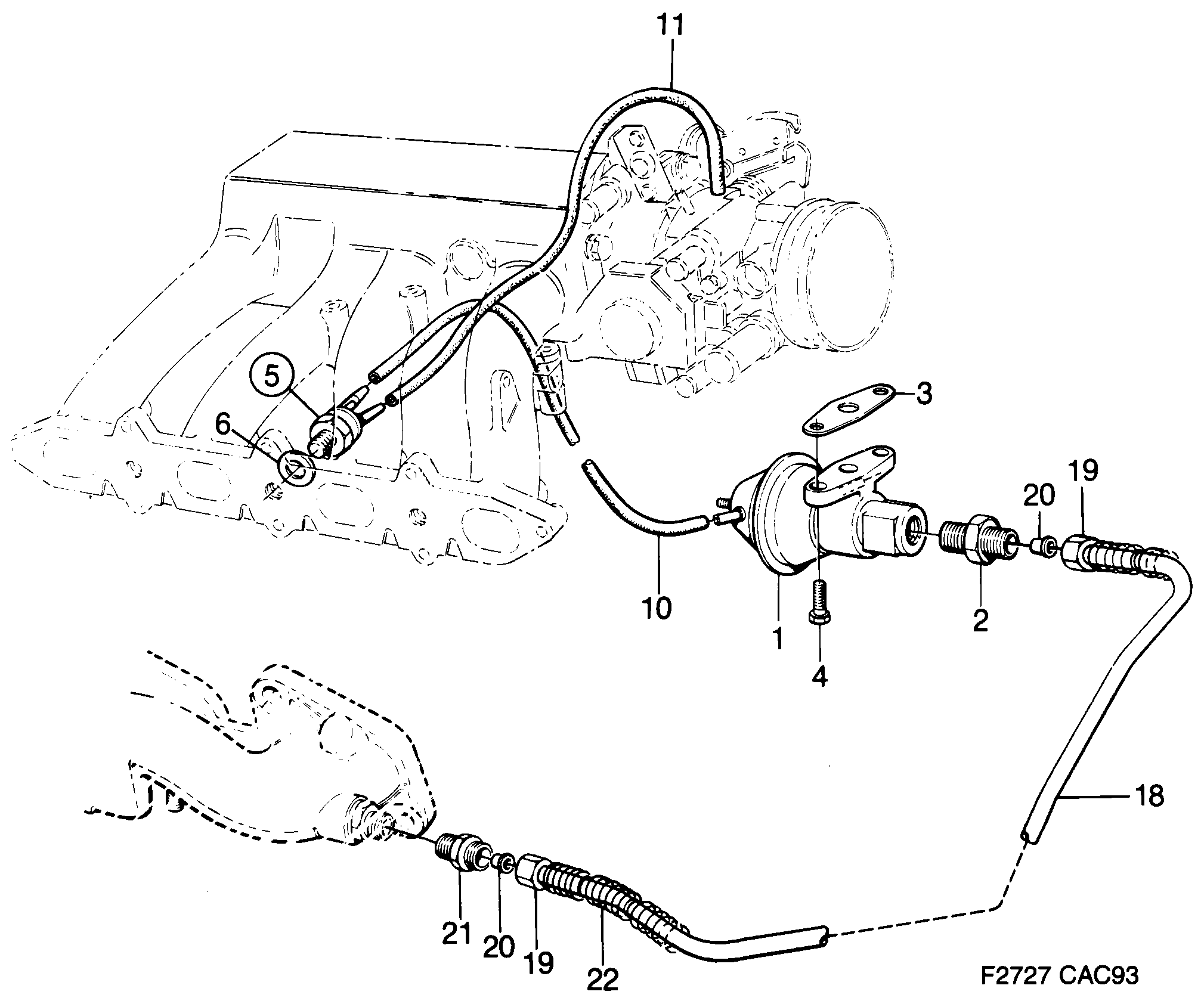

Group 2 Engine, section 1520
| Pos | Article | Part No. |
|---|---|---|
| 1 | Exhaust gas recirculation valve | 9350216 |
| 1 | Exhaust gas recirculation valve | 8859969 |
| 1 | Exhaust gas recirculation valve | 9350224 |
| 1 | Exhaust gas recirculation valve | 8859977 |
| 1 | Exhaust gas recirculation valve | 7873284 |
| 2 | Nipple | 7506652 |
| 2 | Nipple | 7583933 |
| 3 | Gasket | 7507973 |
| 4 | Screw | 8019929 |
| 4 | Screw | 9166299 |
| 5 | Valve | 7504897 |
| 6 | Gasket | 92150435 (replaces 8124141) |
| 6 | Seal | 4161162 (replaces 8326712) |
| 10 | Vaccum hose | 9136243 |
| 18 | EGR-pipe | 7522519 |
| 18 | EGR-pipe | 7872898 |
| 18 | EGR-pipe | 7569916 |
| 19 | Nut | 8145559 |
| 20 | Ferrule | 8132235 |
| 21 | Nipple | 8131989 |
| 22 | Protection | 7520042 |
| 22 | Protection | 7517642 |
