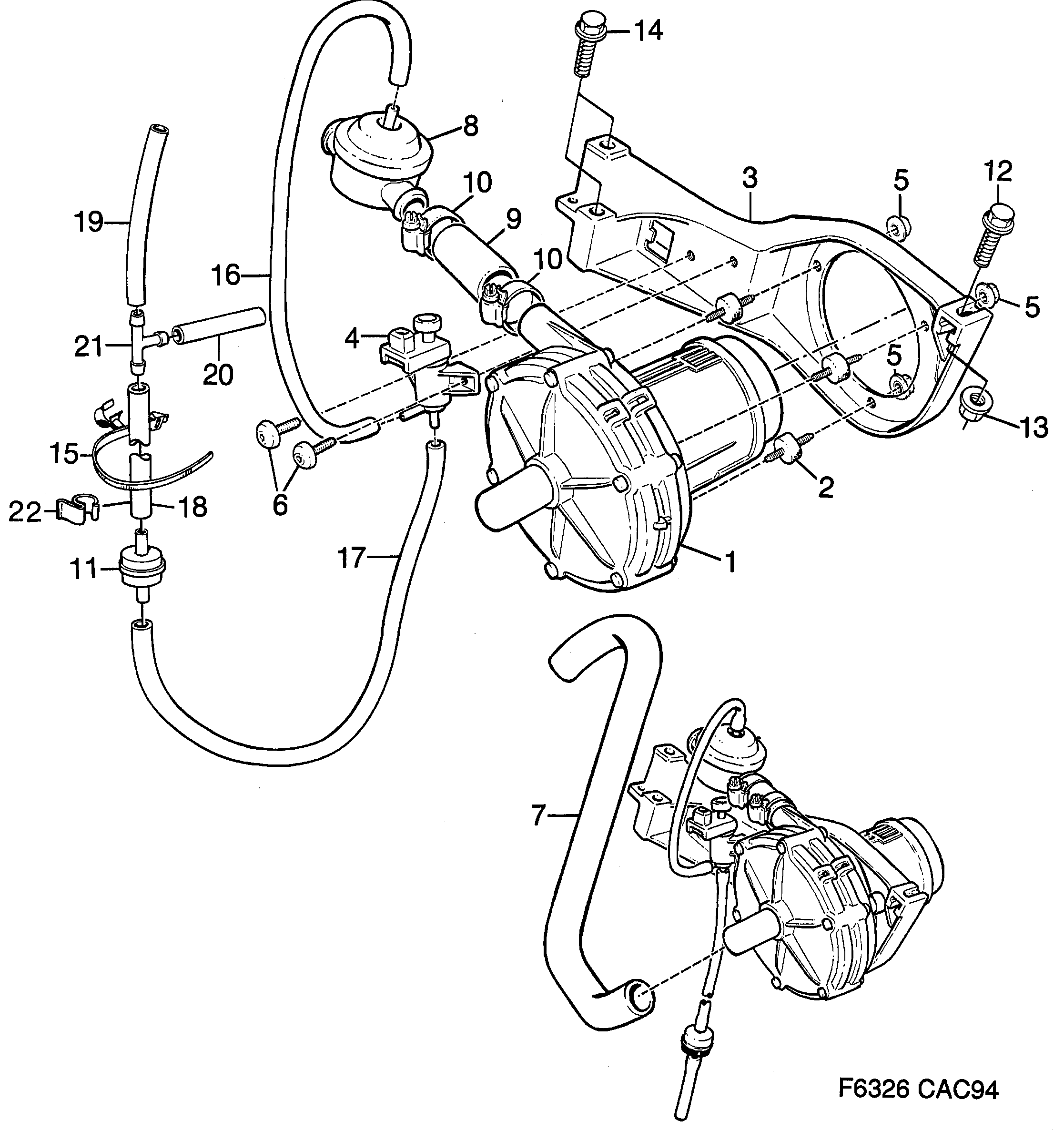

Group 2 Engine, section 1500
| Pos | Article | Part No. |
|---|---|---|
| 1 | Secondary air injection pump | 4239083 |
| 2 | Rubber spacer | 9281374 (replaces 4235768) |
| 3 | Bracket | 4301420 |
| 4 | Secondary air injection control valve | 90466214 (replaces 4394078) |
| 5 | Nut | 11900451 (replaces 7977929) |
| 6 | Screw | 7971294 |
| 7 | Hose | 4360707 |
| 7 | Hose | 4390837 |
| 8 | Secondary air injectin switching valve | 4228011 |
| 9 | Hose | 4390852 |
| 10 | Hose clamp | 7970072 |
| 11 | Check valve | 12793343 (replaces 4023297) |
| 12 | Hexagon screw | 7399900 |
| 13 | Nut | 8151227 (replaces 8029555) |
| 14 | Screw | 11588749 (replaces 7976921) |
| 14 | Screw | 92151521 (replaces 7976913) |
| 15 | Tie strap | 7398944 |
| 16 | Vaccum hose | 9136243 |
| 21 | Pipe | 12791937 (replaces 8366791) |
| 22 | Clamp | 12755295 (replaces 9383043) |
