Saab 9000 1985-1989 Thermostat, etc

Group 2 Engine, section 1480

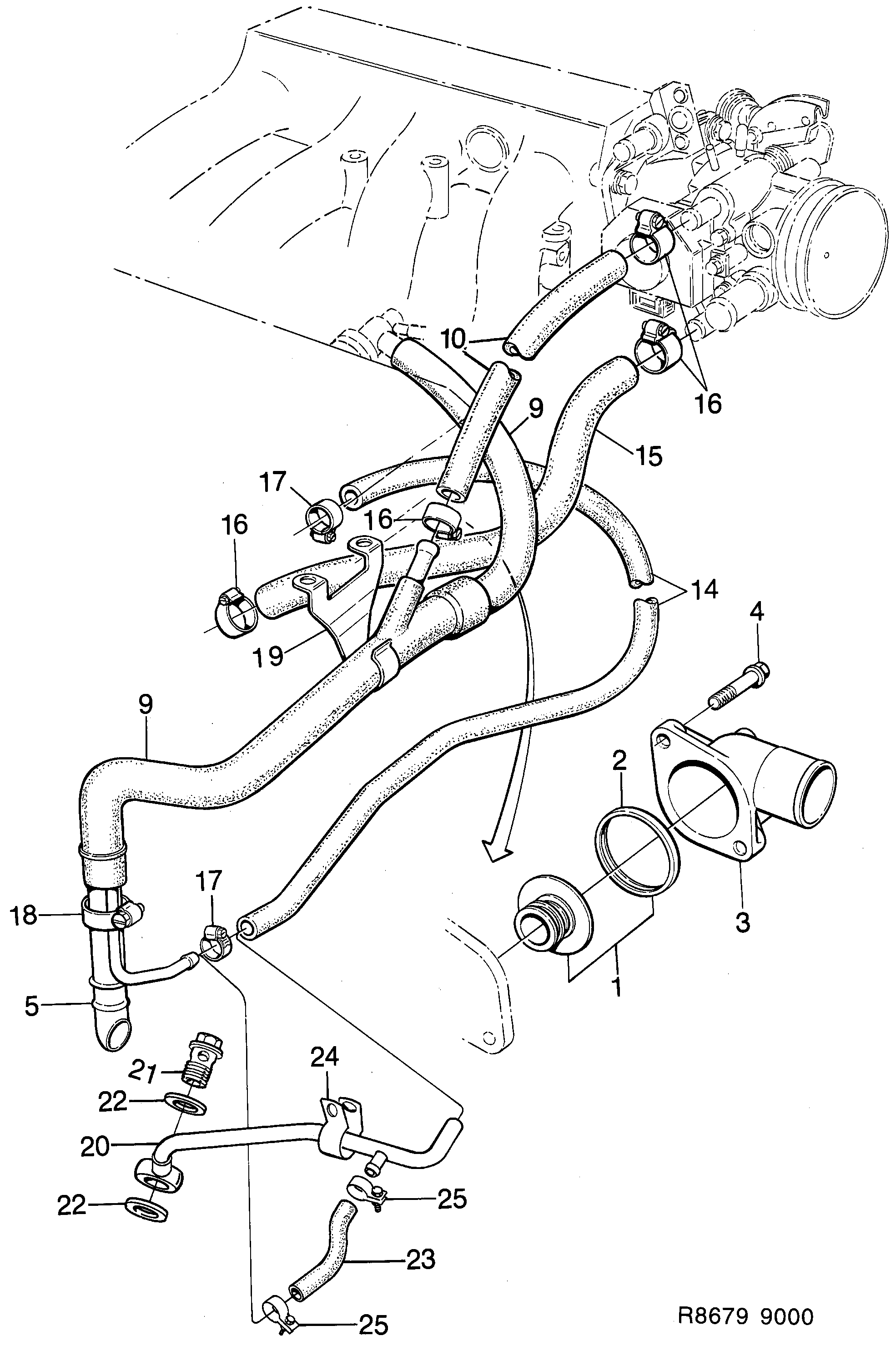

Saab 9000 Thermostat, etc diagram

Pos	Article	Part No.
1	Thermostat kit	30577561 (replaces 8817298)
1	Thermostat kit	8817538
2	Gasket	9176165 (replaces 8352692)
3	Cover	7500218
4	Screw	8125189
5	Tube	7522493
5	Tube	7588551
9	Hose	7519697
9	Hose	7561756
10	Hose	7520018
10	Hose	7520034
14	Hose	7520026
14	Hose	7567514
16	Hose clamp	90572589 (replaces 7963515)
17	Hose clamp	90530642 (replaces 8359275)
18	Hose clamp	7970064 (replaces 7963523)
19	Bracket	30539192 (replaces 7519788)
20	Tube	7583198
20	Tube	9116369
21	Screw	7583628
22	Gasket	8124158
23	Hose	30520450 (replaces 7567522)
23	Hose	30520450 (replaces 9116765)
24	Clamp	7583461
