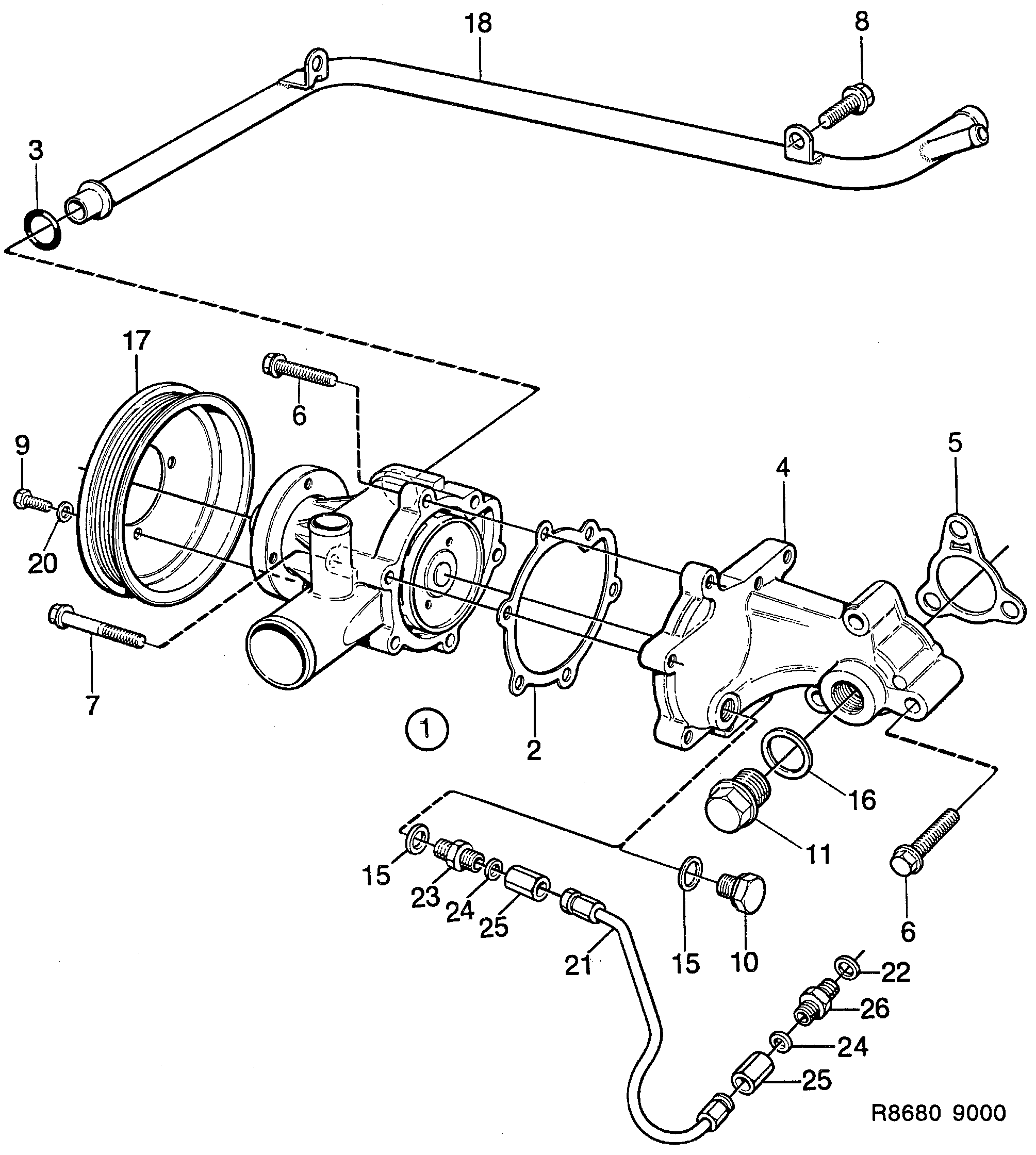

Group 2 Engine, section 1450
| Pos | Article | Part No. |
|---|---|---|
| 1 | Coolant pump | 9321670 (replaces 8817918) |
| 2 | Gasket | 7566581 |
| 3 | O-ring | 9146598 (replaces 7972698) |
| 4 | Bracket | 7507247 |
| 5 | Gasket | 7523897 |
| 6 | Screw | 8125197 |
| 7 | Screw | 8125239 |
| 8 | Screw | 8125148 |
| 9 | Screw | 7985930 (replaces 8019903) |
| 10 | Plug | 7563042 (replaces 7564222) |
| 10 | Plug | 7563042 (replaces 8123721) |
| 11 | Plug | 8123788 (replaces 7564230) |
| 11 | Plug | 8123788 |
| 15 | Gasket | 92150435 (replaces 8124141) |
| 16 | Gasket | 9116856 (replaces 8124208) |
| 17 | Pulley | 9359985 |
| 18 | Tube | 7515893 |
| 18 | Tube | 7585565 |
| 20 | Washer | 8073223 |
| 21 | Tube | 7582299 |
| 22 | Gasket | 8124158 |
| 23 | Nipple | 7587785 |
| 24 | Ferrule | 8132227 |
| 25 | Nut | 8145542 |
| 26 | Nipple | 7566789 |
| 26 | Nipple | 7584790 |
