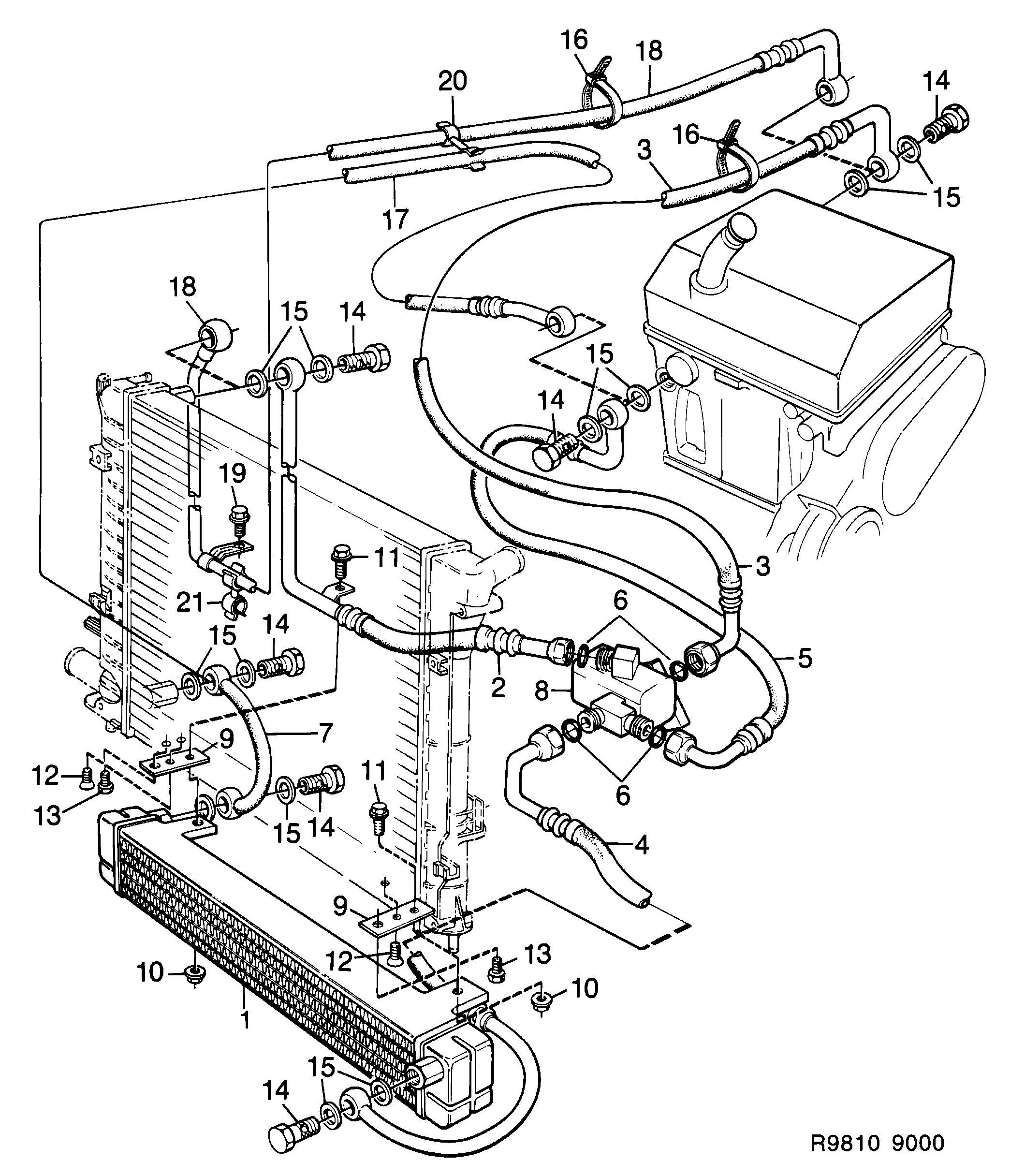

Group 2 Engine, section 1420
| Pos | Article | Part No. |
|---|---|---|
| 1 | Oil cooler | 7598311 |
| 2 | Hydraulic hose | 7577356 |
| 2 | Hydraulic hose | 7577364 |
| 3 | Hydraulic hose | 7573751 |
| 3 | Hydraulic hose | 4029294 |
| 4 | Hydraulic hose | 7573769 |
| 4 | Hydraulic hose | 4029302 |
| 5 | Hydraulic hose | 4029286 |
| 6 | O-ring | 7977580 |
| 7 | Hydraulic hose | 7559537 |
| 7 | Hydraulic hose | 7570823 |
| 8 | Thermostat | 7573777 |
| 9 | Bracket | 7570757 |
| 10 | Nut | 11900428 (replaces 7971658) |
| 10 | Nut | 92153044 (replaces 7974298) |
| 11 | Screw | 7965544 |
| 12 | Screw | 8056004 |
| 12 | Screw | 7399611 |
| 13 | Screw | 8019911 |
| 13 | Screw | 7399603 |
| 14 | Banjo screw | 12773569 (replaces 9301532) |
| 15 | Seal | 4161162 (replaces 8981961) |
| 16 | Clamp | 30507607 (replaces 7399116) |
| 16 | Tie strap | 30507607 (replaces 7593221) |
| 17 | Hydraulic hose | 7559735 |
| 17 | Hydraulic hose | 7559461 |
| 17 | Hydraulic hose | 4029344 |
| 17 | Hydraulic hose | 4029336 |
| 18 | Hydraulic hose | 7559487 |
| 18 | Hydraulic hose | 7559479 |
| 18 | Hydraulic hose | 4029310 |
| 18 | Hydraulic hose | 4029328 |
| 19 | Screw | 7969223 |
| 20 | Clamp | 7398464 |
| 21 | Clip | 92152223 (replaces 7559768) |
| Oil cooler kit | 7554538 | |
| Oil cooler kit | 7554546 |
