Saab 9000 1985-1989 Charge air cooler

Group 2 Engine, section 1330

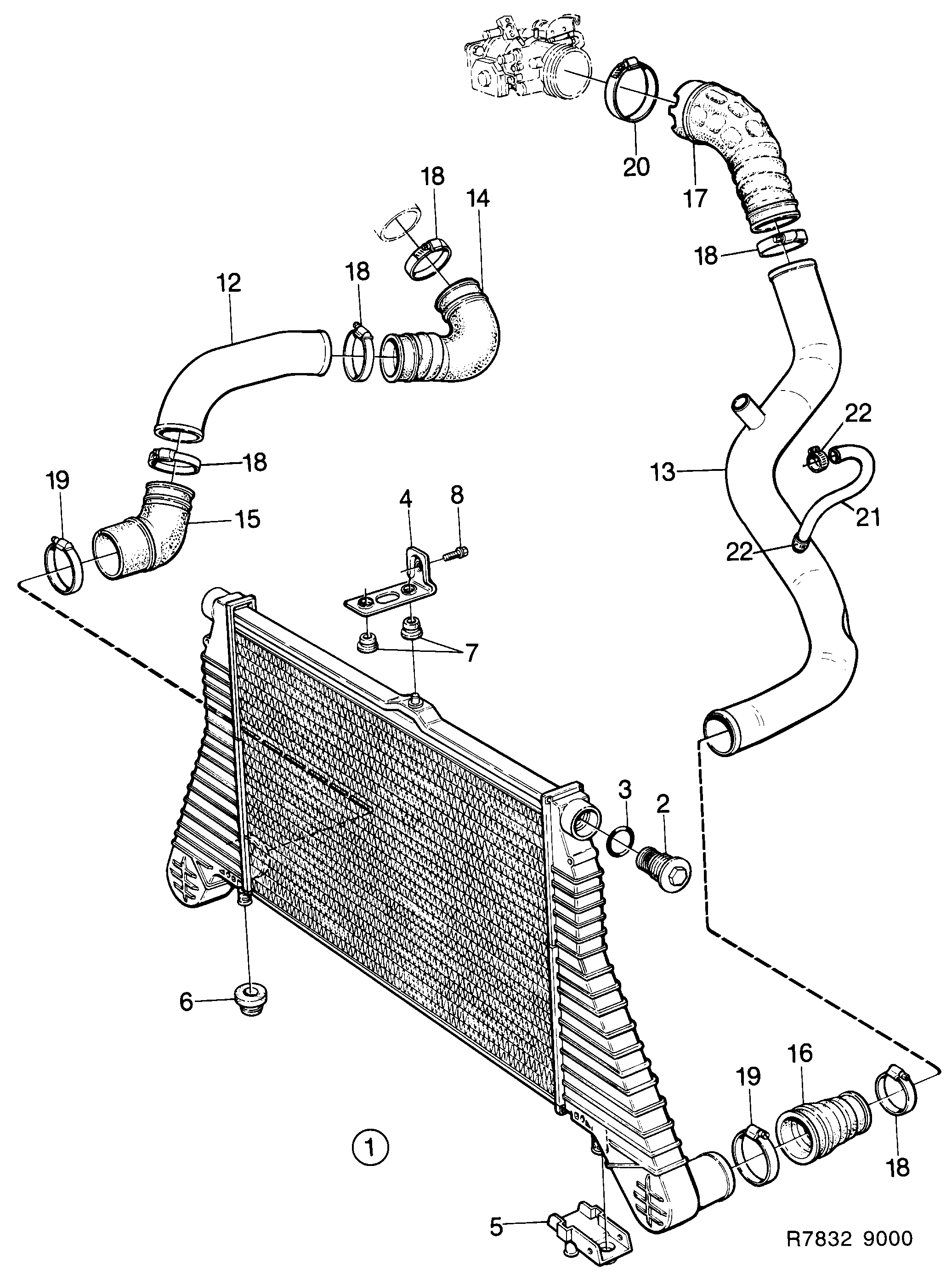

Saab 9000 Charge air cooler diagram

Pos	Article	Part No.
1	Radiator	9386871
1	Charge air cooler	7559776
2	Valve	7550023
3	O-ring	7972797
4	Bracket	7550346
5	Bracket	9381120
6	Rubber bushing	4027488 (replaces 7553894)
6	Rubber bushing	4027488
7	Rubber bushing	7550353
8	Screw	7972441
12	Tube	9381724
13	Tube	9389461
13	Pipe	7590805
13	Pipe	9390923
14	Hose	9387671
15	Hose	9387689
16	Hose	9387697
16	Hose	9390956
17	Hose	9387705
17	Hose	9391509
18	Hose clamp	92153077 (replaces 7970130)
19	Hose clamp	92153079 (replaces 7970148)
20	Hose clamp	92153080 (replaces 7970155)
21	Hose	9342627
22	Hose clamp	7973522
