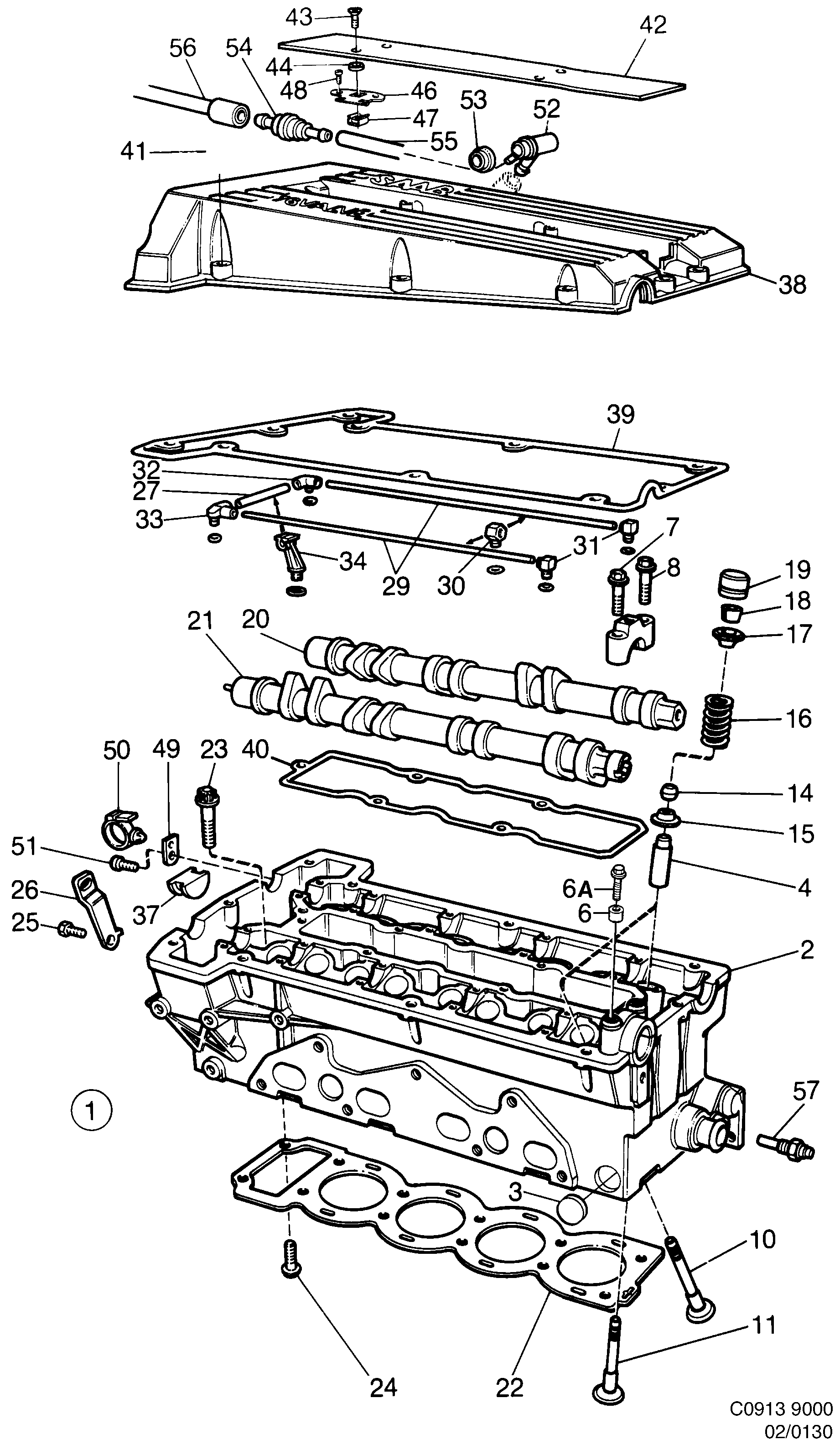

Group 2 Engine, section 130
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cylinder head | 7586100 |
| 2 | Cylinder head | 9358235 |
| 3 | Sealing washer | 8123218 |
| 4 | Valve guide | 7560154 |
| 6 | Guide sleeve | 7504566 |
| 6A | Screw | 92151833 (replaces 7504178) |
| 7 | Screw | 8125213 |
| 8 | Screw | 9358870 |
| 10 | Inlet valve | 7484801 (replaces 7562002) |
| 11 | Exhaust valve | 9165598 (replaces 7500085) |
| 14 | Seal | 7500713 |
| 15 | Washer | 7505134 |
| 16 | Spring | 9129651 (replaces 9358391) |
| 17 | Washer | 7501349 |
| 18 | Valve cone | 7515547 |
| 19 | Tappet | 55557388 (replaces 9357716) |
| 20 | Camshaft | 7560808 |
| 21 | Camshaft | 7560964 |
| 22 | Gasket | 9181348 (replaces 7516529) |
| 23 | Screw | 5955794 (replaces 7518335) |
| 24 | Screw | 8125189 |
| 25 | Screw | 7504749 |
| 26 | Lifting eye | 7521222 |
| 27 | Pipe | 7508468 |
| 29 | Pipe | 7508476 |
| 30 | Nipple | 7480429 |
| 31 | Nipple | 7480437 |
| 32 | Nipple | 7480445 |
| 33 | Nipple | 7480452 |
| 34 | Nipple | 7480460 |
| 37 | Plug | 7500069 |
| 38 | Valve cover | 5959416 (replaces 7522303) |
| 39 | Gasket | 7520380 |
| 40 | Gasket | 9359647 |
| 41 | Screw | 7560931 |
| 42 | Cover | 7503709 |
| 43 | Screw | 7522790 (replaces 7503725) |
| 44 | Retaining ring | 5331673 (replaces 8123465) |
| 46 | Bracket | 7503469 |
| 47 | Cage nut | 7970403 |
| 48 | Screw | 7520240 |
| 49 | Bracket | 7511975 |
| 50 | Tie strap | 7512015 |
| 51 | Screw | 8082935 |
| 52 | Nipple | 7517048 |
| 53 | Bushing | 9549593 (replaces 7515190) |
| 54 | Positive crankcase ventilation valve | 9189564 (replaces 7521313) |
| 55 | Vaccum hose | 9136243 |
| 57 | Sensor | 30539720 (replaces 8800914) |
| Gasket kit | 8817512 | |
| Gasket kit | 8818007 |
