Saab 9000 1990-1993 Throttle housing

Group 2 Engine, section 1280

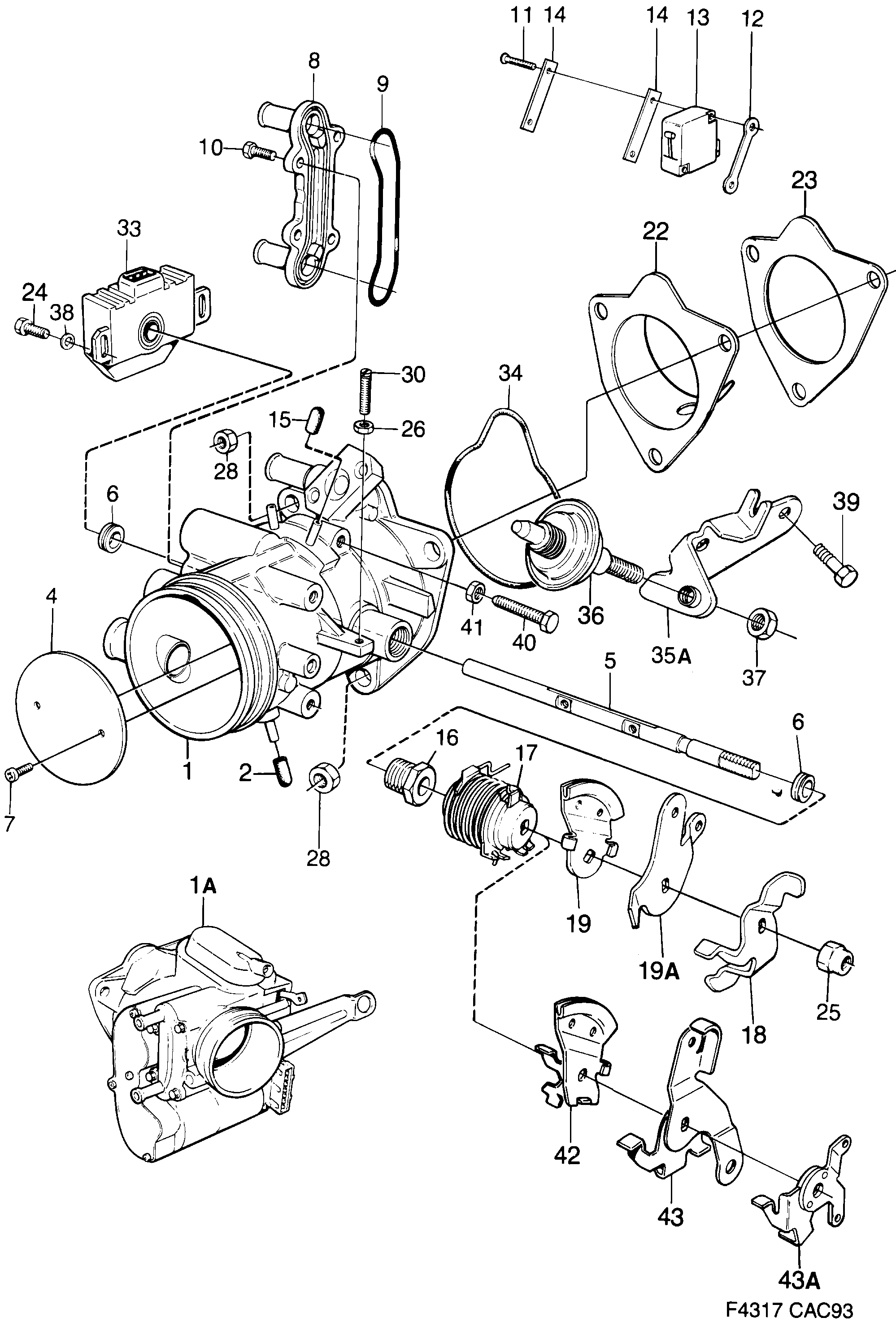

Saab 9000 Throttle housing diagram

Pos	Article	Part No.
1	Throttle body	9119215
1	Throttle body	9119249
1	Throttle body	9116724
1	Throttle body	7871437
1	Throttle body	9119231
1	Throttle body	9119223
1	Throttle body	7871395
1	Throttle body	9119207
1	Throttle body	9116716
1	Throttle body	9116963
1	Throttle body	9117656
1	Throttle body	9107616
1	Throttle body	9119181
1	Throttle body	9119199
1	Throttle body	7871387
1	Throttle body	9107608
1A	Throttle body	8822348 (replaces 8982001)
1A	Throttle body	8822348 (replaces 9109075)
2	Plug	8335614 (replaces 8360463)
4	Shutter	8353484
5	Shutter shaft	8057259 (replaces 7504673)
5	Shutter shaft	9107624
5	Shutter shaft	9128224
6	Seal	8357345
7	Screw	8059073
7	Screw	8057259
8	Cover	7505423
9	O-ring	7506264
10	Screw	7985187 (replaces 7507080)
11	Screw	8096364
12	Bracket	7564834
13	Switch	7588270
14	Washer	7564065
15	Plug	8335614
16	Plug	9359050
17	Return spring	7516974
18	Lever	7566276
19	Cam disc	7566300
19A	Lever	7483183
22	Air shield	7856446
23	Gasket	7856479
24	Screw	7482490
24	Screw	7985187
25	Nut	11900440 (replaces 8074288)
25	Nut	11900440 (replaces 9166406)
26	Nut	8151045
28	Nut	11900429 (replaces 8151326)
30	Set screw	4087706 (replaces 8007486)
33	Potentiometer	7501612
33	Throttle position sensor	8857195
34	O-ring	7521875
35A	Bracket	7566284
36	Absorber	9314501
37	Nut	8069015
38	Washer	32000431 (replaces 8029936)
39	Screw	8125007
40	Screw	8357378
41	Nut	8050601
42	Lever	7855992
42	Cam disc	9127168
43	Lever	7856008
43A	Lever	9127176
