Saab 9000 1990-1993 Inlet manifold

Group 2 Engine, section 1250

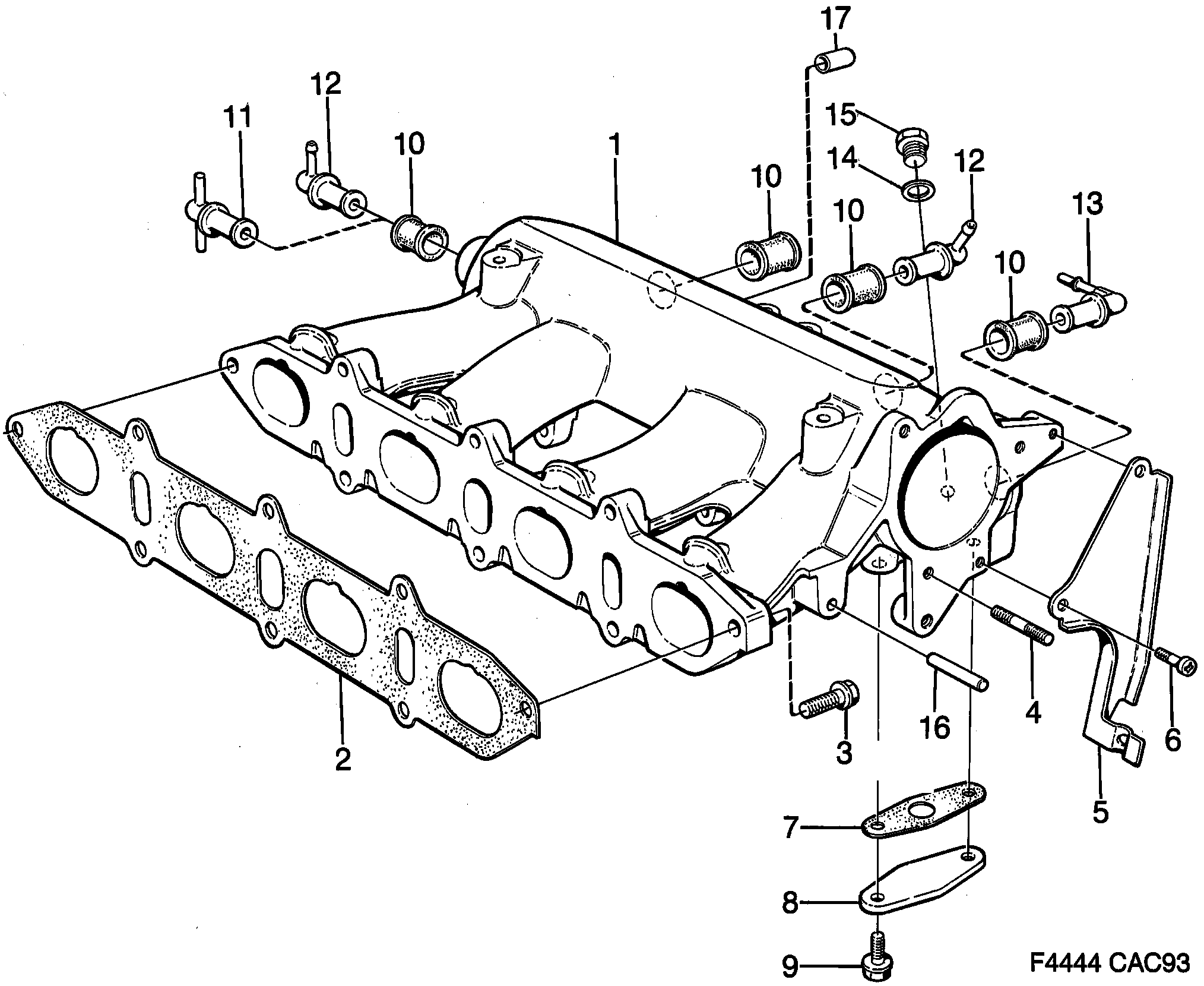

Saab 9000 Inlet manifold diagram

Pos	Article	Part No.
1	Intake manifold	9109869
1	Intake manifold	9134438
1	Intake manifold	9146689
2	Gasket	9126277
3	Screw	8125197
4	Stud	8005928
4	Stud	8005910
5	Bracket	30539181 (replaces 9115445)
6	Screw	7971294
7	Gasket	7507973
8	Flange	9358177
9	Screw	8125007
10	Bushing	7515208
10	Plug	8132045
11	Nipple	9116088
12	Nipple	8359937
12	Nipple	4346508
13	Nipple	9107699
14	Gasket	8124125
15	Plug	8789323
16	Spring pin	8049827
17	Plug	8335614 (replaces 8360463)
