Saab 9000 1985-1989 Radiator, etc

Group 2 Engine, section 1240

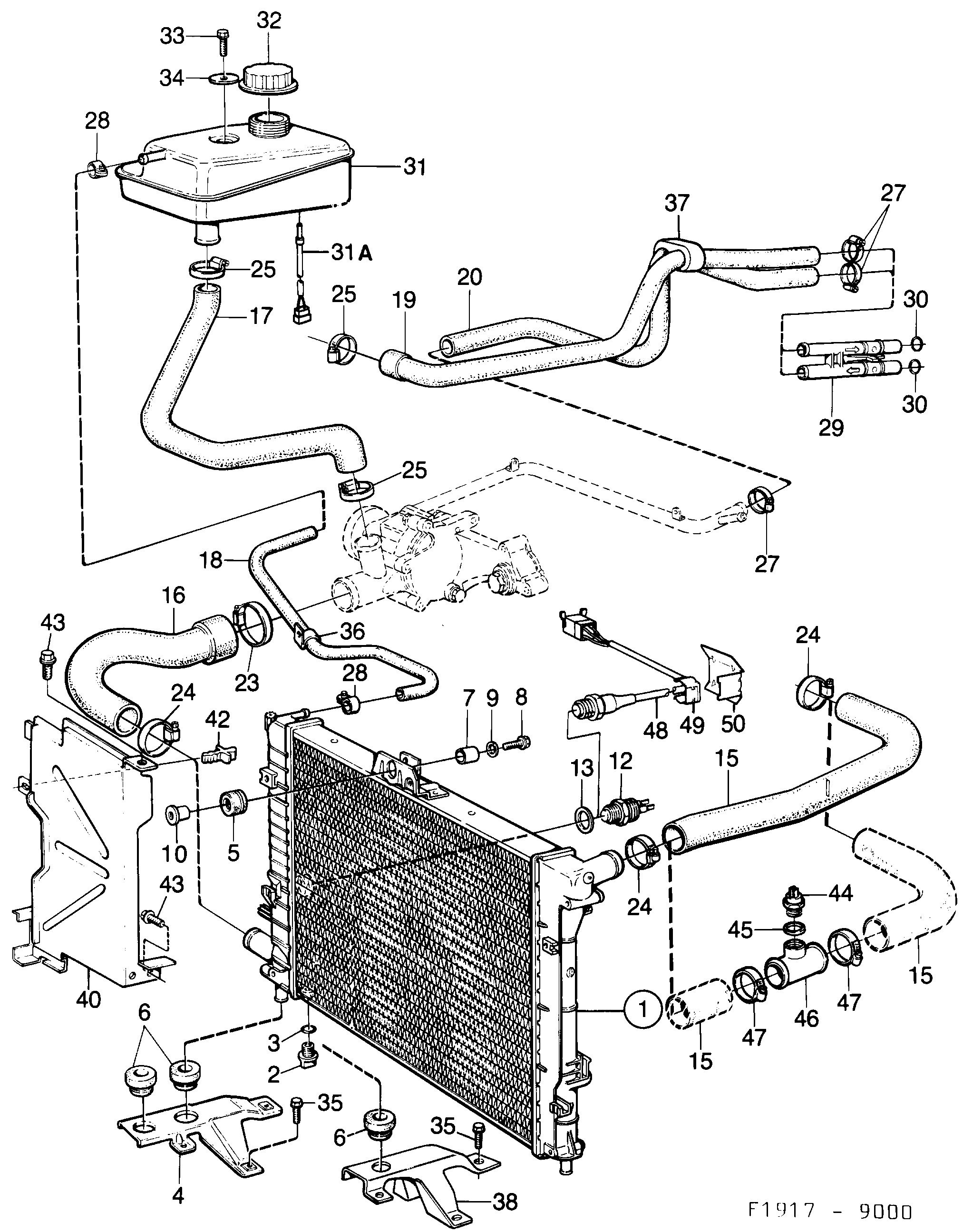

Saab 9000 Radiator, etc diagram

Pos	Article	Part No.
1	Radiator	7599194 (replaces 9382649)
1	Radiator	9382656
1	Radiator	7599194 (replaces 7550080)
1	Radiator	7550098
2	Draining plug	9385824
3	O-ring	7975725
4	Bracket	7576382
5	Rubber bushing	9377334
6	Rubber bushing	4027488 (replaces 7553894)
6	Rubber bushing	4027488
7	Rubber bushing	7553415
8	Screw	8021917
8	Screw	7978133
9	Washer	7987506 (replaces 7975469)
10	Nut	7553308
10	Nut	7576200
12	Thermo contact	4086708 (replaces 9526518)
13	Seal	9386285
15	Hose	4876363 (replaces 7551187)
15	Hose	4876363 (replaces 4356598)
16	Hose	9383670
16	Hose	9383688
16	Hose	9383662
17	Hose	7554009
17	Hose	7554017
18	Hose	7550130
18	Hose	7550148
18	Hose	7576226
18	Hose	7576234
18	Hose	7550122
19	Hose	7554025
19	Hose	4356606
20	Hose	7554033
23	Hose clamp	7970122
24	Hose clamp	7970114
25	Hose clamp	7970098
27	Hose clamp	7970072
28	Hose clamp	7970031
29	Snap-on coupling	9385709
30	O-ring	7974975
31	Expansion tank	9380890
31	Expansion tank	7554306
31	Expansion tank	8786055
31A	Engine coolant level sensor	7554348
32	Cover	4395570 (replaces 7577323)
33	Screw	8084063
34	Washer	8371650
35	Screw	8019895
36	Clip	11900515 (replaces 8536419)
36	Tie strap	11900513 (replaces 7971880)
37	Grommet	7559081
37	Grommet	7598212
38	Bracket	7576390
40	Cover plate	4118360 (replaces 7550015)
42	Rubber strap	9385832
43	Screw	7971823
44	Thermo contact	4086724 (replaces 9526526)
45	Seal	8330268
46	Tube	7576960
48	Thermo contact	4086690 (replaces 9569054)
48	Thermo contact	4086682 (replaces 9567967)
49	Clip	4060083
50	Protection	4060091
50	Protection	4063459
