Saab 9000 1994-1998 Throttle housing 4-cylinder

Group 2 Engine, section 1230

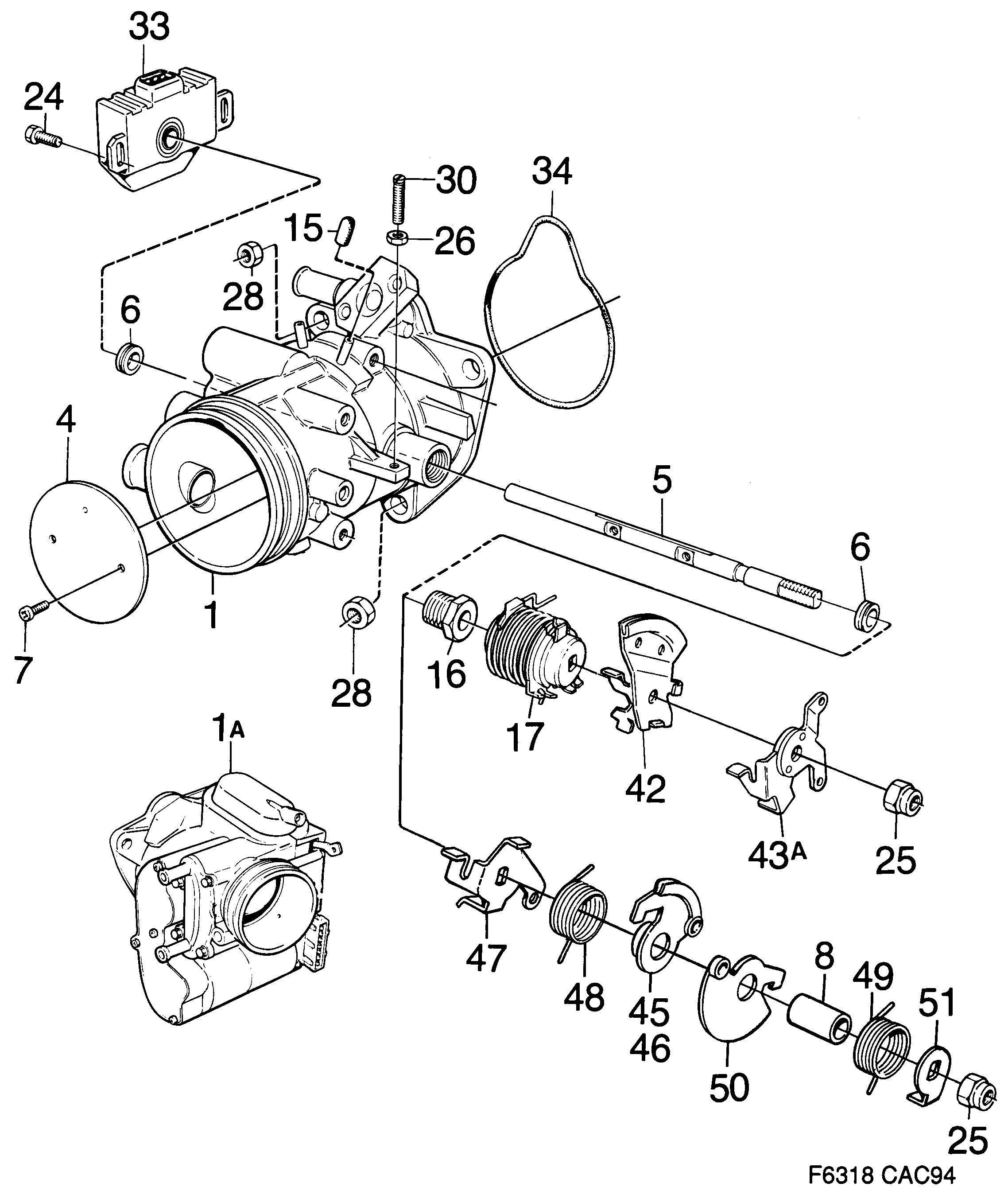

Saab 9000 Throttle housing 4-cylinder diagram

Pos	Article	Part No.
1	Throttle body	7871437
1	Throttle body	9107616
1A	Throttle body	8822348
	Throttle body	30555949 (replaces 9170705)
	Cable terminal	4063087
4	Shutter	8353484
5	Shutter shaft	9128224
5	Shutter shaft	9170424
6	Seal	8357345
7	Screw	8057259
8	Bearing sleeve	9170432
15	Plug	8335614
16	Plug	9359050
17	Return spring	7516974
24	Screw	7985187
24	Screw	92151805 (replaces 8059230)
25	Nut	11900440 (replaces 9166406)
26	Nut	8151045
28	Nut	11900429 (replaces 7967953)
30	Set screw	4087706
33	Throttle position sensor	8857195
33	Throttle position sensor	4661062
33	Potentiometer	9181538
34	O-ring	7521875
42	Cam disc	9127168
43A	Lever	9127176
45	Cam disc	9170044
46	Cam disc	9170051
47	Lever	9170457
48	Torsion spring	9169251
49	Torsion spring	9169269
50	Cam disc	9170069
51	Companion flange	9169194
