Saab 9000 1990-1991 Inlet manifold

Group 2 Engine, section 1190

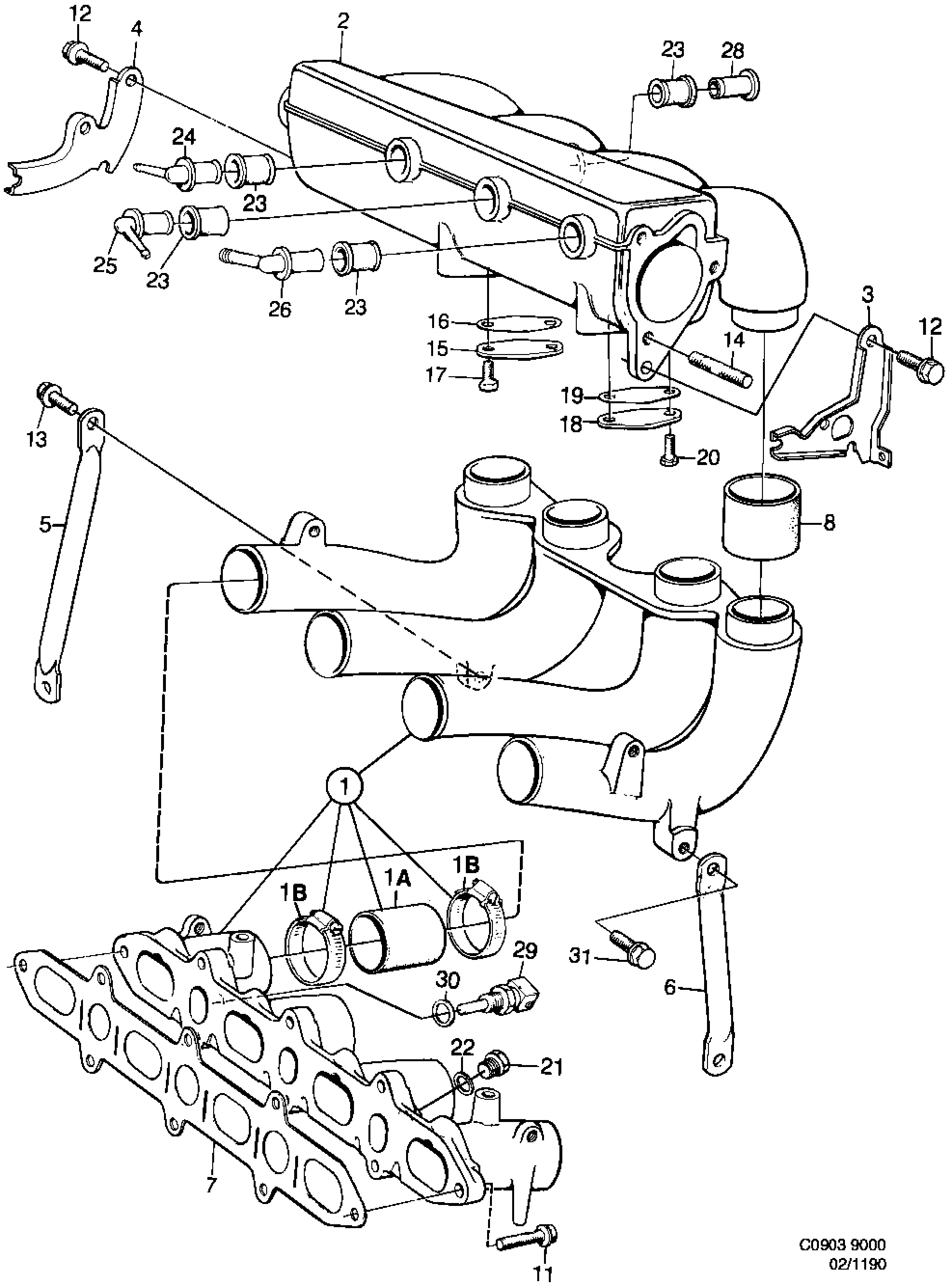

Saab 9000 Inlet manifold diagram

Pos	Article	Part No.
1	Intake manifold	8789513
1A	Hose	93167178 (replaces 8789588)
1B	Hose clamp	92153077 (replaces 7970130)
2	Intake manifold	8789489
3	Anchorage	8789570
4	Anchorage	8789562
5	Brace	9113531
6	Brace	8789695
7	Gasket	9126277 (replaces 7584451)
8	Hose	93167179 (replaces 8789596)
11	Screw	8125197
12	Screw	55562121 (replaces 8125155)
13	Screw	8125163
14	Stud	8005910
15	Flange	7586860
16	Gasket	7586878
17	Screw	8019895
17	Screw	7985930 (replaces 8125015)
18	Flange	9358177
19	Gasket	7507973
21	Plug	8789323
22	Gasket	8124125
23	Bushing	7515208
24	Nipple	8359937
26	Nipple	8357543
28	Plug	9114000
31	Screw	92150014 (replaces 7978208)
