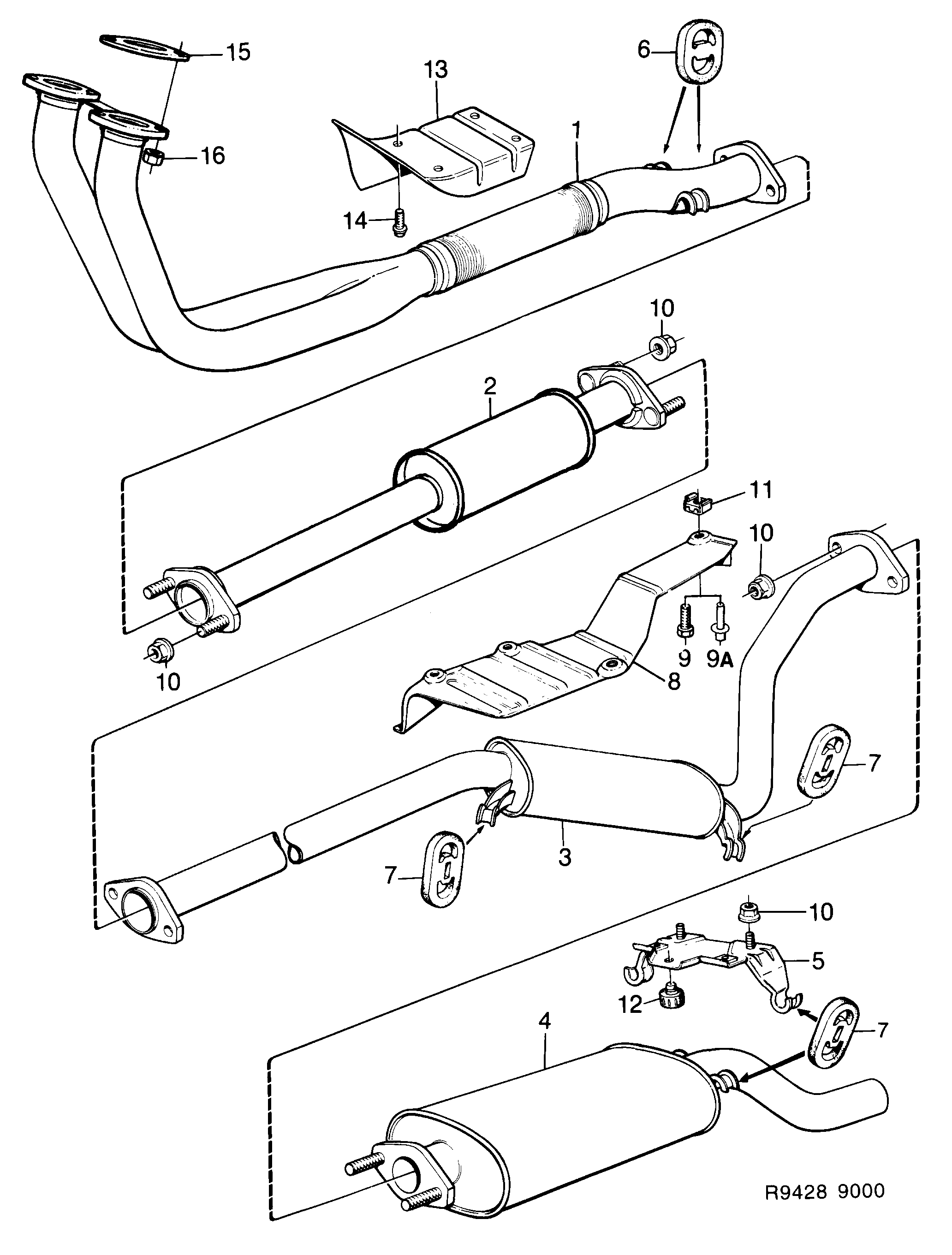

Group 2 Engine, section 1180
| Pos | Article | Part No. |
|---|---|---|
| 1 | Exhaust pipe | 7478027 (replaces 9390972) |
| 1 | Exhaust pipe | 9392929 |
| 2 | Muffler | 5466891 (replaces 8822322) |
| 3 | Muffler | 5466107 |
| 3 | Muffler | 5466123 |
| 4 | Muffler | 5466131 |
| 4 | Muffler | 4024956 |
| 4 | Muffler | 5466818 (replaces 8822231) |
| 4 | Muffler | 4156014 |
| 4 | Muffler | 5467048 (replaces 8979155) |
| 4 | Muffler | 4156030 |
| 5 | Hook | 9394685 |
| 5 | Hook | 8977936 |
| 6 | Rubber mounting | 9392465 |
| 7 | Rubber mounting | 9328105 |
| 8 | Heat shield | 9392473 |
| 8 | Shield | 4022505 (replaces 9394073) |
| 8 | Heat shield | 4022505 (replaces 4022604) |
| 9 | Screw | 7528953 (replaces 7971757) |
| 9A | Rivet | 9393968 |
| 9A | Rivet | 7591480 |
| 10 | Nut | 11900429 (replaces 7967953) |
| 11 | Cage nut | 7970437 |
| 12 | Plug | 9388588 |
| 13 | Heat shield | 7564321 |
| 14 | Screw | 8125130 |
| 15 | Gasket | 8980328 |
| 16 | Nut | 7979503 (replaces 7967870) |
