Saab 9000 1994-1998 Inlet manifold

Group 2 Engine, section 1170

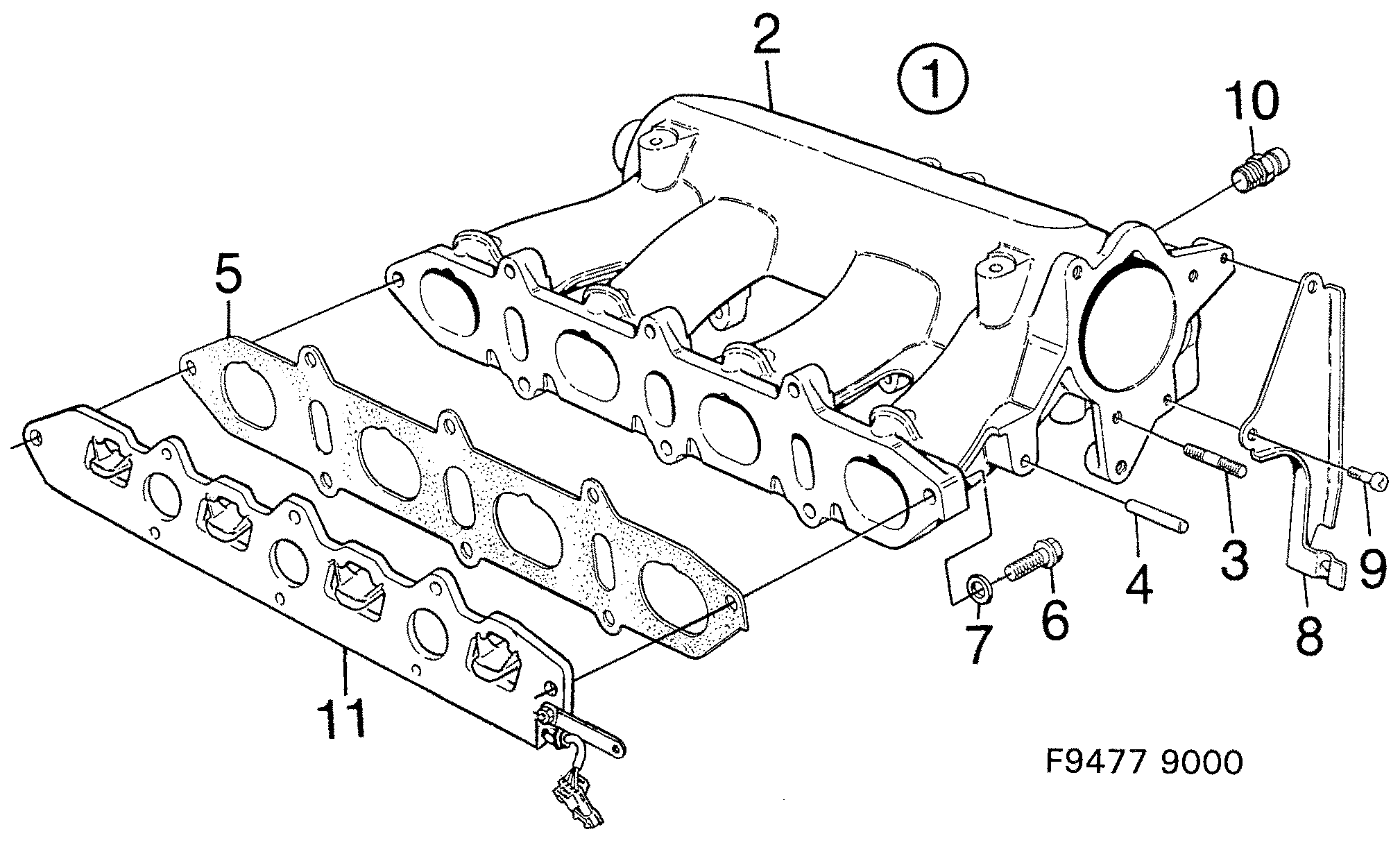

Saab 9000 Inlet manifold diagram

Pos	Article	Part No.
1	Intake manifold	9177148
2	Intake manifold	9177924
3	Stud	8005910
4	Spring pin	8049827
5	Gasket	9138884
6	Screw	11900368 (replaces 4087805)
6	Screw	11900368 (replaces 7978224)
7	Washer	92153033 (replaces 8029985)
8	Bracket	9168915
8	Bracket	9181926
9	Screw	11900353 (replaces 7978091)
10	Nipple	4346508
11	Intake air heat plate	30556715 (replaces 9166000)
