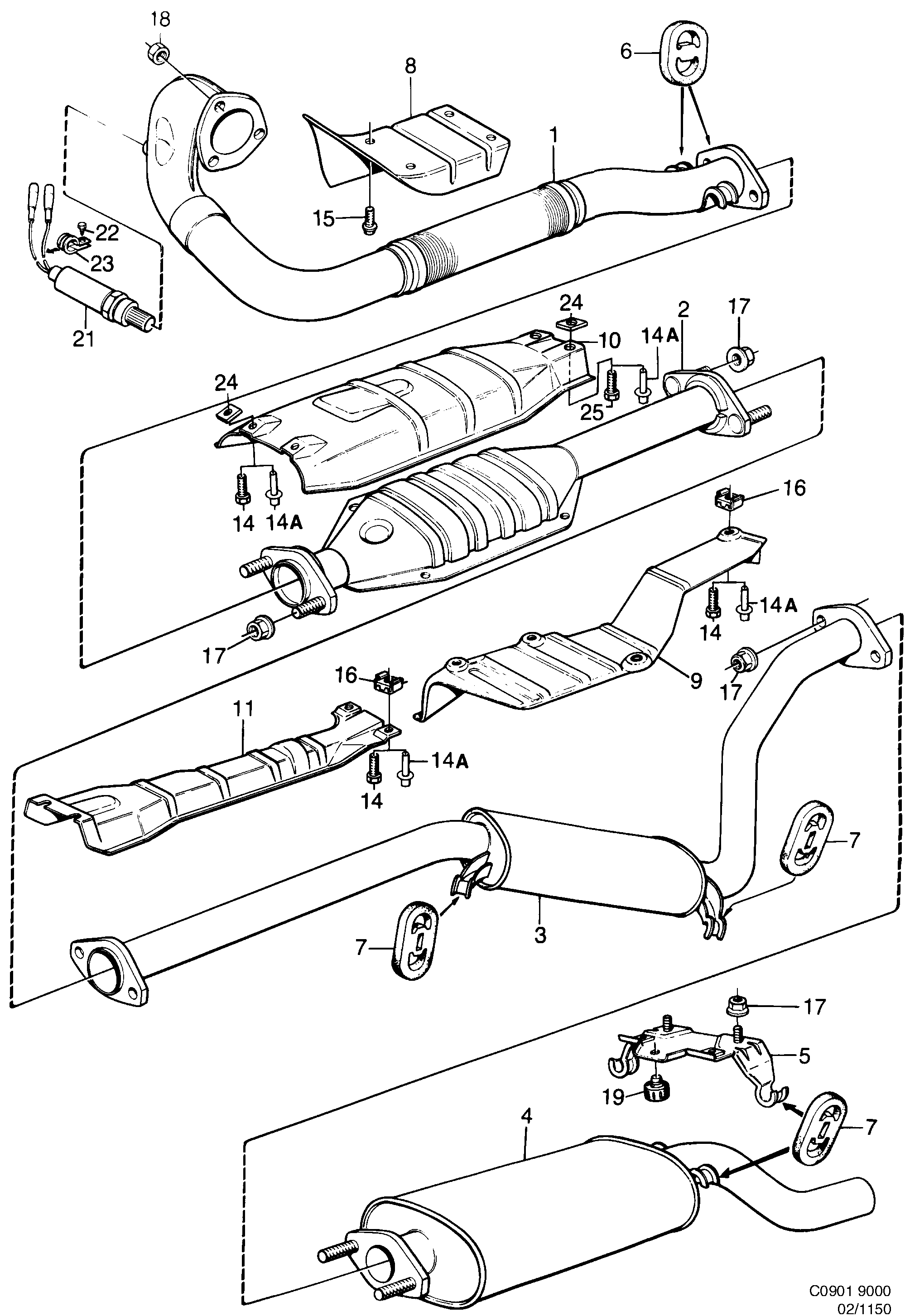

Group 2 Engine, section 1150
| Pos | Article | Part No. |
|---|---|---|
| 1 | Exhaust pipe | 5466156 |
| 2 | Three way catalytic converter | 4750030 (replaces 9392598) |
| 2 | Three way catalytic converter | 4750030 (replaces 9392457) |
| 2 | Three way catalytic converter | 4440020 |
| 3 | Muffler | 5466149 |
| 3 | Muffler | 5466123 |
| 4 | Muffler | 8975062 |
| 4 | Muffler | 5466115 |
| 4 | Muffler | 9393349 |
| 4 | Muffler | 8979163 |
| 5 | Hook | 9394685 |
| 5 | Hook | 8977936 |
| 6 | Rubber mounting | 9392465 |
| 7 | Rubber mounting | 9328105 |
| 8 | Heat shield | 7564321 |
| 9 | Heat shield | 9392473 |
| 9 | Shield | 4022505 (replaces 9394073) |
| 9 | Heat shield | 4022505 (replaces 4022604) |
| 10 | Shield | 9386244 |
| 10 | Shield | 9394057 |
| 10 | Heat shield | 4022588 |
| 11 | Shield | 9386251 |
| 11 | Shield | 9394065 |
| 11 | Heat shield | 4022596 |
| 14 | Screw | 7528953 |
| 14A | Rivet | 9393968 |
| 14A | Rivet | 7591480 |
| 15 | Screw | 8125130 |
| 16 | Cage nut | 7970437 |
| 17 | Nut | 11900429 (replaces 7967953) |
| 18 | Nut | 92152032 (replaces 7519432) |
| 19 | Plug | 9388588 |
| 21 | Oxygen sensor | 9392762 |
| 22 | Screw | 7528953 (replaces 7971757) |
| 23 | Clamp | 7398803 |
| 24 | Cage nut | 7977374 |
| 25 | Screw | 8262958 |
| Catalytic converter kit | 8819260 | |
| Catalytic converter kit | 4393799 | |
| Catalytic converter kit | 4393807 |
