Saab 9000 1990-1990 Inlet manifold

Group 2 Engine, section 1130

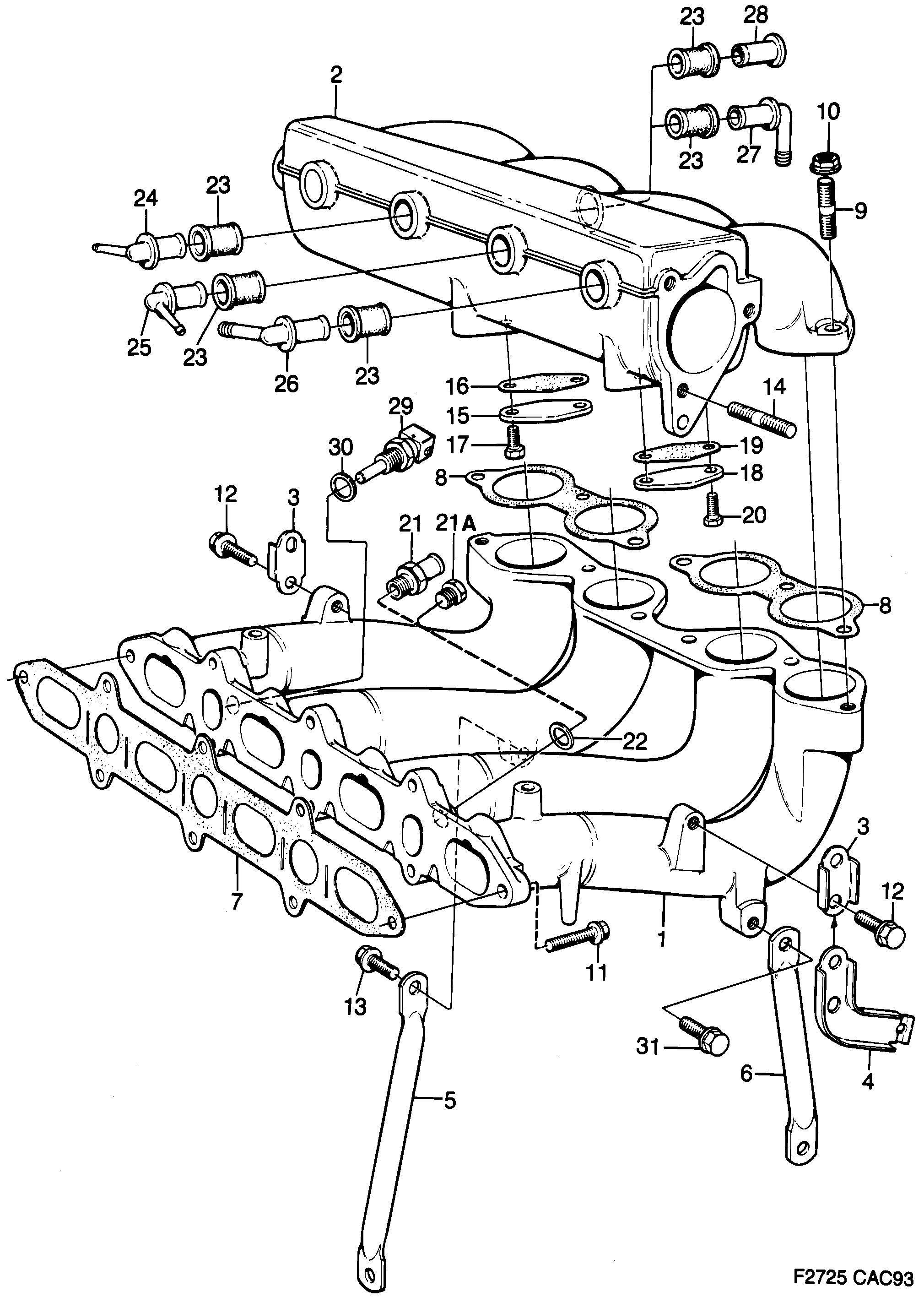

Saab 9000 Inlet manifold diagram

Pos	Article	Part No.
1	Intake manifold	8788317
2	Intake manifold	8788333
3	Brace	9113556
4	Brace	9118365
5	Brace	9113531
6	Brace	8789695
7	Gasket	9126277 (replaces 7584451)
8	Gasket	9115460
9	Stud	8005936
10	Nut	11900429 (replaces 8151326)
11	Screw	8125197
12	Screw	55562121 (replaces 8125155)
13	Screw	8125163
14	Stud	8005910
15	Flange	7586860
16	Gasket	7586878
17	Screw	8019895
18	Flange	9358177
19	Gasket	7507973
21	Nipple	7486806
21A	Plug	7563042 (replaces 8123721)
22	Seal	4161162 (replaces 8981961)
22	Seal	4161162 (replaces 8326712)
23	Bushing	7515208
24	Nipple	8359937
26	Nipple	8357543
28	Plug	9114000
31	Screw	92150014 (replaces 7978208)
