Saab 9000 1994-1998 Inlet manifold

Group 2 Engine, section 1110

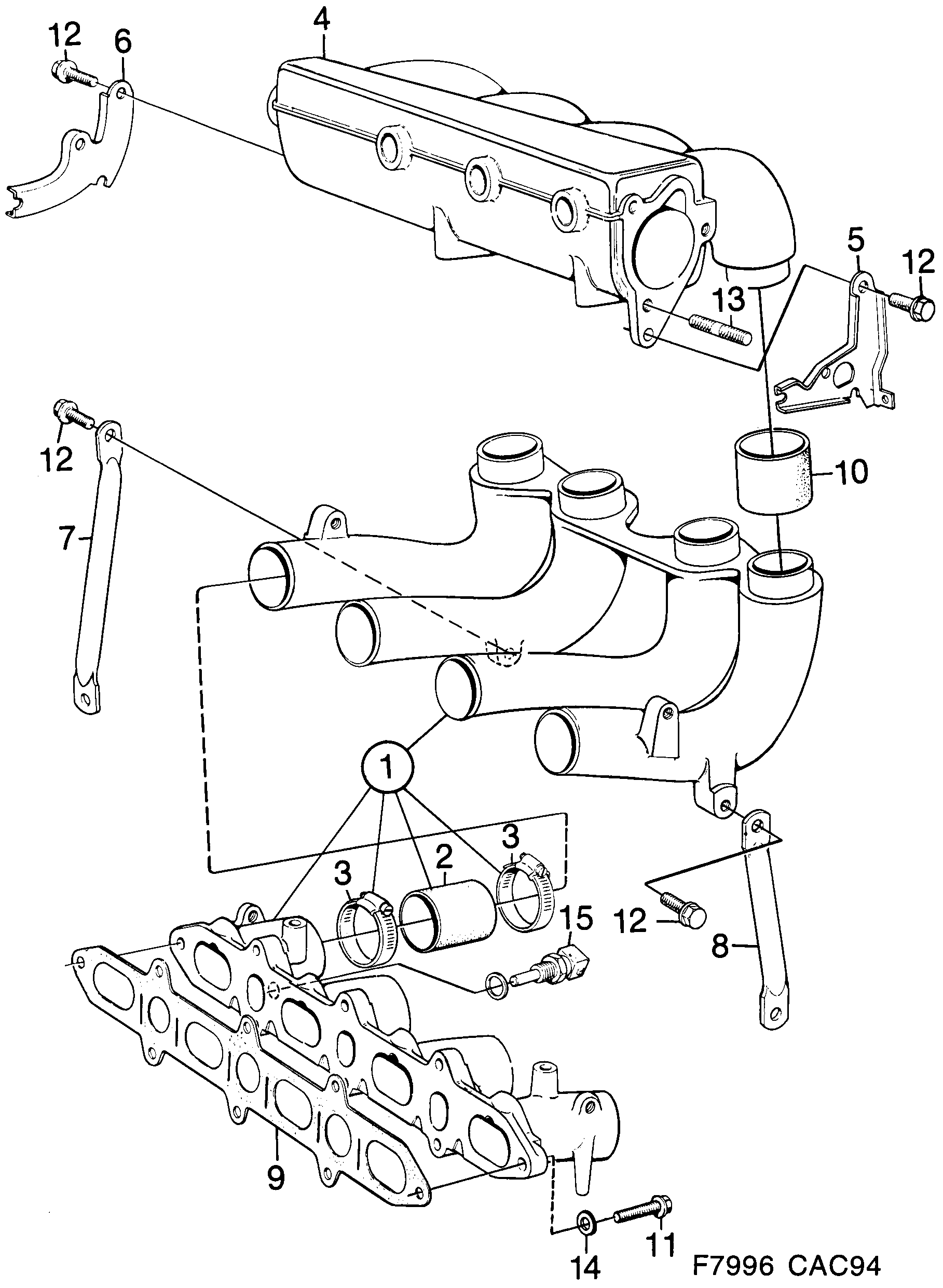

Saab 9000 Inlet manifold diagram

Pos	Article	Part No.
1	Intake manifold	9144171
2	Hose	9134727
3	Hose clamp	92153077 (replaces 7970130)
4	Intake manifold	9167560
5	Anchorage	8789570
5	Bracket	9168907
5	Bracket	30564466 (replaces 9181918)
6	Anchorage	8789562
7	Brace	9148784
8	Brace	9148792
9	Gasket	9138884
10	Hose	93167179 (replaces 9134735)
11	Screw	7970015
11	Screw	11900368 (replaces 4087805)
11	Screw	11900368 (replaces 7978224)
12	Screw	8059776
13	Stud	8005910
14	Washer	92153033 (replaces 8029985)
