Saab 9000 1990-1993 Inlet manifold, parted

Group 2 Engine, section 1100

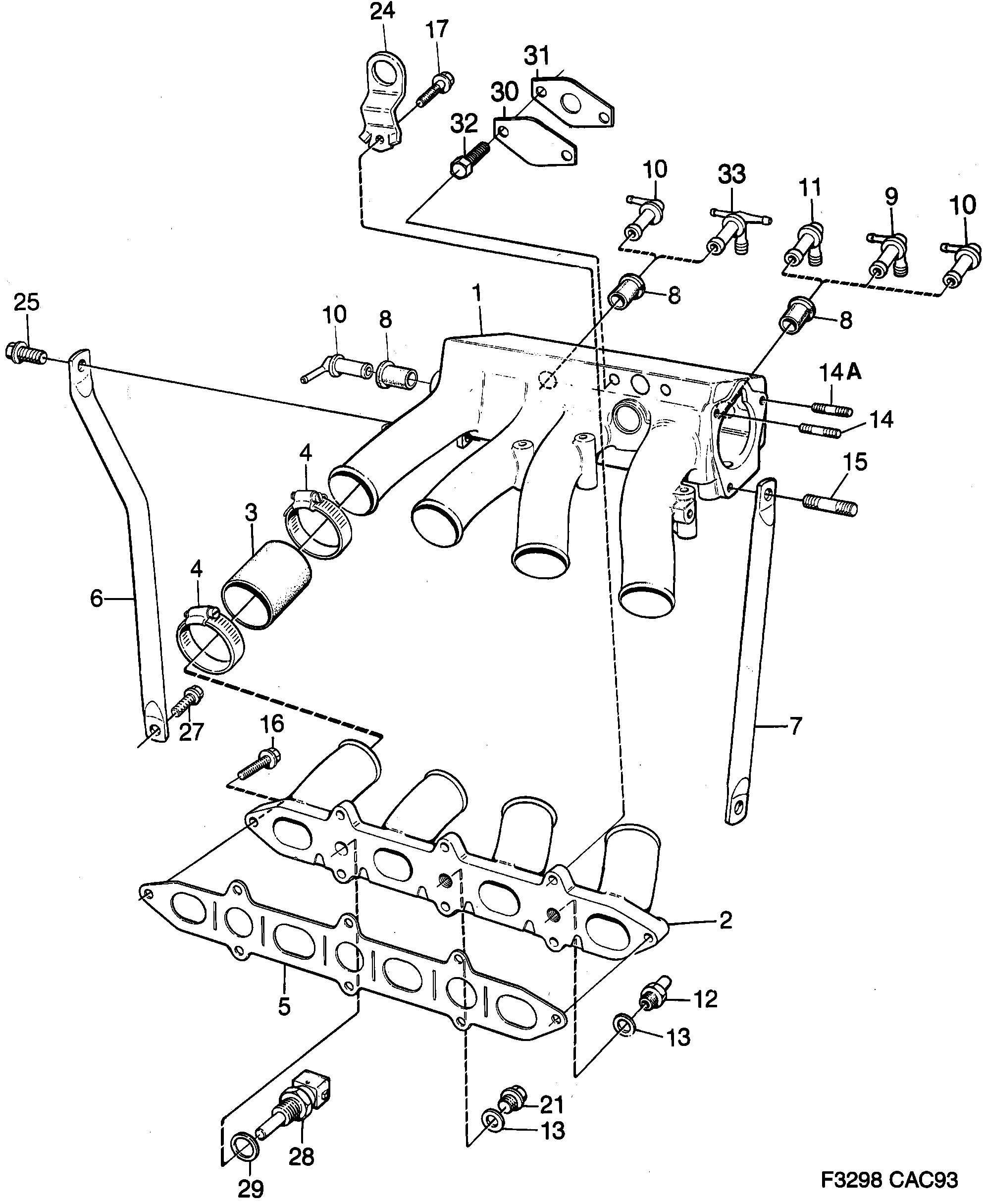

Saab 9000 Inlet manifold, parted diagram

Pos	Article	Part No.
1	Intake manifold	8786584
2	Intake manifold	7484363
3	Hose	7566748
4	Hose clamp	7970122
5	Gasket	7584436
6	Brace	8788580
7	Brace	8788572
8	Bushing	7515208
9	Nipple	9312802
10	Nipple	8359937
11	Nipple	8357543
12	Nipple	7486806
13	Seal	4161162 (replaces 8326712)
14	Stud	8005910
14A	Stud	8005928
15	Stud	8005936
16	Screw	8125197
17	Screw	8125205
21	Plug	7563042 (replaces 8123721)
24	Lifting eye	7521230
25	Screw	8125163
27	Screw	55562121 (replaces 8125155)
30	Flange	7586860
31	Gasket	7586878
32	Screw	8019895
33	Nipple	7522477
