Saab 9000 1990-1993 Engine suspension

Group 2 Engine, section 110

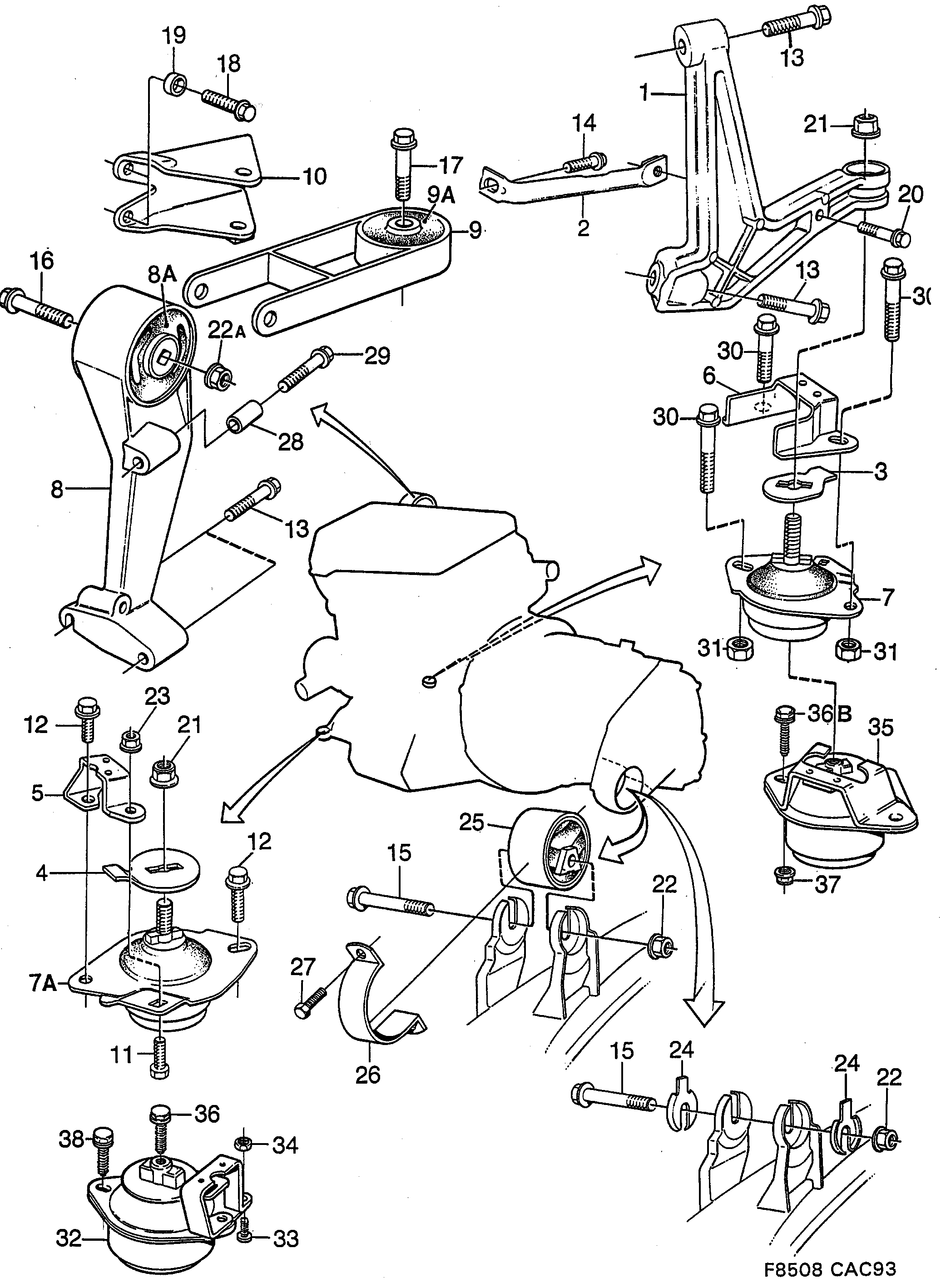

Saab 9000 Engine suspension diagram

Pos	Article	Part No.
1	Bracket	7577695
2	Brace	7550528
3	Limiter	7551971
4	Limiter	7551963
5	Stop, shoulder	4028775
6	Stop, shoulder	4027520
7	Vibration damper	8786006
7A	Vibration damper	8786006 (replaces 7592975)
8	Engine mountings	7577554
8	Engine mountings	32026107 (replaces 7596521)
8A	Rubber cushion	7576333
9	Torque rod	7599913
10	Bracket	8786071
10	Bracket	7573413
11	Screw	7551385
12	Screw	7982721 (replaces 7982143)
13	Screw	7972292
14	Screw	7973779
15	Screw	7973571
16	Screw	7977267
17	Screw	7974777
18	Screw	8082943
19	Spacer	7577893
21	Nut	92153201 (replaces 7971765)
21	Nut	92153201 (replaces 7979552)
22	Nut	7967979
23	Nut	11900428 (replaces 7971658)
24	Washer	9319294
25	Vibration damper	4165312 (replaces 7551831)
26	Cap	7551328
27	Screw	7970288
28	Spacer	7536857
29	Screw	8029985 (replaces 7973803)
29	Screw	92150019 (replaces 7978257)
30	Screw	7982127
31	Lock nut	7969306
32	Vibration damper	4165494 (replaces 7599848)
35	Vibration damper	4165510 (replaces 7599855)
36B	Screw	7982721
