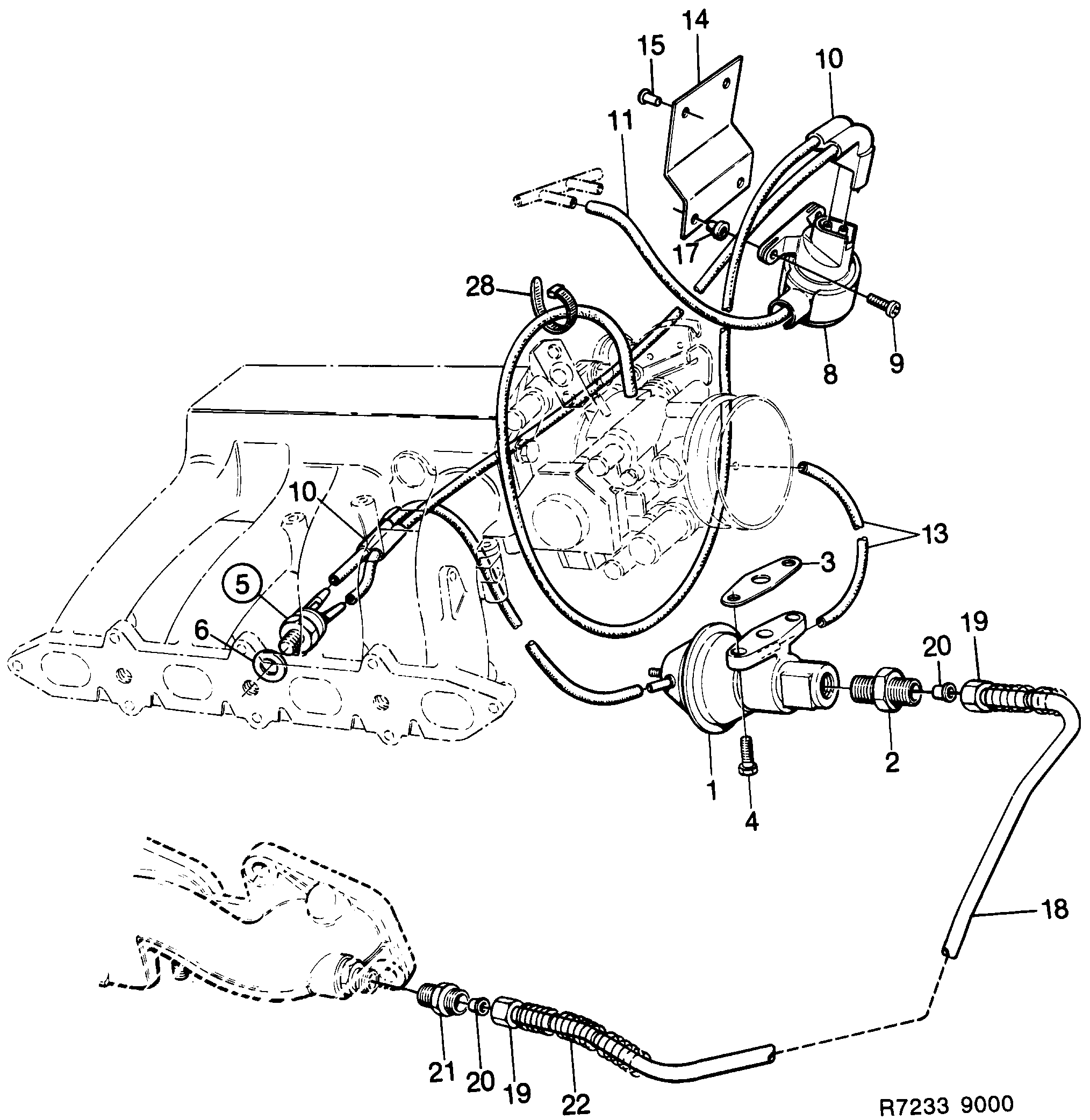

Group 2 Engine, section 1000
| Pos | Article | Part No. |
|---|---|---|
| 1 | Exhaust gas recirculation valve | 7504004 |
| 1 | Exhaust gas recirculation valve | 7508393 |
| 1 | Exhaust gas recirculation valve | 9350208 |
| 2 | Nipple | 7506652 |
| 2 | Nipple | 7520141 |
| 2 | Nipple | 7562119 |
| 2 | Nipple | 7583933 |
| 3 | Gasket | 7507973 |
| 4 | Screw | 8019929 |
| 5 | Valve | 7504897 |
| 6 | Gasket | 92150435 (replaces 8124141) |
| 8 | Switch | 7528425 |
| 8 | Switch | 7528433 |
| 8 | Switch | 7590870 |
| 9 | Screw | 7922891 |
| 9 | Screw | 8059412 |
| 10 | Hose | 9389313 |
| 10 | Hose | 7590789 |
| 11 | Vaccum hose | 9136243 |
| 14 | Bracket | 9392747 |
| 14 | Bracket | 7590680 |
| 15 | Rivet | 7972045 |
| 17 | Expanding nut | 7973456 |
| 18 | EGR-pipe | 7522519 |
| 18 | Tube | 7560246 |
| 18 | EGR-pipe | 7569916 |
| 19 | Nut | 8145559 |
| 20 | Ferrule | 8132235 |
| 21 | Nipple | 8131989 |
| 22 | Protection | 7520042 |
| 28 | Clamp | 7398621 |
