Saab 9000 1985-1989 Engine suspension

Group 2 Engine, section 100

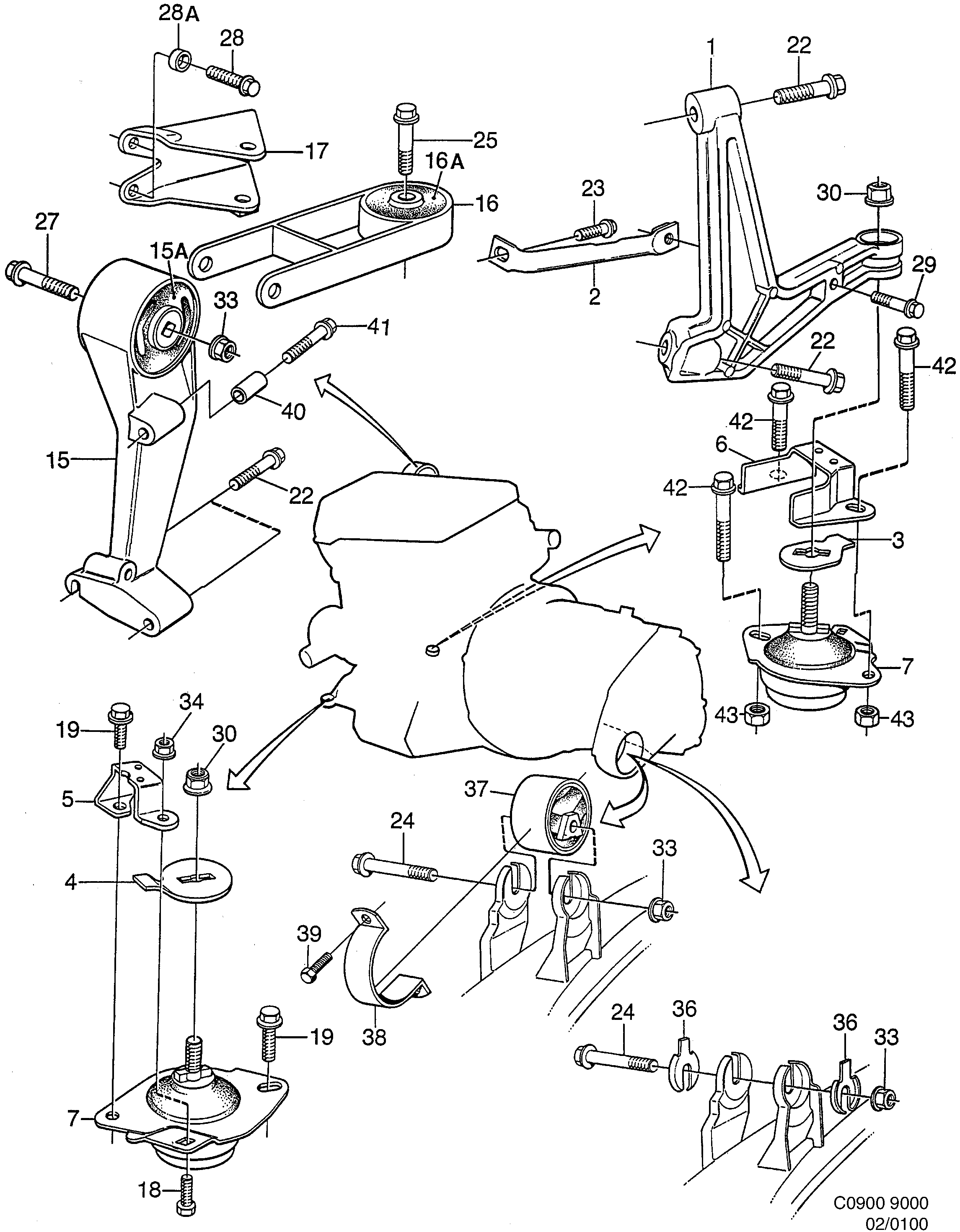

Saab 9000 Engine suspension diagram

Pos	Article	Part No.
1	Bracket	7577695
1	Bracket	7577695 (replaces 7559743)
2	Brace	7550528
3	Limiter	7551971
4	Limiter	7551963
5	Stop, shoulder	7559396
5	Stop, shoulder	4028775
6	Stop, shoulder	7551997
7	Vibration damper	7551104
15	Engine mountings	7577554
15A	Rubber cushion	7576333
16	Torque rod	7554439
16	Torque rod	7599913 (replaces 7576721)
17	Bracket	9383175
17	Bracket	7576283
17	Bracket	8786071
18	Screw	7551385
19	Screw	92152121 (replaces 8130064)
22	Screw	7972292
23	Screw	7973779
24	Screw	7973571
25	Screw	7974777
27	Screw	7977267
28	Screw	8082943
28A	Spacer	7577893
29	Screw	11900368 (replaces 7975527)
30	Nut	92153201 (replaces 7971765)
33	Nut	7975220
34	Nut	11900428 (replaces 7971658)
36	Washer	9319294
37	Vibration damper	4165312 (replaces 7551831)
38	Cap	7551328
39	Screw	7970288
40	Spacer	7536857
41	Screw	8029985 (replaces 7973803)
42	Screw	7974447
43	Lock nut	7969306
