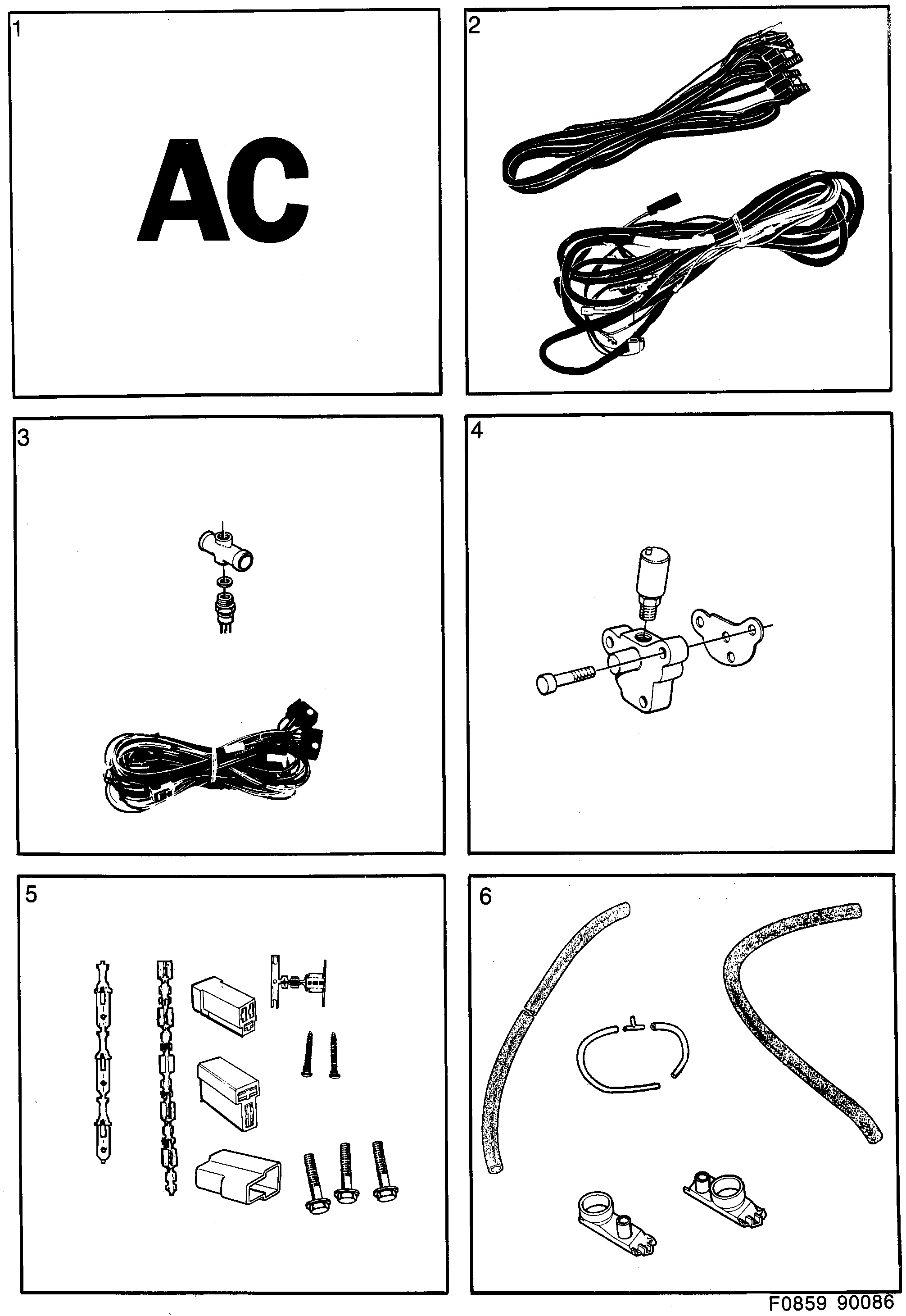

Group 8c Heating and ventilation, section 430
| Pos | Article | Part No. |
|---|---|---|
| 1 | Air conditioning | 8820029 |
| Compressor | 8820987 | |
| Bracket | 9331562 | |
| Bracket | 8821001 | |
| Arm | 8820128 | |
| Pulley | 9330184 | |
| V-belt | 9344623 | |
| Shutter | 8820151 | |
| Evaporator | 8820169 | |
| Condenser | 8820177 | |
| Reservoir | 8820185 | |
| Hose | 8820193 | |
| Hose | 8820201 | |
| Hose | 8820219 | |
| Hose | 8820227 | |
| Cable harness | 8821019 | |
| Cable harness | 8821456 | |
| Screw | 7985930 (replaces 8019903) | |
| Nut | 8151243 (replaces 8029779) | |
| Screw | 8082943 | |
| Screw | 8148223 (replaces 8083164) | |
| Screw | 8083933 | |
| Screw | 9339623 | |
| Screw | 9339615 | |
| Washer | 92153033 (replaces 8029985) | |
| Screw | 7971724 | |
| Vacuum servo | 8821126 | |
| Thermo contact | 8820532 | |
| Screw | 92151805 (replaces 8059230) | |
| Bushing | 9460742 | |
| Screw | 7922461 | |
| Nut | 9465600 | |
| Solenoid valve | 8821142 | |
| Vacuum hose | 9480278 | |
| Vacuum hose | 9480567 | |
| Vacuum hose | 9480666 | |
| Screw | 7922891 | |
| T-pipe | 9480575 | |
| Attaching plate | 8821548 | |
| Screw | 8821555 | |
| Cable terminal | 8821613 | |
| Cable protection | 8821621 | |
| Screw | 8059578 | |
| Screw | 7922420 | |
| Washer | 8029951 | |
| Nut | 8074106 | |
| Clamp | 9461088 | |
| Screw | 55562873 (replaces 8082968) | |
| Clamp | 9464736 | |
| Clamp | 9480898 | |
| Screw | 8019945 | |
| Lock nut | 92150265 (replaces 8073512) | |
| Protecting moulding | 8278558 | |
| Screw | 8019929 | |
| Hose clamp | 7970064 | |
| Solenoid valve | 8820722 | |
| Nipple | 8317828 | |
| Hose | 9339433 | |
| Switch | 8821100 | |
| Spring | 9307935 | |
| Bracket | 9350752 | |
| Screw | 7965361 | |
| Bracket | 9350745 | |
| Lever | 9350760 | |
| Screw | 9308719 | |
| Clamp | 7156409 | |
| Hose clamp | 7970106 | |
| Switch | 4086724 (replaces 8820797) | |
| Screw | 7922735 | |
| Washer | 8029944 | |
| Relay | 8536401 | |
| Relay | 8572190 | |
| Tie strap | 11900513 (replaces 7971880) | |
| Switch | 8568453 | |
| Plug | 9480542 | |
| Switch | 8590671 | |
| Decal | 9449489 | |
| Label | 9479783 | |
| 1 | Air conditioning | 9626771 |
| Screw | 4027660 | |
| Compressor | 4070827 | |
| Connector housing | 7155104 | |
| Clamp | 7155500 | |
| Plug | 7163074 | |
| Clamp | 7398373 | |
| Clamp | 7398530 | |
| Screw | 7399603 | |
| Screw | 4283198 (replaces 7512247) | |
| T-pipe | 7528144 | |
| Hose | 7526338 | |
| Tension pulley | 7542228 | |
| Bracket | 7549439 | |
| Screw | 7900335 | |
| Clip | 7933443 | |
| Lock nut | 7940398 | |
| Clip | 7965809 | |
| Nut | 7967979 | |
| Screw | 7970015 | |
| Tie strap | 7971864 | |
| Rivet | 92153058 (replaces 7972490) | |
| Screw | 7975030 | |
| Hose clamp | 7975543 | |
| Screw | 7977499 (replaces 8019978) | |
| Washer | 8073108 | |
| Washer | 55564926 (replaces 8073249) | |
| Lock nut | 8074270 | |
| Nut | 11900440 (replaces 8074288) | |
| Screw | 8082935 (replaces 8082919) | |
| Screw | 8098089 | |
| Screw | 8098113 | |
| Nut | 8151227 | |
| Seal | 8330268 | |
| Solenoid valve | 8334005 | |
| Fan shroud | 8337859 | |
| Sleeve | 8356859 | |
| Nut | 8566598 | |
| Fan motor | 8582728 | |
| Cable harness | 8590275 | |
| Solenoid valve | 8591117 | |
| Thermo contact | 8593766 | |
| Pipe elbow | 9332826 | |
| V-belt | 9367020 | |
| Lever | 9400896 | |
| Shaft | 9420241 | |
| Vacuum servo | 9420266 | |
| Spring | 9420274 | |
| Bracket | 9420282 | |
| Pivot pin | 9422403 | |
| Dolly plate | 9438250 | |
| Clamp | 9441221 | |
| Reservoir | 9480039 | |
| Label | 9631300 | |
| Vacuum hose | 9480559 | |
| Evaporator | 9480955 | |
| Clamp | 9481128 | |
| Hose | 9481391 | |
| Spacer | 9481441 | |
| Clamp | 9481458 | |
| Tube | 9481466 | |
| Hose | 9481532 | |
| Stay pad | 9481664 | |
| Shutter | 9481680 | |
| Clamp | 7398373 (replaces 9481698) | |
| Clamp | 7398530 (replaces 9481706) | |
| Brace | 9481961 | |
| Vacuum hose | 9482563 | |
| Vacuum hose | 9482571 | |
| Relay | 9513219 | |
| Switch | 9523788 | |
| Switch | 9523846 | |
| Thermo contact | 4086724 (replaces 9526526) | |
| Resistor | 9550468 | |
| 1 | Air conditioning kit | 9698010 |
| Washer | 7060999 | |
| Screw | 7399280 | |
| Switch | 7588270 (replaces 7513815) | |
| Protecting moulding | 7535487 | |
| Arm | 7543556 | |
| Screw | 7543606 | |
| Pin | 7543614 | |
| Nut | 11900429 (replaces 7967953) | |
| Screw | 7970346 | |
| Tie strap | 7971872 | |
| Nut | 92150143 (replaces 7971922) | |
| Rivet | 92153058 (replaces 7972326) | |
| Screw | 30509216 (replaces 7975238) | |
| Washer | 7977440 | |
| Screw | 7977499 | |
| Screw | 8019911 | |
| Nut | 8151227 (replaces 8029555) | |
| Screw | 8083974 | |
| Fan motor | 8594806 | |
| Protecting moulding | 8599565 | |
| Pulley | 4118964 (replaces 9325663) | |
| Bracket | 9365834 | |
| Hose | 9367525 | |
| Condenser | 9401951 | |
| Compressor | 9481979 | |
| Hose | 9482001 | |
| Hose | 9482027 | |
| Tube | 9482035 | |
| Reservoir | 9482068 | |
| Connector housing | 9503418 | |
| Connector housing | 9503426 | |
| Switch | 4086724 (replaces 9552878) | |
| Cable harness | 9554841 | |
| Clip | 9555913 | |
| Cable harness | 9557505 | |
| 1 | Air conditioning kit | 9698028 |
| Washer | 7061328 | |
| Adapter | 7521453 | |
| Bracket | 7543002 | |
| Screw | 55562121 (replaces 7967938) | |
| Stud | 8005928 | |
| Screw | 8308983 | |
| Gasket | 8369647 | |
| Screw | 9345190 | |
| Tension pulley | 9369109 | |
| Hose | 9480773 | |
| Compressor | 9481508 | |
| Hose | 9482019 | |
| 1 | Air conditioning kit | 9698002 |
| 1 | Air conditioning kit | 9698291 |
| Condenser | 4382396 | |
| Screw | 7975444 | |
| Fan unit | 7548191 | |
| Fan shroud | 7548688 | |
| Clamp | 7548936 | |
| Nut | 92150136 (replaces 7973365) | |
| Nut | 92153044 (replaces 7974298) | |
| Fuse | 7974678 | |
| Screw | 8019713 | |
| Vacuum hose | 9420308 | |
| Hose | 9482365 | |
| Guard | 9482399 | |
| Cable harness | 9561655 | |
| 1 | Air conditioning kit | 9698283 |
| Condenser | 4070918 | |
| 2 | Cable harness kit | 8820052 |
| Cable harness | 8821290 | |
| Cable harness | 8821308 | |
| 3 | Cable harness kit | 8820045 |
| Tube | 9345091 | |
| Thermo contact | 4086724 (replaces 8572331) | |
| 4 | Idling speed increase kit | 8821647 |
| 5 | Accessories kit | 9746710 |
| Cable terminal | 7971708 | |
| Cable terminal | 7155724 | |
| Connector housing | 7342892 | |
| Connector housing | 7155096 | |
| Connector housing | 7342900 | |
| Cable terminal | 8503286 | |
| 6 | Defroster jet | 9746249 |
| Throttle body | 9480153 | |
| Throttle body | 9480187 | |
| Hose | 9401332 | |
| Plug | 9480252 | |
| Pipe | 12791937 (replaces 8366791) | |
| Rivet | 7958770 |
